135d
SOLUTION STRUCTURE OF A PURINE(DOT)PURINE(DOT)PYRIMIDINE DNA TRIPLEX CONTAINING G(DOT)GC AND T(DOT)AT TRIPLES

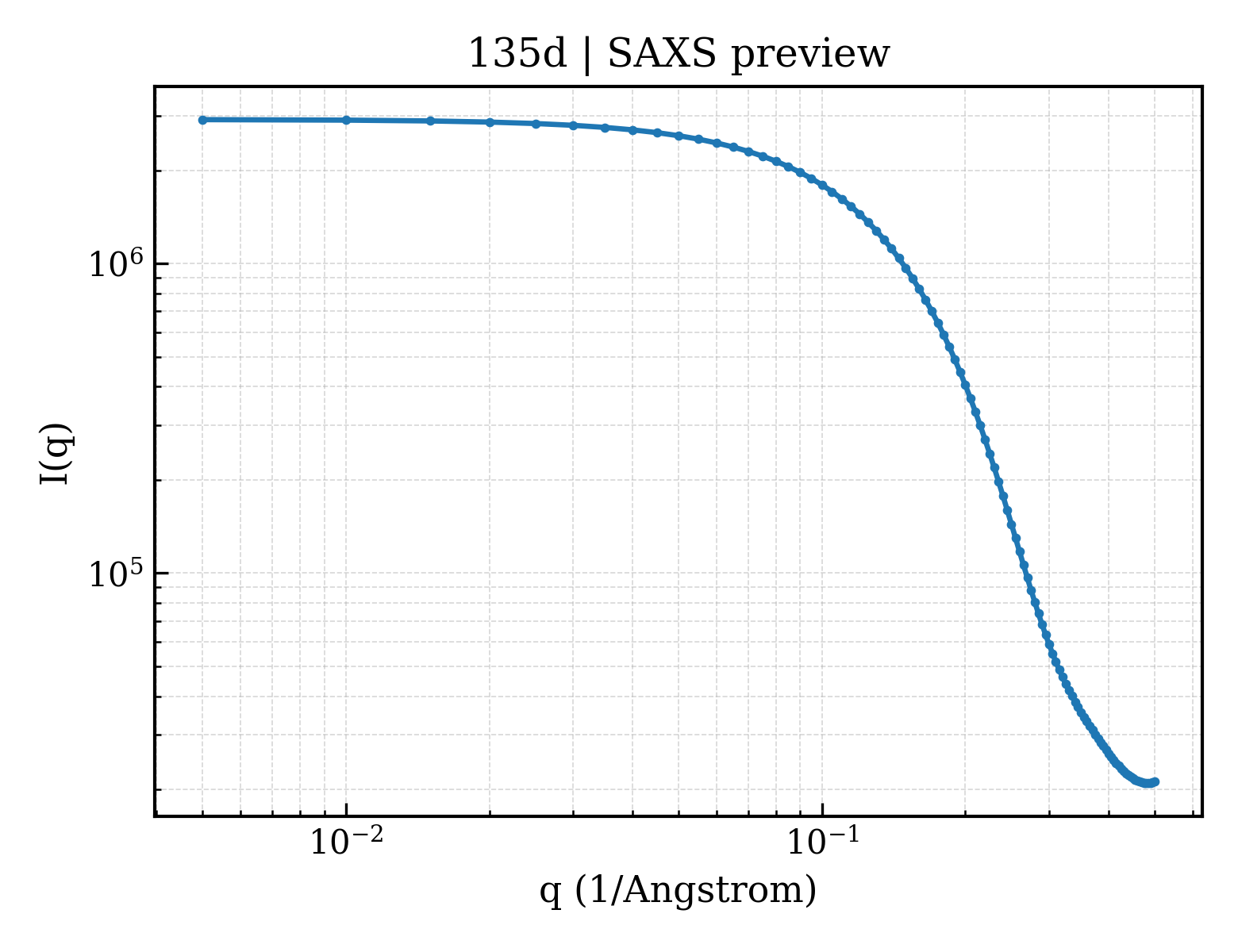

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 135d |
| deposition_date | 1993-08-30 |
| title | SOLUTION STRUCTURE OF A PURINE(DOT)PURINE(DOT)PYRIMIDINE DNA TRIPLEX CONTAINING G(DOT)GC AND T(DOT)AT TRIPLES |
| keywords | DNA, TRIPLEX; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.06 Å |
| rg_electron | 11.41 Å |
| i0 | 2916810.00 |
| molecular_weight | 7605.0 kDa |
| excluded_volume | 7482 ų |
| envelope_volume | 9430 ų |
| shell_volume | 7520 ų |
| envelope_diameter | 38.5 Å |
| shell_rg | 16.11 Å |
| envelope_rg | 11.57 Å |
| shape_rg | 11.25 Å |
| total_rg | 12.43 Å |
| total_atoms | 797 |
| n_residues | 25 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.3 Å |
| rg_real | 12.02 Å |
| rg_real_error | 0.22 Å |
| i0_real | 2.9170e+06 |
| i0_real_error | 3.0590e+04 |
| rg_reciprocal | 12.02 Å |
| i0_reciprocal | 2917000.0000 |
| total_estimate | 0.8901 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 13.9 Å |
| skewness | 0.256 |
| kurtosis | -0.316 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 309900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.979 |
