158d
CRYSTALLOGRAPHIC ANALYSIS OF C-C-A-A-G-C-T-T-G-G AND ITS IMPLICATIONS FOR BENDING IN B-DNA

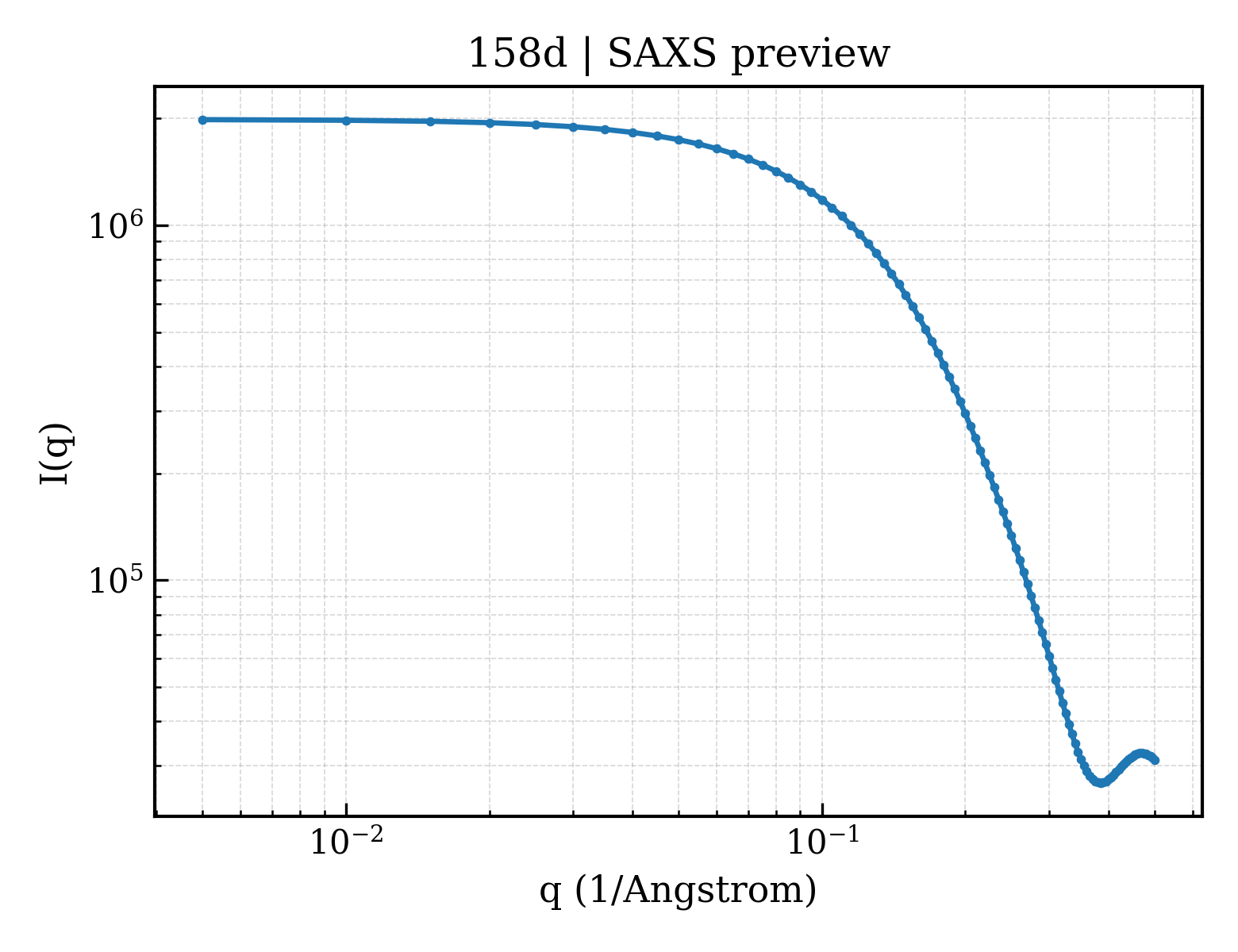

SAXS Profile

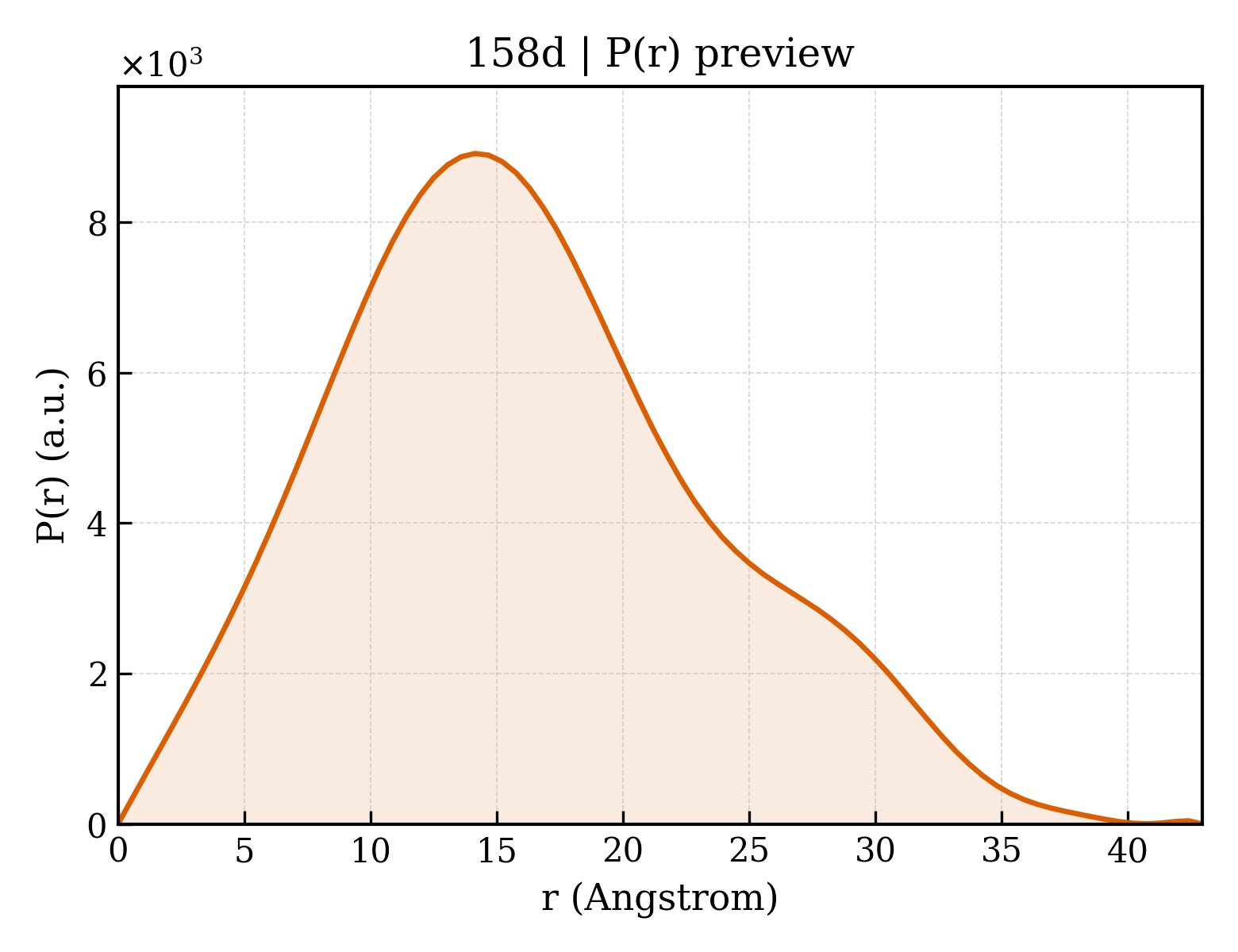

P(r) Distribution
1. Structure Basics
| entry_id | 158d |
| deposition_date | 1994-02-03 |
| title | CRYSTALLOGRAPHIC ANALYSIS OF C-C-A-A-G-C-T-T-G-G AND ITS IMPLICATIONS FOR BENDING IN B-DNA |
| keywords | B-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.54 Å |
| rg_electron | 11.95 Å |
| i0 | 1987370.00 |
| molecular_weight | 6152.0 kDa |
| excluded_volume | 5998 ų |
| envelope_volume | 8083 ų |
| shell_volume | 6484 ų |
| envelope_diameter | 41.5 Å |
| shell_rg | 15.99 Å |
| envelope_rg | 12.15 Å |
| shape_rg | 11.80 Å |
| total_rg | 12.86 Å |
| total_atoms | 406 |
| n_residues | 20 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.0 Å |
| rg_real | 12.57 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.9870e+06 |
| i0_real_error | 2.2900e+04 |
| rg_reciprocal | 12.57 Å |
| i0_reciprocal | 1987000.0000 |
| total_estimate | 0.8590 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.1 Å |
| skewness | 0.404 |
| kurtosis | -0.288 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 118100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.765; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.916; Smooth: 0.951 |
