179d
SOLUTION STRUCTURE OF THE D(T-C-G-A) DUPLEX AT ACIDIC PH: A PARALLEL-STRANDED HELIX CONTAINING C+.C, G.G AND A.A PAIRS

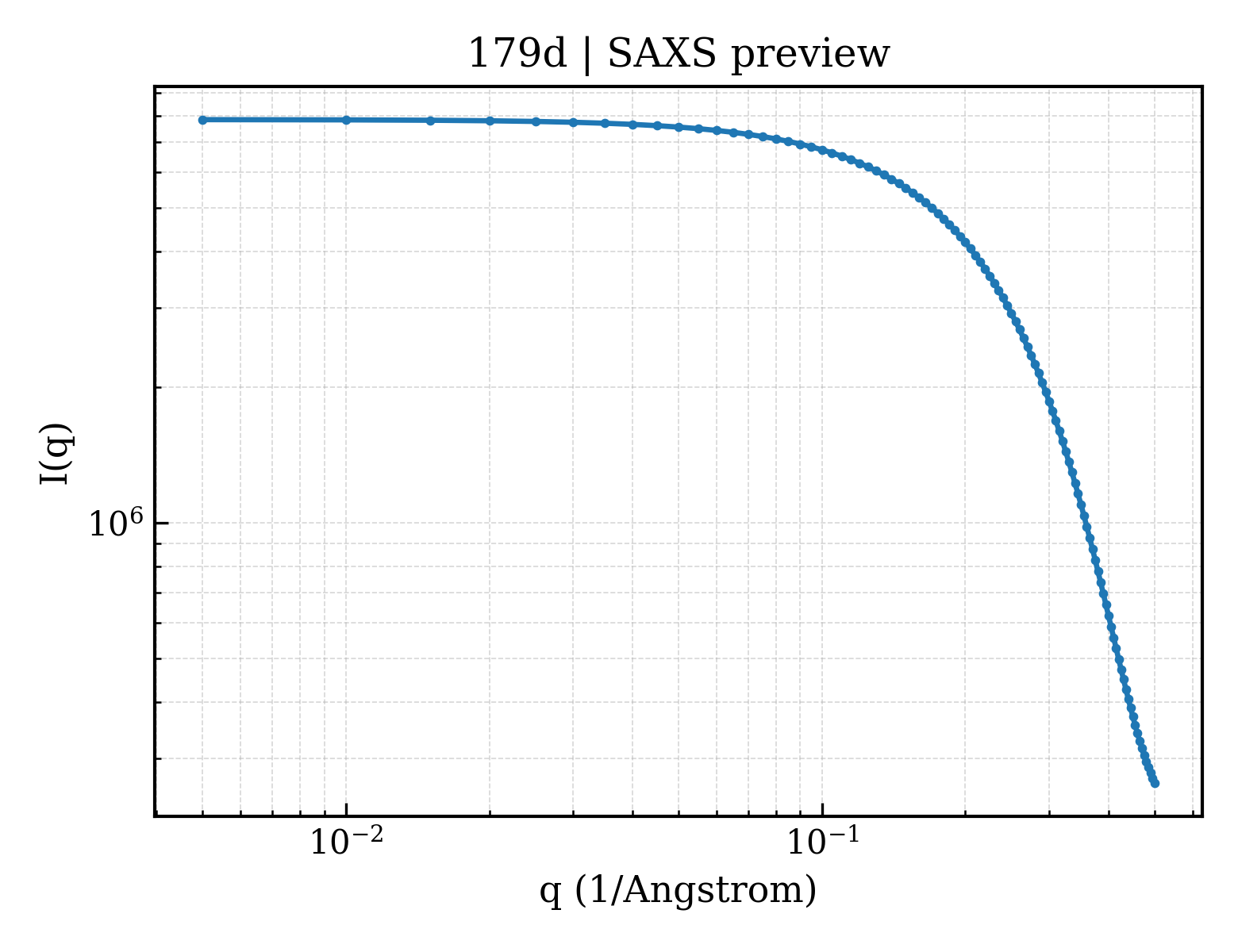

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 179d |
| deposition_date | 1994-06-15 |
| title | SOLUTION STRUCTURE OF THE D(T-C-G-A) DUPLEX AT ACIDIC PH: A PARALLEL-STRANDED HELIX CONTAINING C+.C, G.G AND A.A PAIRS |
| keywords | DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.83 Å |
| rg_electron | 6.78 Å |
| i0 | 7858910.00 |
| molecular_weight | 14110.0 kDa |
| excluded_volume | 13985 ų |
| envelope_volume | 2780 ų |
| shell_volume | 3797 ų |
| envelope_diameter | 20.9 Å |
| shell_rg | 11.41 Å |
| envelope_rg | 7.33 Å |
| shape_rg | 6.65 Å |
| total_rg | 7.28 Å |
| total_atoms | 1518 |
| n_residues | 48 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 22.7 Å |
| rg_real | 6.79 Å |
| rg_real_error | 0.26 Å |
| i0_real | 7.8590e+06 |
| i0_real_error | 6.8880e+04 |
| rg_reciprocal | 6.79 Å |
| i0_reciprocal | 7859000.0000 |
| total_estimate | 0.8863 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 21.2 Å |
| skewness | 0.095 |
| kurtosis | -0.499 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3791.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.889; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.862 |
