17ra
BRANCHPOINT HELIX FROM YEAST AND BINDING SITE FOR PHAGE GA/MS2 COAT PROTEINS, NMR, 12 STRUCTURES
SAXS Profile

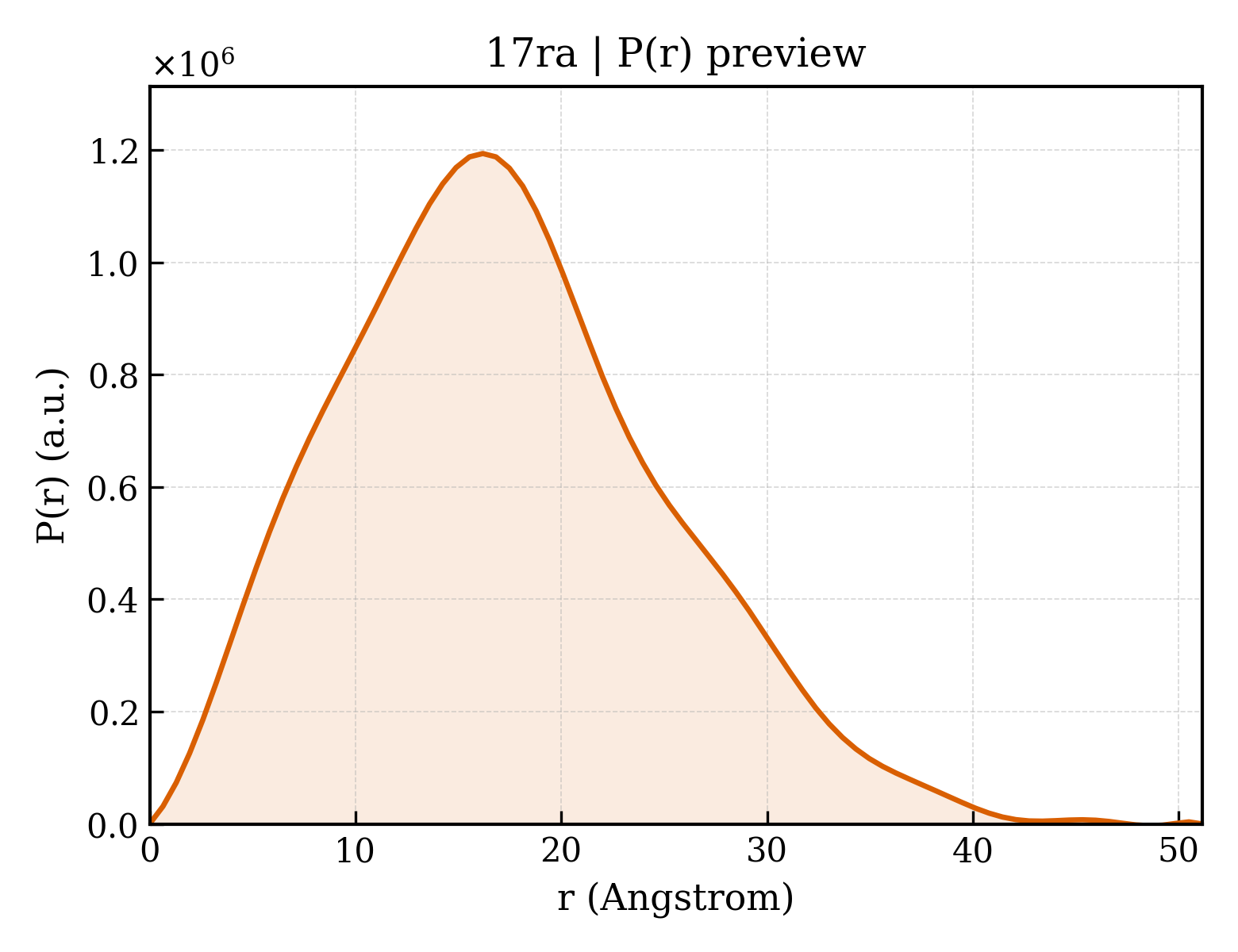

P(r) Distribution
1. Structure Basics
| entry_id | 17ra |
| deposition_date | 1998-08-04 |
| title | BRANCHPOINT HELIX FROM YEAST AND BINDING SITE FOR PHAGE GA/MS2 COAT PROTEINS, NMR, 12 STRUCTURES |
| keywords | BRANCHPOINT HELIX, PHAGE MS2, BULGE, BASE TRIPLE, RIBONUCLEIC ACID, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.32 Å |
| rg_electron | 13.30 Å |
| i0 | 284407000.00 |
| molecular_weight | 80775.0 kDa |
| excluded_volume | 75706 ų |
| envelope_volume | 17419 ų |
| shell_volume | 10573 ų |
| envelope_diameter | 55.4 Å |
| shell_rg | 19.66 Å |
| envelope_rg | 15.23 Å |
| shape_rg | 13.18 Å |
| total_rg | 13.63 Å |
| total_atoms | 8076 |
| n_residues | 252 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.1 Å |
| rg_real | 13.36 Å |
| rg_real_error | 0.56 Å |
| i0_real | 2.8440e+08 |
| i0_real_error | 3.8790e+06 |
| rg_reciprocal | 13.36 Å |
| i0_reciprocal | 284400000.0000 |
| total_estimate | 0.7246 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 16.2 Å |
| skewness | 0.406 |
| kurtosis | -0.144 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 111100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.567; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.716; Smooth: 0.000 |
