187d
HYDRATION PATTERNS AND INTERMOLECULAR INTERACTIONS IN A-DNA CRYSTAL STRUCTURES. IMPLICATIONS FOR DNA RECOGNITION
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 187d |
| deposition_date | 1994-09-02 |
| title | HYDRATION PATTERNS AND INTERMOLECULAR INTERACTIONS IN A-DNA CRYSTAL STRUCTURES. IMPLICATIONS FOR DNA RECOGNITION |
| keywords | A-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.71 Å |
| rg_electron | 10.28 Å |
| i0 | 372712.00 |
| molecular_weight | 2418.0 kDa |
| excluded_volume | 2321 ų |
| envelope_volume | 3374 ų |
| shell_volume | 3516 ų |
| envelope_diameter | 32.8 Å |
| shell_rg | 13.52 Å |
| envelope_rg | 10.18 Å |
| shape_rg | 10.19 Å |
| total_rg | 11.16 Å |
| total_atoms | 161 |
| n_residues | 8 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

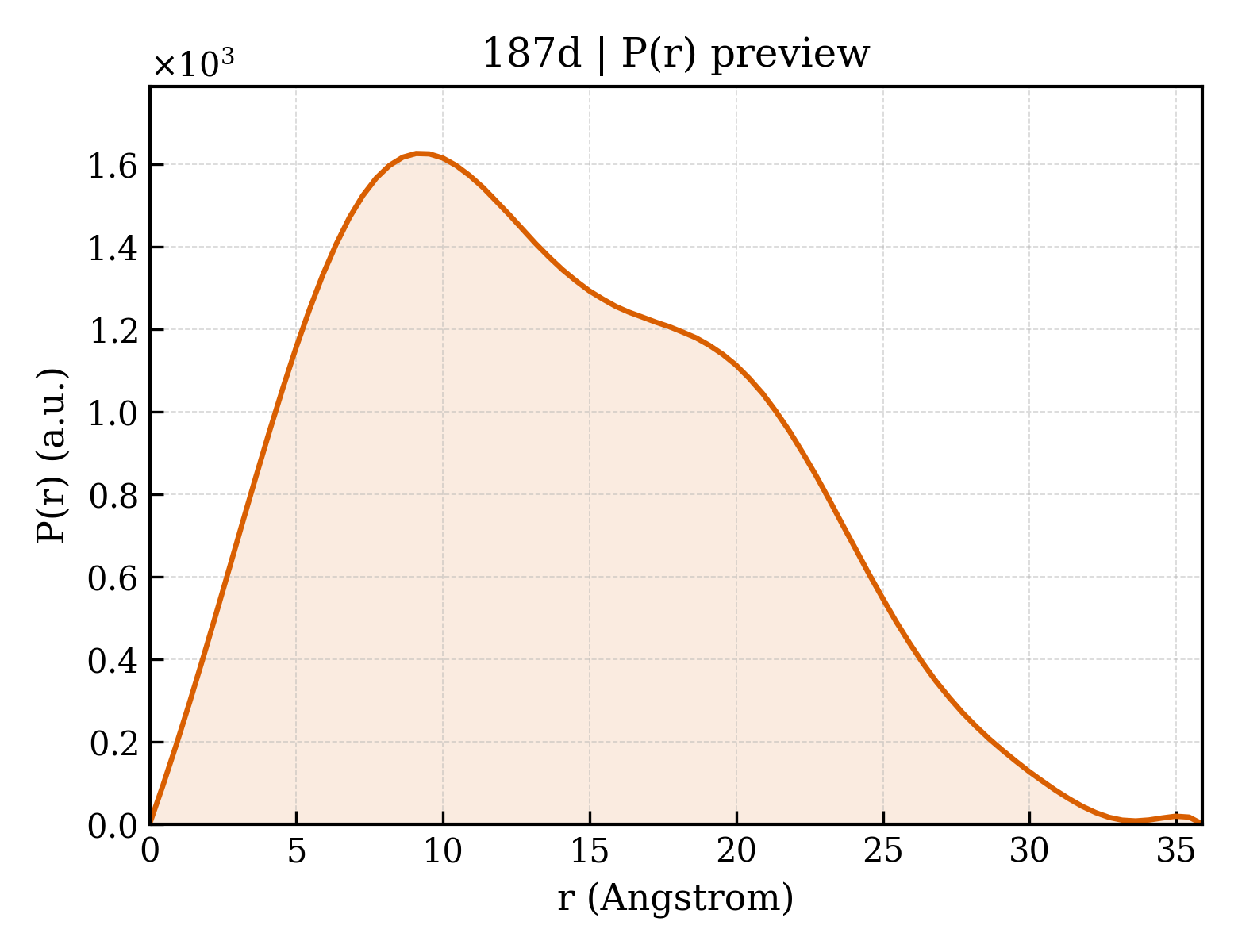

3. P(r) Analysis (GNOM)
| dmax | 35.9 Å |
| rg_real | 10.80 Å |
| rg_real_error | 0.27 Å |
| i0_real | 3.7270e+05 |
| i0_real_error | 3.5700e+03 |
| rg_reciprocal | 10.79 Å |
| i0_reciprocal | 372700.0000 |
| total_estimate | 0.8576 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.1 Å |
| skewness | 0.328 |
| kurtosis | -0.657 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.878; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.559; Smooth: 0.951 |
