188d
HYDRATION PATTERNS AND INTERMOLECULAR INTERACTIONS IN A-DNA CRYSTAL STRUCTURES. IMPLICATIONS FOR DNA RECOGNITION
SAXS Profile

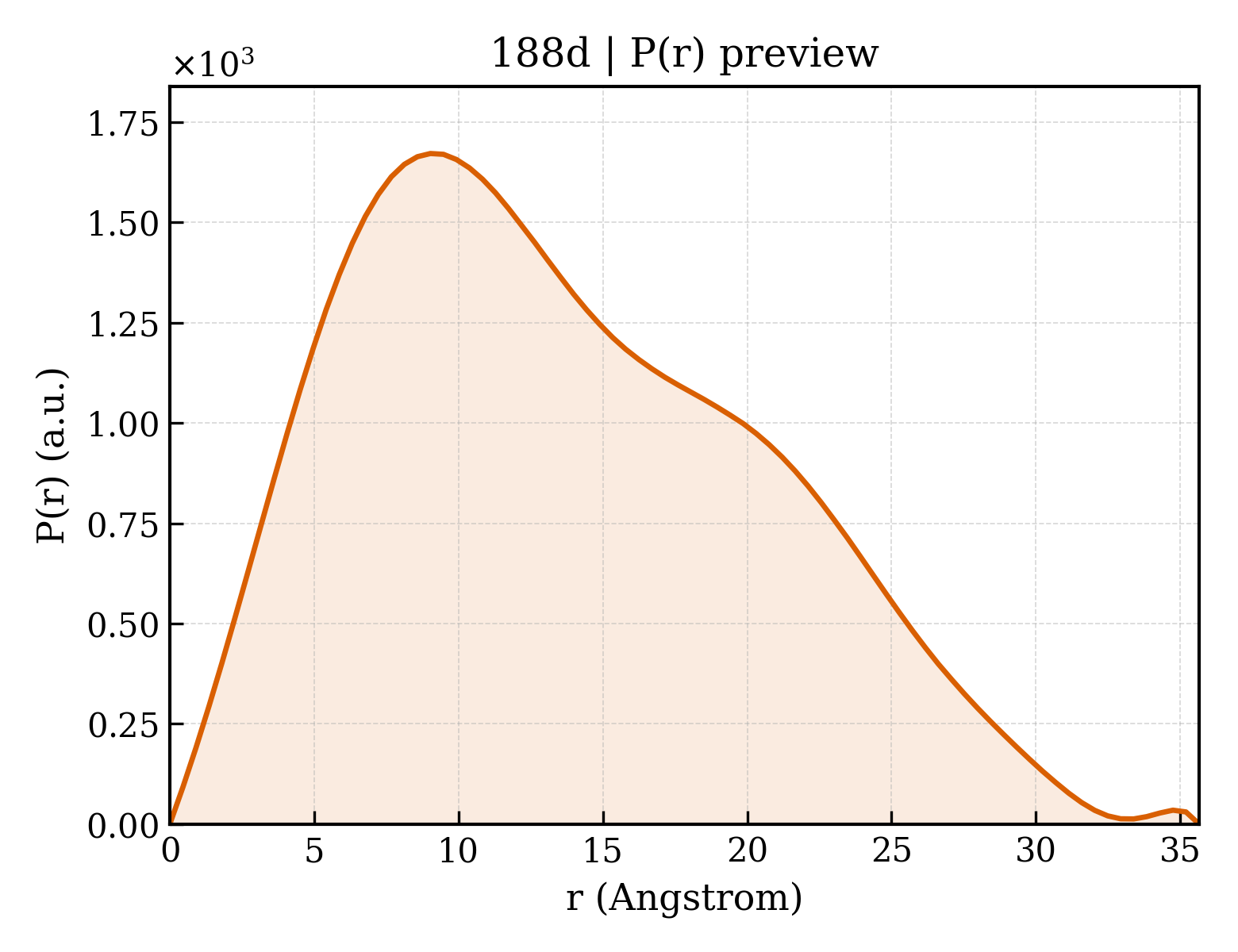

P(r) Distribution
1. Structure Basics
| entry_id | 188d |
| deposition_date | 1994-09-02 |
| title | HYDRATION PATTERNS AND INTERMOLECULAR INTERACTIONS IN A-DNA CRYSTAL STRUCTURES. IMPLICATIONS FOR DNA RECOGNITION |
| keywords | A-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.63 Å |
| rg_electron | 10.21 Å |
| i0 | 368525.00 |
| molecular_weight | 2418.0 kDa |
| excluded_volume | 2321 ų |
| envelope_volume | 3222 ų |
| shell_volume | 3380 ų |
| envelope_diameter | 33.3 Å |
| shell_rg | 13.46 Å |
| envelope_rg | 10.31 Å |
| shape_rg | 10.11 Å |
| total_rg | 11.09 Å |
| total_atoms | 161 |
| n_residues | 8 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.6 Å |
| rg_real | 10.75 Å |
| rg_real_error | 0.30 Å |
| i0_real | 3.6850e+05 |
| i0_real_error | 3.7800e+03 |
| rg_reciprocal | 10.74 Å |
| i0_reciprocal | 368500.0000 |
| total_estimate | 0.8361 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.0 Å |
| skewness | 0.412 |
| kurtosis | -0.590 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9881.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.474; Smooth: 0.851 |
