193d
SOLUTION STRUCTURE OF A QUINOMYCIN BISINTERCALATOR-DNA COMPLEX
SAXS Profile

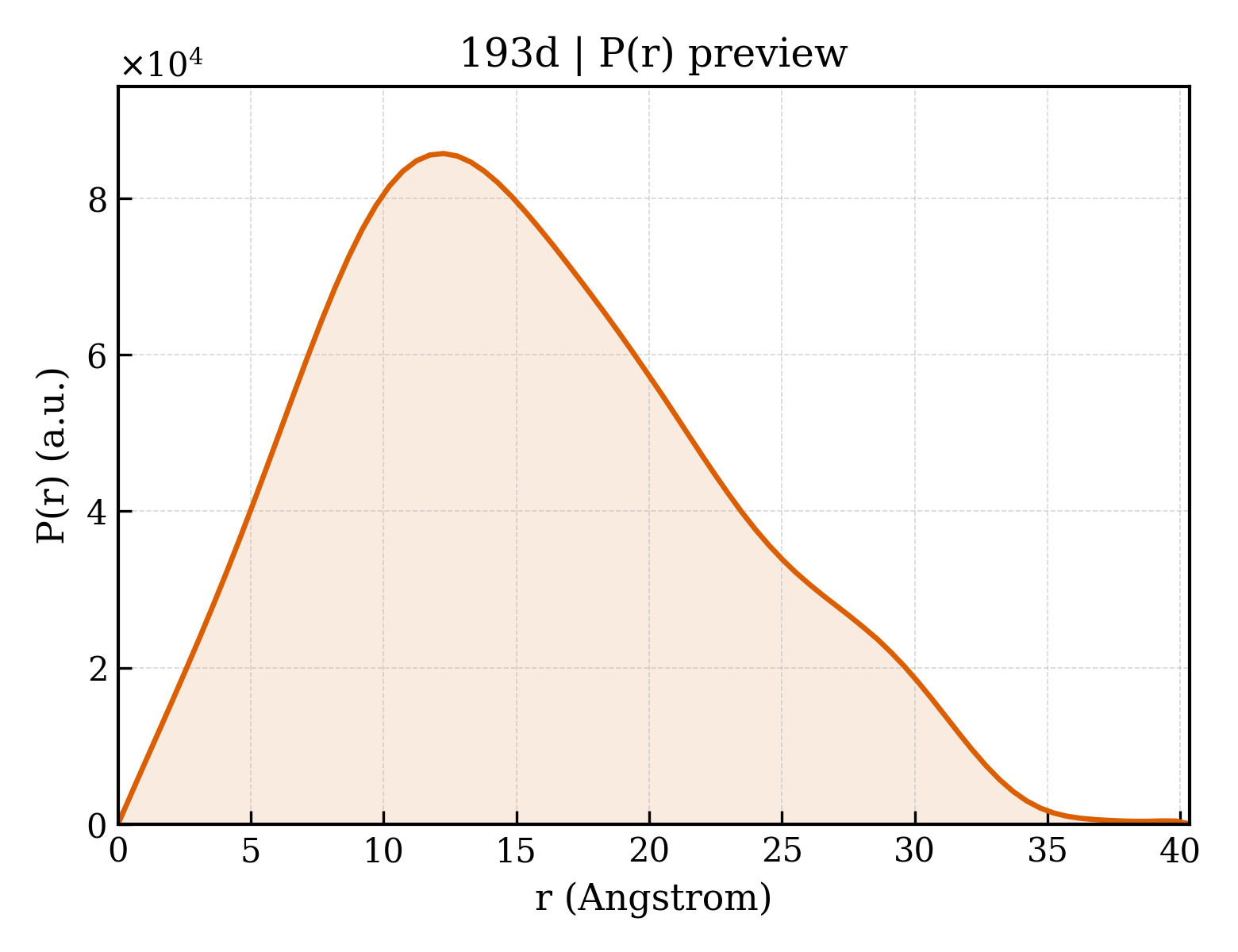

P(r) Distribution
1. Structure Basics
| entry_id | 193d |
| deposition_date | 1994-09-30 |
| title | SOLUTION STRUCTURE OF A QUINOMYCIN BISINTERCALATOR-DNA COMPLEX |
| keywords | BISINTERCALATOR, DEPSIPEPTIDE, QUINOXALINE, THIOACETAL, ANTIBIOTIC, ANTITUMOR, DNA-ANTIBIOTIC COMPLEX; DNA/ANTIBIOTIC |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.90 Å |
| rg_electron | 11.54 Å |
| i0 | 19812000.00 |
| molecular_weight | 24043.0 kDa |
| excluded_volume | 24950 ų |
| envelope_volume | 9149 ų |
| shell_volume | 7108 ų |
| envelope_diameter | 41.0 Å |
| shell_rg | 16.64 Å |
| envelope_rg | 12.56 Å |
| shape_rg | 11.41 Å |
| total_rg | 12.08 Å |
| total_atoms | 2624 |
| n_residues | 72 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.3 Å |
| rg_real | 11.96 Å |
| rg_real_error | 0.31 Å |
| i0_real | 1.9810e+07 |
| i0_real_error | 2.1160e+05 |
| rg_reciprocal | 11.96 Å |
| i0_reciprocal | 19810000.0000 |
| total_estimate | 0.8787 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.3 Å |
| skewness | 0.382 |
| kurtosis | -0.456 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 48120.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.876; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.796; Smooth: 0.999 |
