194d
X-RAY STRUCTURES OF THE B-DNA DODECAMER D(CGCGTTAACGCG) WITH AN INVERTED CENTRAL TETRANUCLEOTIDE AND ITS NETROPSIN COMPLEX

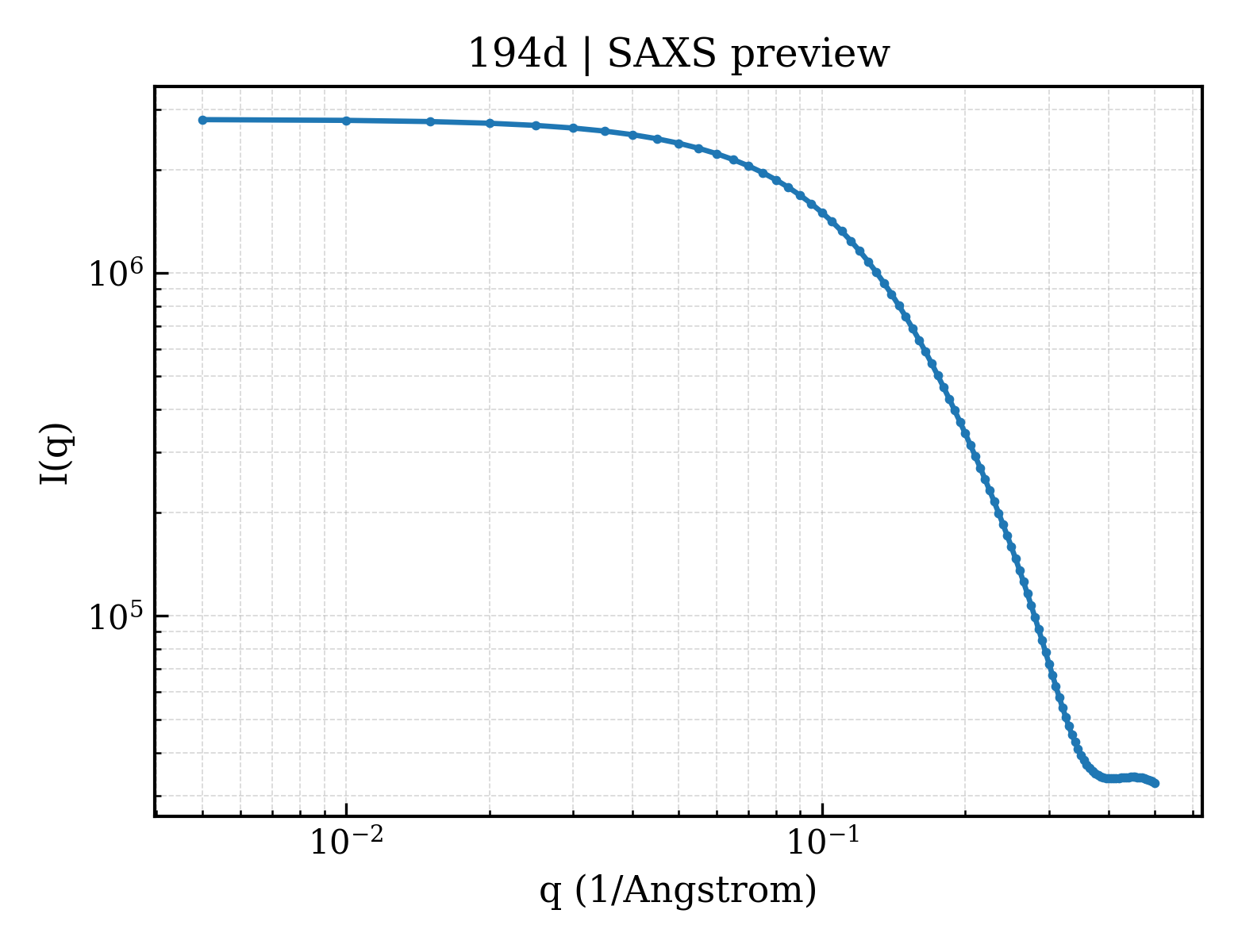

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 194d |
| deposition_date | 1994-10-04 |
| title | X-RAY STRUCTURES OF THE B-DNA DODECAMER D(CGCGTTAACGCG) WITH AN INVERTED CENTRAL TETRANUCLEOTIDE AND ITS NETROPSIN COMPLEX |
| keywords | B-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.81 Å |
| rg_electron | 13.38 Å |
| i0 | 2800080.00 |
| molecular_weight | 7313.0 kDa |
| excluded_volume | 7070 ų |
| envelope_volume | 9937 ų |
| shell_volume | 7206 ų |
| envelope_diameter | 45.7 Å |
| shell_rg | 17.04 Å |
| envelope_rg | 13.56 Å |
| shape_rg | 13.28 Å |
| total_rg | 14.10 Å |
| total_atoms | 486 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.4 Å |
| rg_real | 13.90 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.8000e+06 |
| i0_real_error | 2.8610e+04 |
| rg_reciprocal | 13.89 Å |
| i0_reciprocal | 2800000.0000 |
| total_estimate | 0.8593 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.4 Å |
| skewness | 0.474 |
| kurtosis | -0.265 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 187300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.786; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.819; Smooth: 0.990 |
