14-3-3 PROTEIN ZETA BOUND TO PS-RAF259 PEPTIDE

Method: X-RAY DIFFRACTION D_max: 80.5 Å Quality: EXCELLENT

SAXS Profile

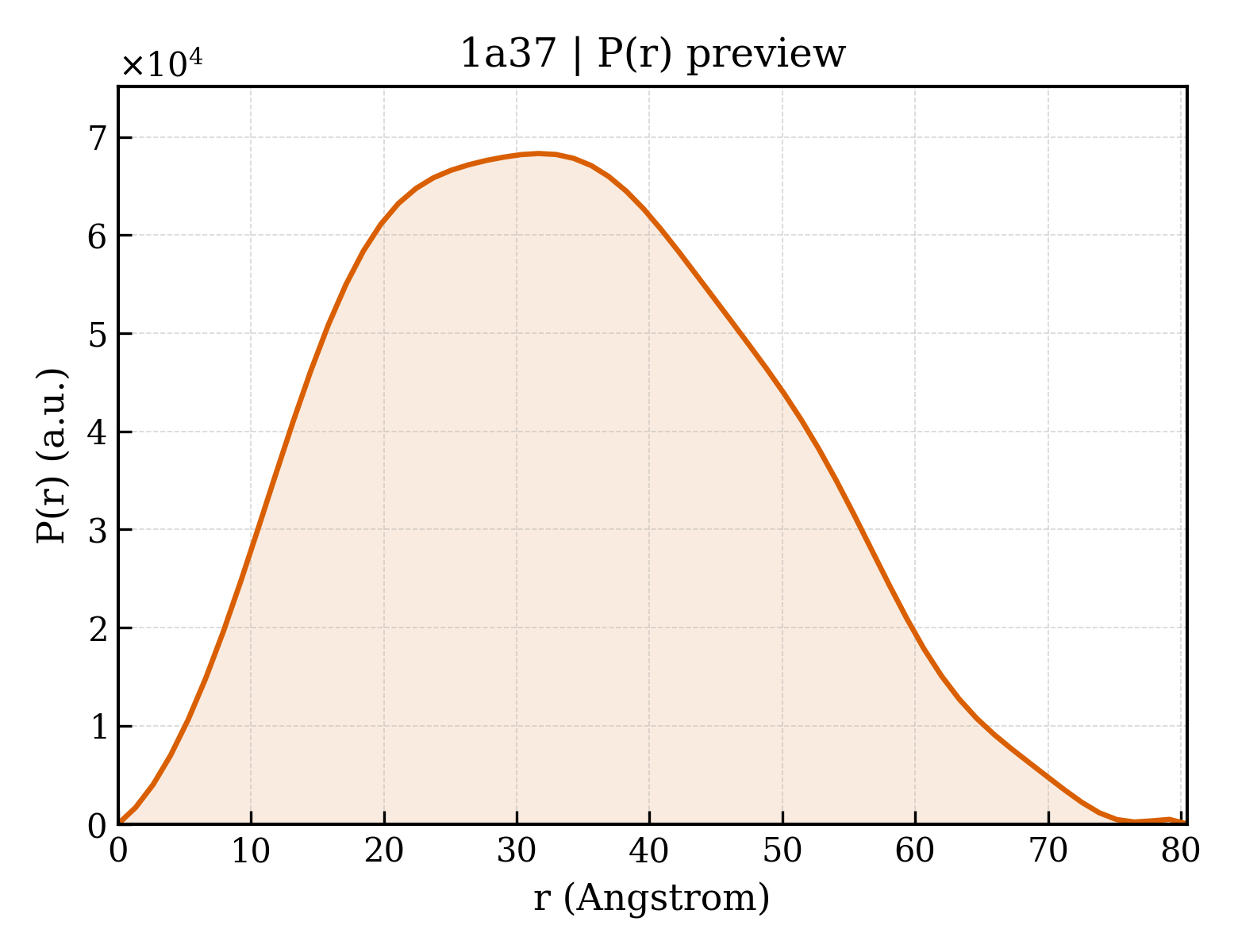

P(r) Distribution

▼

1. Structure Basics

entry_id	1a37
deposition_date	1998-01-28
title	14-3-3 PROTEIN ZETA BOUND TO PS-RAF259 PEPTIDE
keywords	SIGNAL TRANSDUCTION, COMPLEX (SIGNAL TRANSDUCTION-PEPTIDE), COMPLEX (SIGNAL TRANSDUCTION-PEPTIDE) complex; COMPLEX (SIGNAL TRANSDUCTION/PEPTIDE)
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.05 Å
rg_electron	25.43 Å
i0	36249200.00
molecular_weight	45557.0 kDa
excluded_volume	56675 Å³
envelope_volume	73528 Å³
shell_volume	24233 Å³
envelope_diameter	83.4 Å
shell_rg	32.42 Å
envelope_rg	25.14 Å
shape_rg	25.44 Å
total_rg	26.20 Å
total_atoms	3194
n_residues	402
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.5 Å
rg_real	26.01 Å
rg_real_error	0.48 Å
i0_real	3.6250e+07
i0_real_error	4.9330e+05
rg_reciprocal	26.03 Å
i0_reciprocal	36250000.0000
total_estimate	0.9120
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	31.7 Å
skewness	0.222
kurtosis	-0.617
angular_range	— – 0.3050 Å⁻¹
current_alpha	0.0000
highest_alpha	7838000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.971; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.952

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (2)

▶

length_a	94.730 Å
length_b	94.730 Å
length_c	250.870 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

space_group	P 65
int_tables_number	170
crystal_system	—

resolution	3.600 Å
resolution_low	20.000 Å
r_factor	0.3200
r_work	0.3200
r_free	0.3600

description	14-3-3 PROTEIN ZETA
formula_weight	27777.1 kDa
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	3194

14-3-3 PROTEIN ZETA BOUND TO PS-RAF259 PEPTIDE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 polymer

Polymer

6. Citations (2)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Bos taurus
common_name	cattle
ncbi_taxonomy_id	9913
host_organism	Escherichia coli

description	PS-RAF259 PEPTIDE LSQRQRST(SEP)TPNVHM
formula_weight	1841.0 kDa
src_method	man
entity_count	2

fit	/app/data/saxs_computation/a3/1a37/1a37.fit
pddf	/app/data/pr_computation/a3/1a37/1a37.pr.out
profile	/app/data/saxs_computation/a3/1a37/1a37.dat
