1a3i
X-RAY CRYSTALLOGRAPHIC DETERMINATION OF A COLLAGEN-LIKE PEPTIDE WITH THE REPEATING SEQUENCE (PRO-PRO-GLY)

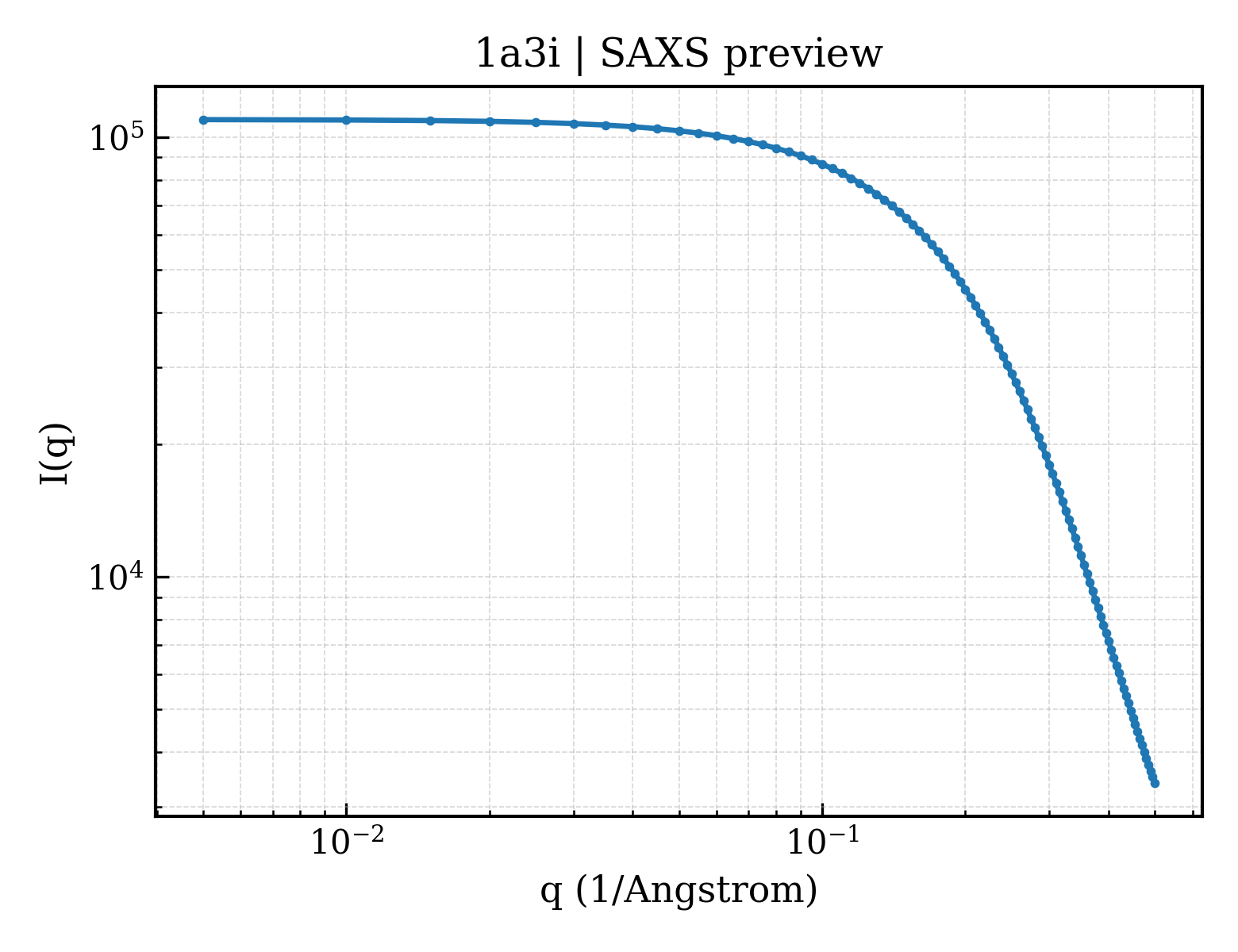

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a3i |
| deposition_date | 1998-01-22 |
| title | X-RAY CRYSTALLOGRAPHIC DETERMINATION OF A COLLAGEN-LIKE PEPTIDE WITH THE REPEATING SEQUENCE (PRO-PRO-GLY) |
| keywords | COLLAGEN, EXTRACELLULAR MATRIX; EXTRACELLULAR MATRIX |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.35 Å |
| rg_electron | 7.36 Å |
| i0 | 109751.00 |
| molecular_weight | 1882.0 kDa |
| excluded_volume | 2391 ų |
| envelope_volume | 2480 ų |
| shell_volume | 3441 ų |
| envelope_diameter | 28.7 Å |
| shell_rg | 11.29 Å |
| envelope_rg | 7.87 Å |
| shape_rg | 7.33 Å |
| total_rg | 9.11 Å |
| total_atoms | 134 |
| n_residues | 21 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

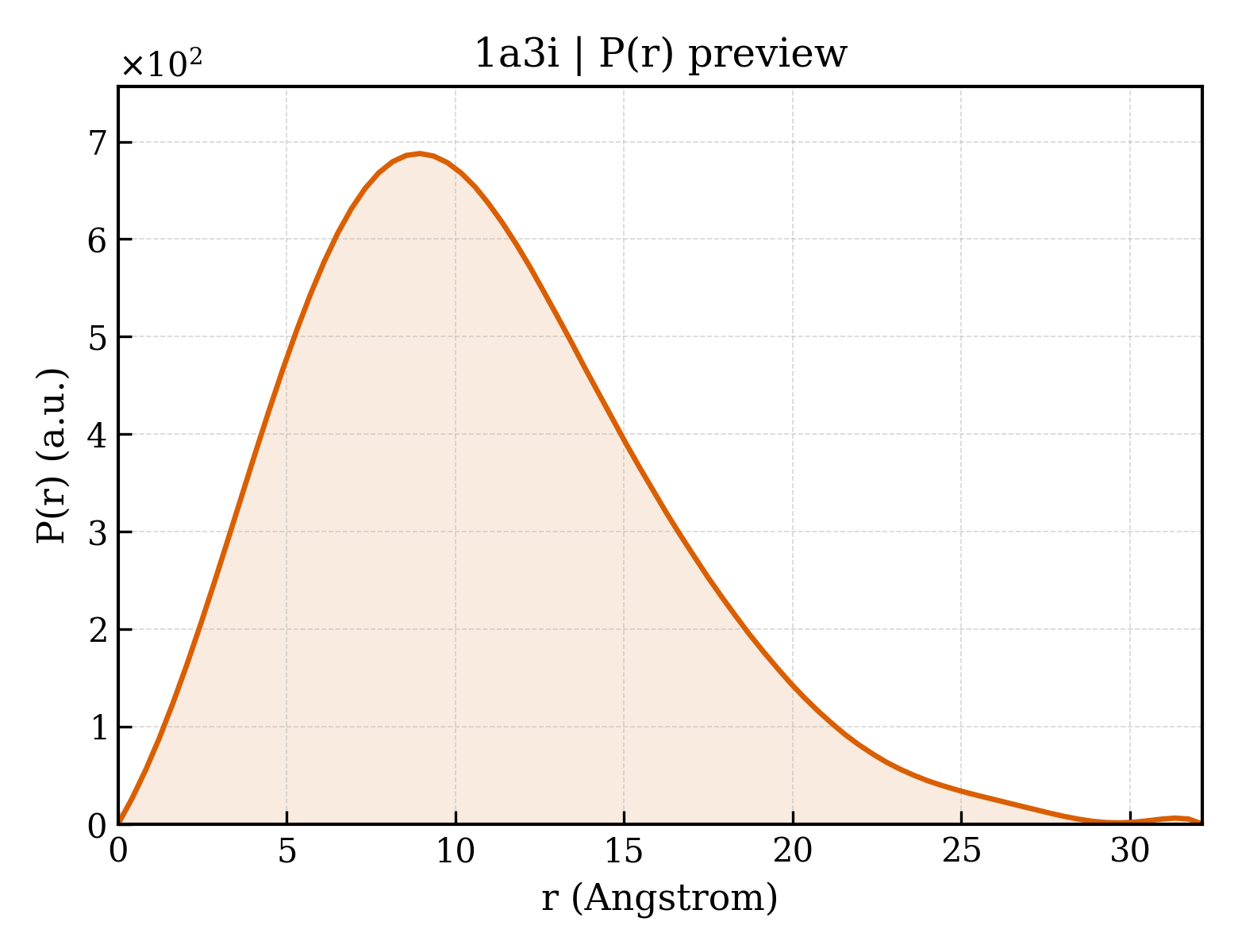

3. P(r) Analysis (GNOM)
| dmax | 32.1 Å |
| rg_real | 8.42 Å |
| rg_real_error | 0.42 Å |
| i0_real | 1.0980e+05 |
| i0_real_error | 1.1080e+03 |
| rg_reciprocal | 8.42 Å |
| i0_reciprocal | 109800.0000 |
| total_estimate | 0.7929 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 8.9 Å |
| skewness | 0.578 |
| kurtosis | 0.145 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6919.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.620; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.477; Smooth: 0.968 |
