SAXSdb — 1a40

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHATE-BINDING PERIPLASMIC PROTEIN PRECURSOR

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 26–346	Mutation：A197W	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.5；pH 4.5	Resolution 1.70 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A40	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A55 PHOSPHATE-BINDING PROTEIN MUTANT A197C Deposited 1998-02-19	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：A197C	2HP DIHYDROGENPHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 2.40 Å R-free 0.227
1IXG PHOSPHATE-BINDING PROTEIN MUTANT WITH THR 141 REPLACED BY ASP (T141D), COMPLEXED WITH PHOSPATE Deposited 1996-08-01	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：T141D	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 1.05 Å R-free 0.139
1IXH PHOSPHATE-BINDING PROTEIN (PBP) COMPLEXED WITH PHOSPHATE Deposited 1996-08-01	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；pH 4.5	Resolution 0.98 Å R-free 0.141
1IXI PHOSPHATE-BINDING PROTEIN MUTANT WITH ASP 56 REPLACED BY ASN COMPLEX WITH MONOBASIC PHOSPHATE ION Deposited 1996-10-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：D56N	2HP DIHYDROGENPHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 1.89 Å R-free 0.294
1OIB PHOSPHATE-BINDING PROTEIN MUTANT T141D Deposited 1995-11-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：T141D	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
1OIB PHOSPHATE-BINDING PROTEIN MUTANT T141D Deposited 1995-11-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 26–346（321 aa）	Mutation：T141D	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.40 Å
1PBP FINE TUNING OF THE SPECIFICITY OF THE PERIPLASMIC PHOSPHATE TRANSPORT RECEPTOR: SITE-DIRECTED MUTAGENESIS, LIGAND BINDING, AND CRYSTALLOGRAPHIC STUDIES Deposited 1994-07-20	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
1QUI PHOSPHATE-BINDING PROTEIN MUTANT WITH ASP 137 REPLACED BY GLY COMPLEX WITH BROMINE AND PHOSPHATE Deposited 1995-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：D137G	BR BROMIDE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.218
1QUJ PHOSPHATE-BINDING PROTEIN MUTANT WITH ASP 137 REPLACED BY GLY COMPLEX WITH CHLORINE AND PHOSPHATE Deposited 1995-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：D137G	CL CHLORIDE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.209
1QUK PHOSPHATE-BINDING PROTEIN MUTANT WITH ASP 137 REPLACED BY ASN COMPLEX WITH PHOSPHATE Deposited 1995-11-11	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：D137N	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å R-free 0.189
1QUL PHOSPHATE-BINDING PROTEIN MUTANT WITH ASP 137 REPLACED BY THR COMPLEX WITH CHLORINE AND PHOSPHATE Deposited 1995-11-11	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Mutation：D137T	PO4 PHOSPHATE ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å R-free 0.205
2ABH PHOSPHATE-BINDING PROTEIN (RE-REFINED) Deposited 1995-11-28	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–346（321 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PSTS_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–321； UniProt 26–346

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a40
Deposition date deposition_date	1998-02-10
Structure title title	PHOSPHATE-BINDING PROTEIN WITH ALA 197 REPLACED WITH TRP
Keywords keywords	PHOSPHATE-BINDING PROTEIN, MUTAGENESIS, CHARGE COMPLEMENTARY, KINETICS; PHOSPHATE-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.79 Å
Radius of gyration Rg (electron density) rg_electron	19.93 Å
Forward intensity I(0) i0	19807400.00
Molecular weight molecular_weight	34615.0 kDa
Excluded volume excluded_volume	43627 Å³
Envelope volume envelope_volume	48876 Å³
Hydration-shell volume shell_volume	20644 Å³
Envelope diameter envelope_diameter	72.6 Å
Shell Rg shell_rg	26.31 Å
Envelope Rg envelope_rg	20.31 Å
Shape Rg shape_rg	19.87 Å
Total Rg total_rg	20.97 Å
Total atoms total_atoms	2451
Residues n_residues	321
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

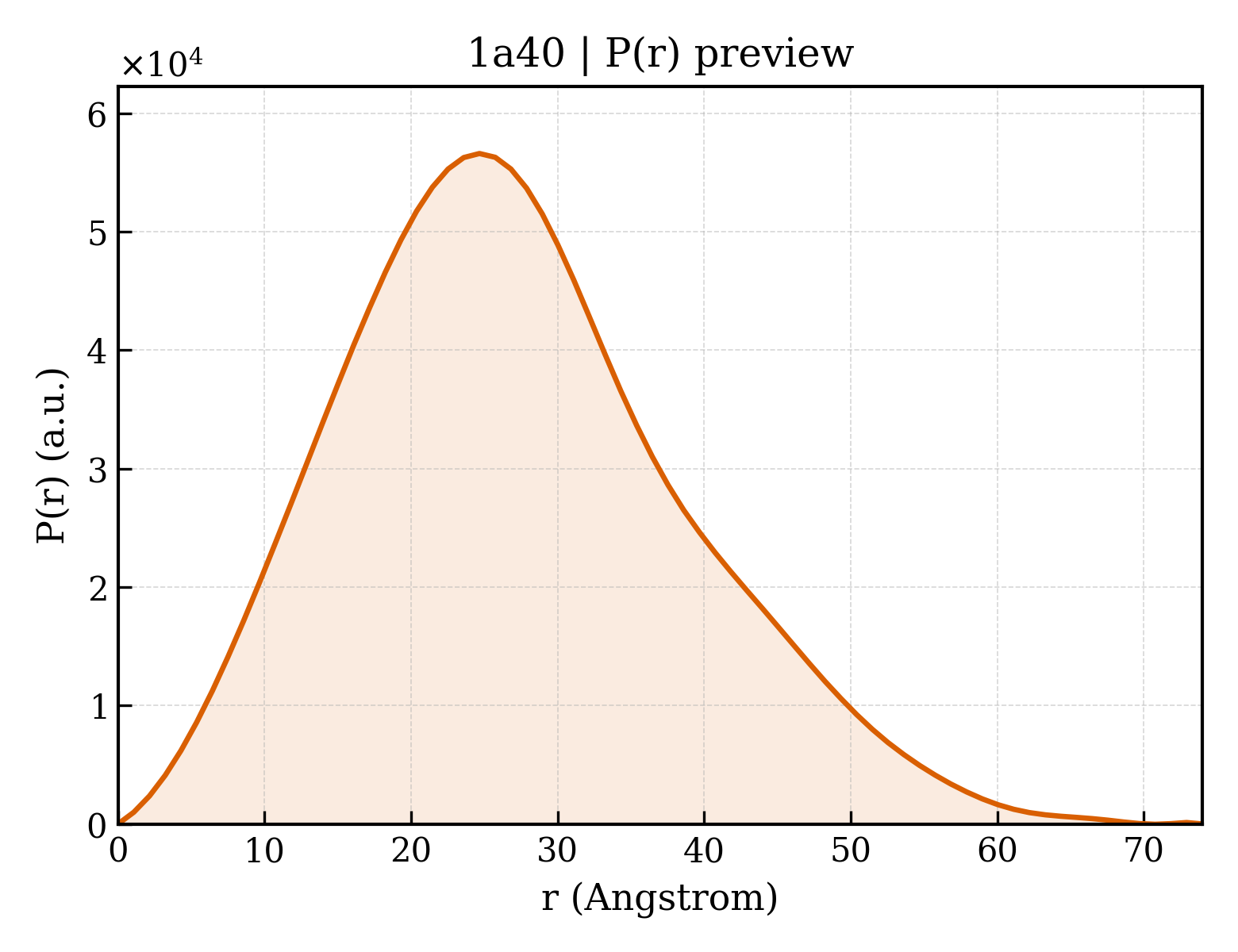

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	74.0 Å
Rg (real space) rg_real	20.79 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	1.9810e+07
I(0) uncertainty (real space) i0_real_error	2.7290e+05
Rg (reciprocal space) rg_reciprocal	20.79 Å
I(0) (reciprocal space) i0_reciprocal	19810000.0000
Solution quality estimate total_estimate	0.7577
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.7 Å
Skewness Skewness skewness	0.427
Kurtosis Kurtosis kurtosis	-0.088
Angular range angular_range	— – 0.3800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4875000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.623; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOSPHATE-BINDING PERIPLASMIC PROTEIN PRECURSOR
Molecular weight formula_weight	34572.7 kDa
Mutation mutation	A197W
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2862

EASLTGAGATFPAPVYAKWADTYQKETGNKVNYQGIGSSGGVKQIIANTVDFGASDAPLSDEKLAQEGLFQFPTVIGGVVLAVNIPGLKSGELVLDGKTLGDIYLGKIKKWDDEAIAKLNPGLKLPSQNIAVVRRADGSGTSFVFTSYLAKVNEEWKNNVGTGSTVKWPIGLGGKGNDGIAAFVQRLPGAIGYVEYWYAKQNNLAYTKLISADGKPVSPTEENFANAAKGADWSKTFAQDLTNQKGEDAWPITSTTFILIHKDQKKPEQGTEVLKFFDWAYKTGAKQANDLDYASLPDSVVEQVRAAWKTNIKDSSGKPLY

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	411

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a40a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.94 — Periplasmic binding protein-like II
Superfamily Superfamily superfamily	c.94.1 — Periplasmic binding protein-like II
Family Family family	c.94.1.1 — Phosphate binding protein-like

CATH v4.4 (2 domains)

Domain ID domain_id	1a40A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

Domain ID domain_id	1a40A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

8. Citations (4)

▶

Unit-cell length a length_a	41.410 Å
Unit-cell length b length_b	62.760 Å
Unit-cell length c length_c	122.730 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2690
