GAMMAF CRYSTALLIN FROM BOVINE LENS

Method: X-RAY DIFFRACTION D_max: 59.8 Å Quality: GOOD

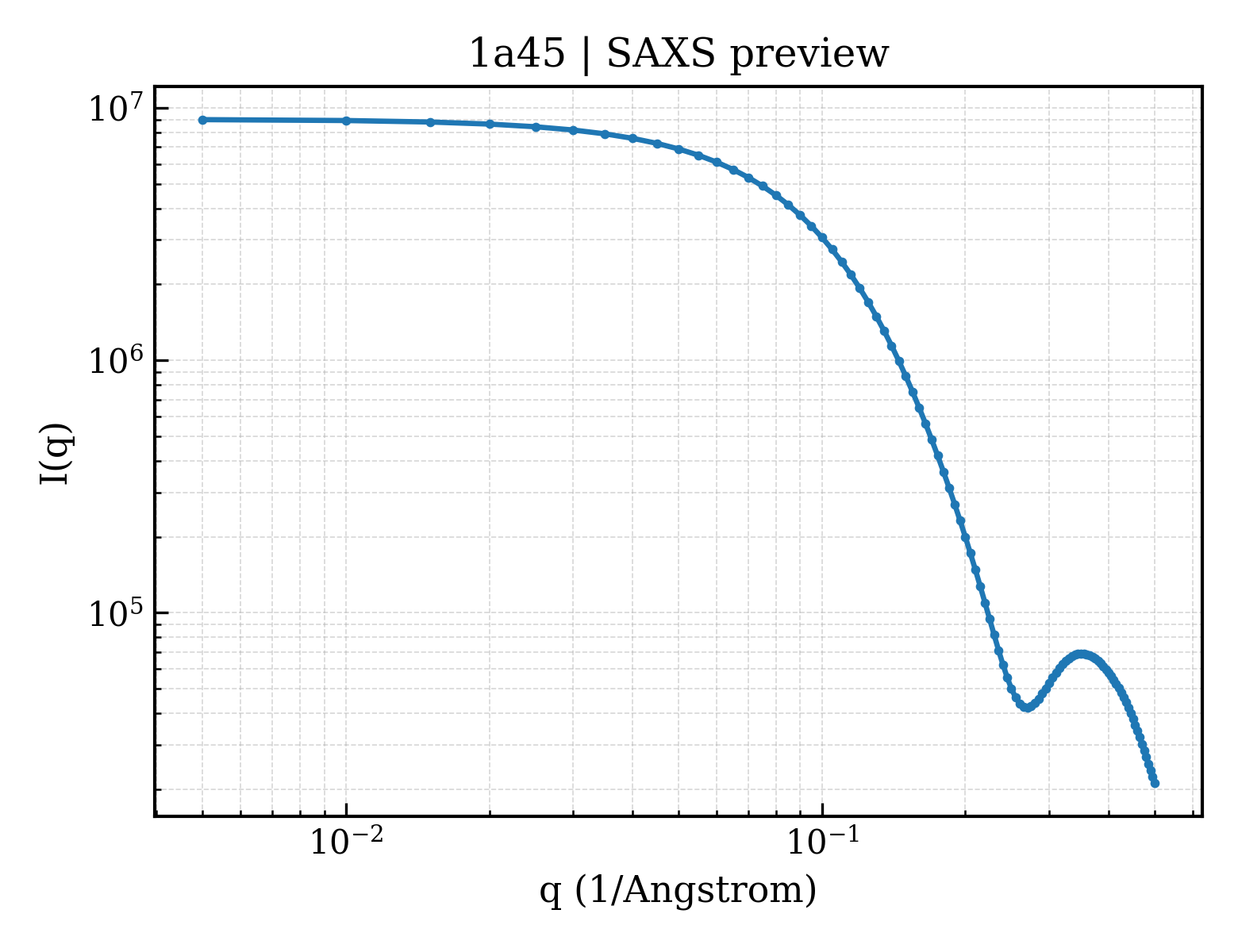

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1a45
deposition_date	1998-02-10
title	GAMMAF CRYSTALLIN FROM BOVINE LENS
keywords	EYE LENS PROTEIN; EYE LENS PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.01 Å
rg_electron	16.88 Å
i0	9007160.00
molecular_weight	20955.0 kDa
excluded_volume	25617 Å³
envelope_volume	29062 Å³
shell_volume	14927 Å³
envelope_diameter	59.4 Å
shell_rg	22.27 Å
envelope_rg	17.07 Å
shape_rg	16.87 Å
total_rg	17.75 Å
total_atoms	1481
n_residues	173
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	59.8 Å
rg_real	18.01 Å
rg_real_error	0.37 Å
i0_real	9.0070e+06
i0_real_error	1.0360e+05
rg_reciprocal	18.01 Å
i0_reciprocal	9007000.0000
total_estimate	0.8727
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	20.2 Å
skewness	0.373
kurtosis	-0.273
angular_range	— – 0.4400 Å⁻¹
current_alpha	0.0000
highest_alpha	1900000.0000
n_real_points	75
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.944

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (5)

▶

length_a	35.100 Å
length_b	46.200 Å
length_c	186.200 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	2.300 Å
resolution_low	8.000 Å
r_factor	0.1860
r_work	0.1860
r_free	—

description	GAMMAF CRYSTALLIN
formula_weight	20985.3 kDa
src_method	nat
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	1688

GAMMAF CRYSTALLIN FROM BOVINE LENS

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Entity 2 water

6. Citations (5)

7. Files & Curves (10)

Files (7)

Curves (3)

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	207

fit	/app/data/saxs_computation/a4/1a45/1a45.fit
pddf	/app/data/pr_computation/a4/1a45/1a45.pr.out
profile	/app/data/saxs_computation/a4/1a45/1a45.dat
