SAXSdb — 1a48

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHORIBOSYLAMINOIMIDAZOLE-SUCCINOCARBOXAMIDE SYNTHASE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–306	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A48	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1OBD SAICAR-synthase complexed with ATP Deposited 2003-01-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–306（305 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 2 AMP ADENOSINE MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；THE HANGING DROPS CONTAINED PROTEIN AT A CONCENTRATION OF 8 - 15 MG/ML, 50 MM TRIS-HCL BUFFER, PH 7.0, 40 MM ASPARTIC ACID AND 1.0 - 1.25 M AMMONIUM SULPHATE. THE WELL CONTAINED THE SAME ABOVE BUFFER PLUS 2.25 M AMMONIUM SULPHATE	Resolution 1.40 Å R-free 0.195
1OBG SAICAR-synthase complexed with ATP Deposited 2003-01-30	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–306（305 aa）	Not recorded	AMP ADENOSINE MONOPHOSPHATE × 2 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.5；40MM ASP. ASID, 10MM MGCL2, 25MM ATP, 2.26 M (NH4)2(SO4), 5, pH 4.50	Resolution 2.05 Å R-free 0.206
2CNQ Atomic resolution structure of SAICAR-synthase from Saccharomyces cerevisiae complexed with ADP, AICAR, succinate Deposited 2006-05-23	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–306（305 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 2 AMZ AMINOIMIDAZOLE 4-CARBOXAMIDE RIBONUCLEOTIDE × 2 AMP ADENOSINE MONOPHOSPHATE × 1 SIN SUCCINIC ACID × 2 MG MAGNESIUM ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；AMMONIUM SUPHATE, ATP, AICAR, MG, ASP, pH 7.50	Resolution 1.00 Å R-free 0.130
2CNU Atomic resolution structure of SAICAR-synthase from Saccharomyces cerevisiae complexed with aspartic acid Deposited 2006-05-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–306（305 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ASP ASPARTIC ACID × 3 SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；TRIS-HCL BUFFER, PH 7.5, ASPARTIC ACID, AMMONIUM SULPHATE	Resolution 1.05 Å R-free 0.159
2CNV SAICAR-synthase from Saccharomyces cerevisiae complexed SAICAR Deposited 2006-05-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–306（305 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ASP ASPARTIC ACID × 2 SSS N-{[5-AMINO-1-(5-O-PHOSPHONO-BETA-D-ARABINOFURANOSYL)-1H-IMIDAZOL-4-YL]CARBONYL}-L-ASPARTIC ACID × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；AMMONIUM SULPHATE, ASPARTIC ACID, TRIS-HCL BUFFER, pH 7.50	Resolution 2.00 Å R-free 0.238

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PUR7_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–306； UniProt 2–306

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a48
Deposition date deposition_date	1998-02-12
Structure title title	SAICAR SYNTHASE
Keywords keywords	ATP BINDING PROTEIN, PHOSPHORIBOSYLAMINOIMIDAZOLESUCCINOCARBOXAMIDE (SAICAR) SYNTHASE, PURINE BIOSYNTHESIS; ATP BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.77 Å
Radius of gyration Rg (electron density) rg_electron	19.79 Å
Forward intensity I(0) i0	18994500.00
Molecular weight molecular_weight	33906.0 kDa
Excluded volume excluded_volume	42867 Å³
Envelope volume envelope_volume	50658 Å³
Hydration-shell volume shell_volume	21262 Å³
Envelope diameter envelope_diameter	70.7 Å
Shell Rg shell_rg	26.23 Å
Envelope Rg envelope_rg	19.89 Å
Shape Rg shape_rg	19.78 Å
Total Rg total_rg	20.75 Å
Total atoms total_atoms	2393
Residues n_residues	298
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

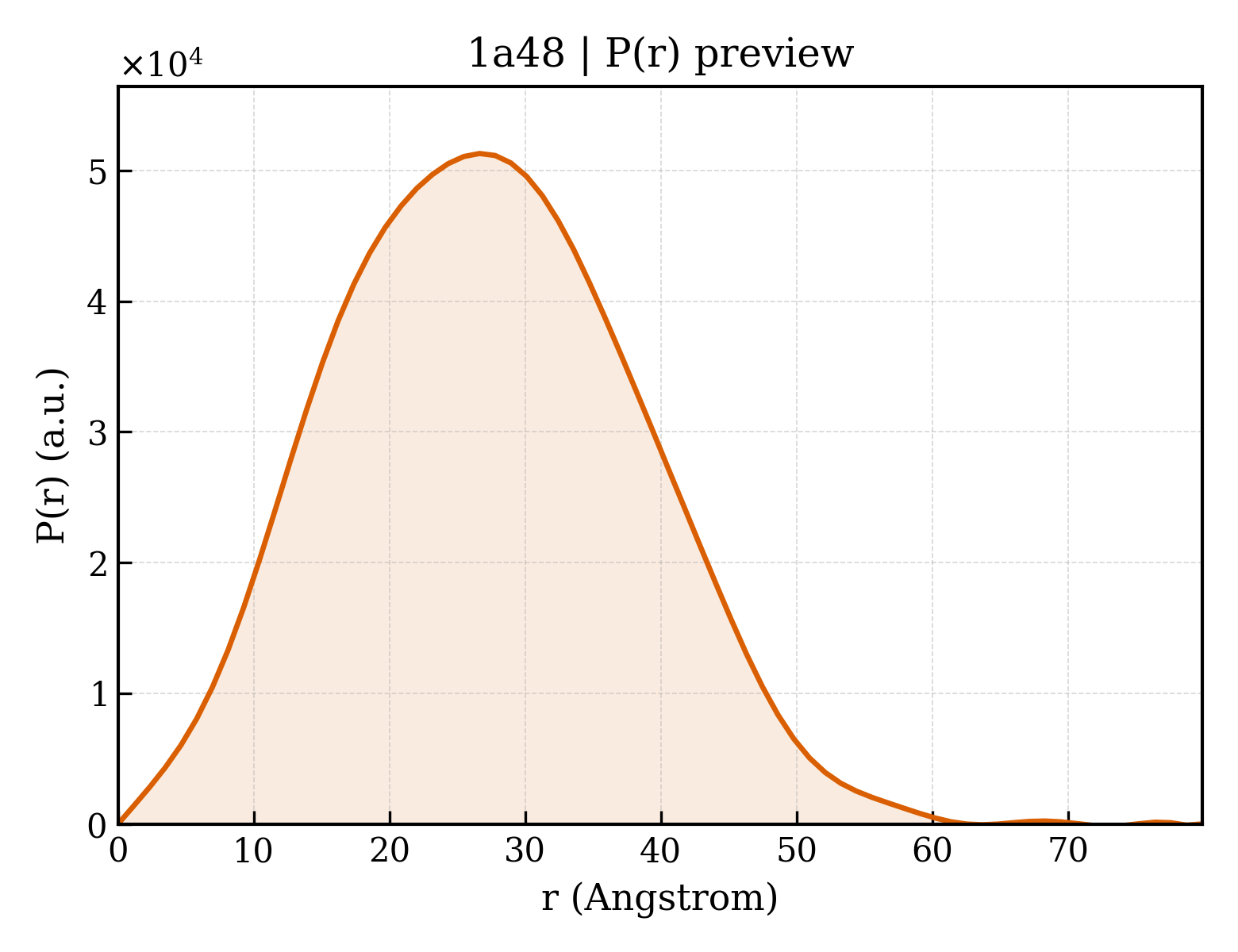

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.9 Å
Rg (real space) rg_real	20.65 Å
Rg uncertainty (real space) rg_real_error	0.75 Å
I(0) (real space) i0_real	1.8990e+07
I(0) uncertainty (real space) i0_real_error	2.5570e+05
Rg (reciprocal space) rg_reciprocal	20.67 Å
I(0) (reciprocal space) i0_reciprocal	18990000.0000
Solution quality estimate total_estimate	0.7299
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	26.6 Å
Skewness Skewness skewness	0.170
Kurtosis Kurtosis kurtosis	-0.392
Angular range angular_range	— – 0.3850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6142000.0000
Real-space data points n_real_points	70
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.518; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.931; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOSPHORIBOSYLAMINOIMIDAZOLE-SUCCINOCARBOXAMIDE SYNTHASE
Molecular weight formula_weight	34545.2 kDa
EC 编号 ec_number	6.3.2.6
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2721

XSITKTELDGILPLVARGKVRDIYEVDAGTLLFVATDRISAYDVIMENSIPEKGILLTKLSEFWFKFLSNDVRNHLVDIAPGKTIFDYLPAKLSEPKYKTQLEDRSLLVHKHKLIPLEVIVRGYITGSAWKEYVKTGTVHGLKQPQGLKESQEFPEPIFTPSTKAEQGEHDENISPAQAAELVGEDLSRRVAELAVKLYSKCKDYAKEKGIIIADTKFEFGIDEKTNEIILVDEVLTPDSSRFWNGASYKVGESQDSYDKQFLRDWLTANKLNGVNGVKMPQDIVDRTRAKYIEAYETLTGSKWSH

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a48a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.143 — SAICAR synthase-like
Superfamily Superfamily superfamily	d.143.1 — SAICAR synthase-like
Family Family family	d.143.1.1 — SAICAR synthase

CATH v4.4 (2 domains)

Domain ID domain_id	1a48A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	1a48A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

▶

8. Citations (7)

The structure of SAICAR synthase: an enzyme in the de novo pathway of purine nucleotide biosynthesis.

Structure (1998)

PMID: 9551557 · DOI: 10.1016/S0969-2126(98)00038-0 PRIMARY

;[Substrate Specificity of Phosphoribosyl-Aminoimidazole-Succinocarboxyamide Synthetase (Saicar-Synthetase) from Saccharomyces Cerevisiae Yeast] (Russian) ;

Biokhimiia (1992)

;Crystallization and Preliminary X-Ray Investigation of Phosphoribosylaminoimidazolesuccinocarboxamide Synthase from the Yeast Saccharomyces Cerevisiae ;

J.Mol.Biol. (1992)

De Novo Purine Nucleotide Biosynthesis

Prog.Nucleic Acid Res.Mol.Biol. (1992)

The Saccharomyces Cerevisiae Ade1 Gene: Structure, Overexpression and Possible Regulation by General Amino Acid Control

Gene (1991)

;[Isolation and Properties of Phosphoribosyl-Aminoimidazole-Succinocarboxyamide-Synthetase from Saccharomyces Cerevisiae Yeasts] (Russian) ;

Biokhimiia (1989)

[Nucleotide Sequence of the Ade 1 Gene of the Yeast Saccharomyces Cerevisiae] (Russian)

Bioorg.Khim. (1986)

▶

Unit-cell length a length_a	62.600 Å
Unit-cell length b length_b	63.700 Å
Unit-cell length c length_c	81.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1530
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/a4/1a48/1a48.fit
pddf	/app/data/pr_computation/a4/1a48/1a48.pr.out
profile	/app/data/saxs_computation/a4/1a48/1a48.dat
