SAXSdb — 1a53

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE

Sulfolobus solfataricus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–248	Not recorded	IGP INDOLE-3-GLYCEROL PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.5；pH 5.5	Resolution 2.00 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A53	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1IGS INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE FROM SULFOLOBUS SOLFATARICUS AT 2.0 A RESOLUTION Deposited 1995-08-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–248（248 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.	Resolution 2.00 Å
1JUK INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE FROM SULFOLOBUS SOLFATARICUS IN A TRIGONAL CRYSTAL FORM Deposited 1996-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–248（248 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.50 Å
1JUL INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE FROM SULFOLOBUS SOLFATARICUS IN A SECOND ORTHORHOMBIC CRYSTAL FORM Deposited 1996-05-03	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–248（248 aa）	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；pH 6.5	Resolution 2.00 Å
1LBF CRYSTAL STRUCTURE OF INDOLE-3-GLYCEROL PHOSPHATE SYNTASE (IGPS)WITH REDUCED 1-(O-CABOXYPHENYLAMINO)-1-DEOXYRIBULOSE 5-PHOSPHATE (RCDRP) Deposited 2002-04-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Not recorded	137 1-(O-CARBOXY-PHENYLAMINO)-1-DEOXY-D-RIBULOSE-5-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；30% ammonium sulphate, 50 mM phosphate buffer, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.05 Å R-free 0.225
1LBL Crystal structure of indole-3-glycerol phosphate synthase (IGPS) in complex with 1-(o-carboxyphenylamino)-1-deoxyribulose 5'-phosphate (CdRP) Deposited 2002-04-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Not recorded	137 1-(O-CARBOXY-PHENYLAMINO)-1-DEOXY-D-RIBULOSE-5-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；279 K；1.2M ammonium sulphate, 50 mM potassium phosphate buffer, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.40 Å R-free 0.247
2C3Z Crystal structure of a truncated variant of indole-3-glycerol phosphate synthase from Sulfolobus solfataricus Deposited 2005-10-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–248（222 aa） Fragment：DELTA(1-26), RESIDUES 27-248	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 30% PEG8000 0.2 M AMMONIUM SULFATE 0.1 M MES, PH 6.5	Resolution 2.80 Å
3NYZ Crystal Structure of Kemp Elimination Catalyst 1A53-2 Deposited 2010-07-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–248（248 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；0.1 bis-tris, 0.2 M ammonium acetate, 25% PEG 3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.51 Å R-free 0.251
3NYZ Crystal Structure of Kemp Elimination Catalyst 1A53-2 Deposited 2010-07-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–248（248 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；0.1 bis-tris, 0.2 M ammonium acetate, 25% PEG 3350, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.51 Å R-free 0.251
3NZ1 Crystal Structure of Kemp Elimination Catalyst 1A53-2 Complexed with Transition State Analog 5-Nitro Benzotriazole Deposited 2010-07-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–248（248 aa）	Mutation：E51A, S81A, L83A, K110W, L131A, L157A, E159V, G178E, N180A, E210W, S211Q, L231G	3NY 5-nitro-1H-benzotriazole × 1 SO4 SULFATE ION × 6 TLA L(+)-TARTARIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；0.2 potassium sodium tartrate, 2M ammonium sulfate, 0.1 M sodium citrate/citric acid, pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.56 Å R-free 0.210
3TC6 Crystal Structure of Engineered Protein. Northeast Structural Genomics Consortium Target OR63. Deposited 2011-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–247（247 aa）	Not recorded	PO4 PHOSPHATE ION × 4 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions Microbatch crystallization under oil；pH 5；277 K；40% PEG 400, 0.1 M Sodium phosphate monobasic, 0.1 M Sodium acetate, pH 5.0, Microbatch crystallization under oil, temperature 277K	Resolution 1.60 Å R-free 0.198
3TC7 Crystal Structure of Engineered Protein. Northeast Structural Genomics Consortium Target OR62. Deposited 2011-08-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–247（247 aa）	Not recorded	PO4 PHOSPHATE ION × 3 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions Microbatch crystallization under oil；pH 5；277 K；40 % PEG 400, 0.1 M Ammonium phosphate monobasic, 0.1 M Sodium acetate, pH 5.0, Microbatch crystallization under oil, temperature 277K	Resolution 1.50 Å R-free 0.193
4A2R Structure of the engineered retro-aldolase RA95.5-5 Deposited 2011-09-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–245（245 aa） Fragment：TIM-BARREL FOLD, RESIDUES 1-245	Mutation：YES	3NK 1-(6-METHOXYNAPHTHALEN-2-YL)BUTANE-1,3-DIONE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；301 K；0.1 M TRIS PH 8.5, 0.2 M NA2HPO4, 23% W/V PEG3350, 28 DEGREES CELSIUS.	Resolution 1.30 Å R-free 0.165
4A2S Structure of the engineered retro-aldolase RA95.5 Deposited 2011-09-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–245（245 aa） Fragment：TIM-BARREL FOLD, RESIDUES 1-245	Mutation：YES	3NK 1-(6-METHOXYNAPHTHALEN-2-YL)BUTANE-1,3-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；301 K；0.1 M HEPES KOH PH 7.6, 23% W/V PEG 3350,20 MM NA2HPO4, 28 DEG. CELSIUS.	Resolution 1.40 Å R-free 0.162
4IWW Computational Design of an Unnatural Amino Acid Metalloprotein with Atomic Level Accuracy Deposited 2013-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Mutation：K10E, F22V, S70A, K110M, I133BPA, N161T, N179T, R181Q, L183D, E209D, F246L Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 6 CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；1.8 M ammonium sulfate, 5% PEG3350, pH 6.5, EVAPORATION, temperature 298K	Resolution 2.30 Å R-free 0.264
4IWW Computational Design of an Unnatural Amino Acid Metalloprotein with Atomic Level Accuracy Deposited 2013-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–248（247 aa）	Mutation：K10E, F22V, S70A, K110M, I133BPA, N161T, N179T, R181Q, L183D, E209D, F246L Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 3 CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；1.8 M ammonium sulfate, 5% PEG3350, pH 6.5, EVAPORATION, temperature 298K	Resolution 2.30 Å R-free 0.264
4IX0 Computational Design of an Unnatural Amino Acid Metalloprotein with Atomic Level Accuracy Deposited 2013-01-24	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Mutation：K10E, F22V, S70A, K110M, I133BPA, N161T, N179T, R181Q, L183D, E209D, F246L Non-standard monomer：Yes (specific site not provided by mmCIF)	NI NICKEL (II) ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.5；298 K；1.6 M ammonium sulfate, 3% PEG3350, pH 6.5, EVAPORATION, temperature 298K	Resolution 2.50 Å R-free 0.257
5AOU Structure of the engineered retro-aldolase RA95.5-8F apo Deposited 2015-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–245（245 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 5 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.6；293 K；0.1M SODIUM ACETATE TRIHYDRATE, 2M AMMONIUM SULFATE, PH 4.6, 20DEGREE CELSIUS	Resolution 1.10 Å R-free 0.219
5K7J Structure of designed zinc binding protein ZE2 bound to Zn2+ Deposited 2016-05-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.10 M succinate 22% PEG 3350	Resolution 1.39 Å R-free 0.230
5K7J Structure of designed zinc binding protein ZE2 bound to Zn2+ Deposited 2016-05-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–248（247 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.10 M succinate 22% PEG 3350	Resolution 1.39 Å R-free 0.230
6NW4 Evolution of a computationally designed Kemp eliminase Deposited 2019-02-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–248（247 aa）	Not recorded	SO4 SULFATE ION × 4 6NT 6-NITROBENZOTRIAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium citrate, 20 mM sodium sulfate, 43% v/v PEG 300, pH 5.6	Resolution 3.00 Å R-free 0.295

17 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRPC_SULSO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–247； UniProt 2–248

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a53
Deposition date deposition_date	1998-02-19
Structure title title	COMPLEX OF INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE FROM SULFOLOBUS SOLFATARICUS WITH INDOLE-3-GLYCEROLPHOSPHATE AT 2.0 A RESOLUTION
Keywords keywords	SYNTHASE, THERMOSTABLE, TIM-BARREL; SYNTHASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.25 Å
Radius of gyration Rg (electron density) rg_electron	16.87 Å
Forward intensity I(0) i0	13819800.00
Molecular weight molecular_weight	28744.0 kDa
Excluded volume excluded_volume	36395 Å³
Envelope volume envelope_volume	40186 Å³
Hydration-shell volume shell_volume	19218 Å³
Envelope diameter envelope_diameter	55.3 Å
Shell Rg shell_rg	23.76 Å
Envelope Rg envelope_rg	17.12 Å
Shape Rg shape_rg	16.87 Å
Total Rg total_rg	17.91 Å
Total atoms total_atoms	2022
Residues n_residues	247
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	54.3 Å
Rg (real space) rg_real	18.09 Å
Rg uncertainty (real space) rg_real_error	0.17 Å
I(0) (real space) i0_real	1.3820e+07
I(0) uncertainty (real space) i0_real_error	1.4830e+05
Rg (reciprocal space) rg_reciprocal	18.11 Å
I(0) (reciprocal space) i0_reciprocal	13820000.0000
Solution quality estimate total_estimate	0.8225
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.9 Å
Skewness Skewness skewness	0.009
Kurtosis Kurtosis kurtosis	-0.493
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5940000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE
Molecular weight formula_weight	28494.9 kDa
EC 编号 ec_number	4.1.1.48
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2264

PRYLKGWLKDVVQLSLRRPSFRASRQRPIISLNERILEFNKRNITAIIAEYKRKSPSGLDVERDPIEYSKFMERYAVGLSILTEEKYFNGSYETLRKIASSVSIPILMKDFIVKESQIDDAYNLGADTVLLIVKILTERELESLLEYARSYGMEPLIEINDENDLDIALRIGARFIGINSRDLETLEINKENQRKLISMIPSNVVKVAESGISERNEIEELRKLGVNAFLIGSSLMRNPEKIKEFIL

来源 Source

来源生物 organism	Sulfolobus solfataricus
NCBI Class编号 ncbi_taxonomy_id	2287
宿主生物 host_organism	Escherichia coli str. K12 substr. W3110

Entity 2 Entity 2 non-polymer

Description description	INDOLE-3-GLYCEROL PHOSPHATE
Molecular weight formula_weight	287.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a53a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
Family Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

CATH v4.4 (1 domains)

Domain ID domain_id	1a53A00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

8. Citations (2)

▶

Unit-cell length a length_a	57.900 Å
Unit-cell length b length_b	73.800 Å
Unit-cell length c length_c	104.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.1590
R_work r_work	0.1590
R_free r_free	0.2120

fit	/app/data/saxs_computation/a5/1a53/1a53.fit
pddf	/app/data/pr_computation/a5/1a53/1a53.pr.out
profile	/app/data/saxs_computation/a5/1a53/1a53.dat

COMPLEX OF INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE FROM SULFOLOBUS SOLFATARICUS WITH INDOLE-3-GLYCEROLPHOSPHATE AT 2.0 A RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

INDOLE-3-GLYCEROLPHOSPHATE SYNTHASE

State in the Current Structure

Other States of the Same Protein in the Database

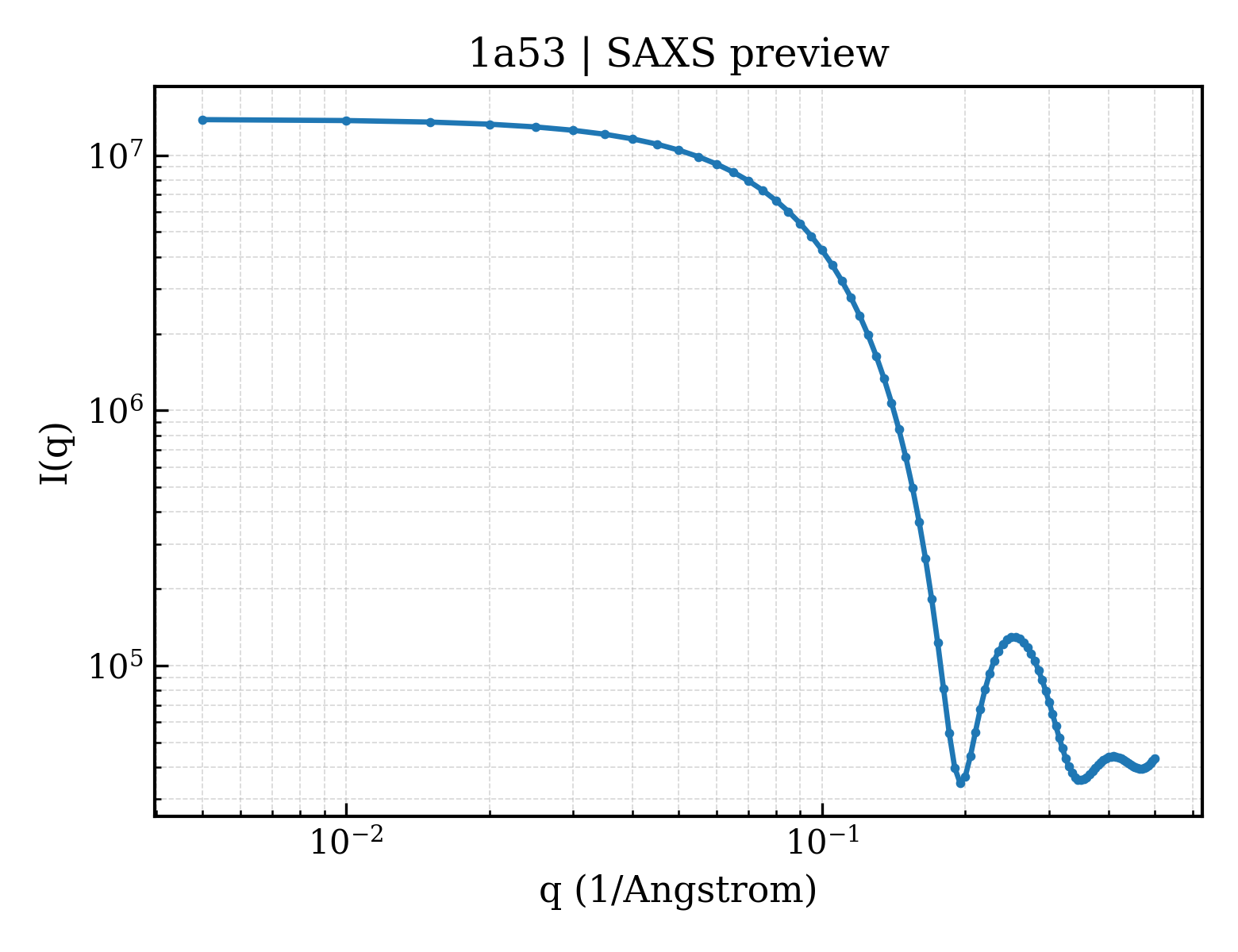

SAXS scattering curve SAXS Profile

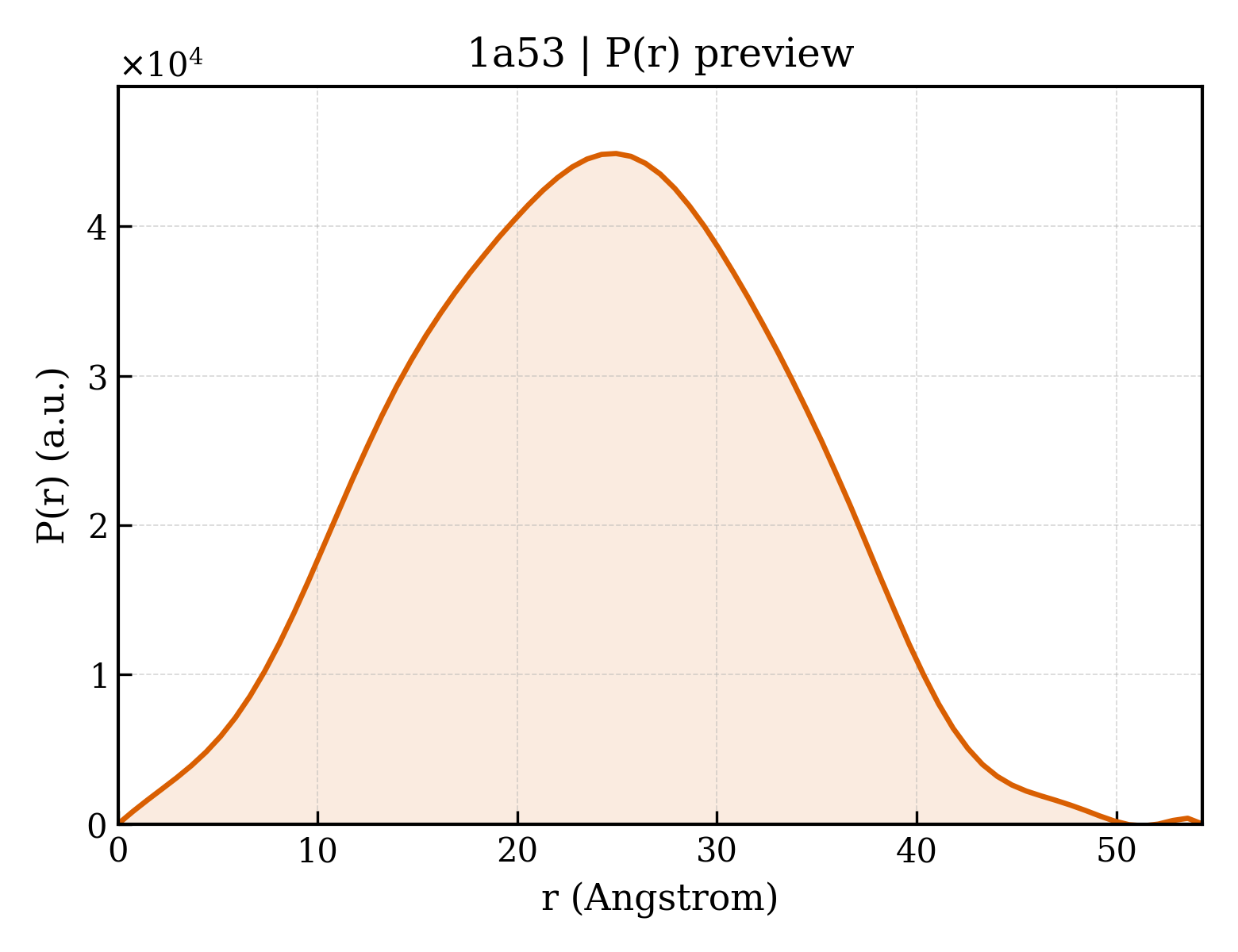

P(r) Distance Distribution P(r) Distribution
