SAXSdb — 1a6f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE P PROTEIN

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–116	Mutation：ALA 2, HIS 3, LEU 4 ARE INSERTED BETWEEN MET 1 AND LYS 2	ZN ZINC ION × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.60 Å R-free 0.317
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–116	Mutation：ALA 2, HIS 3, LEU 4 ARE INSERTED BETWEEN MET 1 AND LYS 2	ZN ZINC ION × 4 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.5	Resolution 2.60 Å R-free 0.317

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	RNPA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–119； UniProt 2–116

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a6f
Deposition date deposition_date	1998-02-24
Structure title title	RNASE P PROTEIN FROM BACILLUS SUBTILIS
Keywords keywords	ENDONUCLEASE, RNASE, SUBUNIT; ENDONUCLEASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.16 Å
Radius of gyration Rg (electron density) rg_electron	13.53 Å
Forward intensity I(0) i0	3819400.00
Molecular weight molecular_weight	13698.0 kDa
Excluded volume excluded_volume	17204 Å³
Envelope volume envelope_volume	19243 Å³
Hydration-shell volume shell_volume	12005 Å³
Envelope diameter envelope_diameter	43.8 Å
Shell Rg shell_rg	19.44 Å
Envelope Rg envelope_rg	13.85 Å
Shape Rg shape_rg	13.43 Å
Total Rg total_rg	15.07 Å
Total atoms total_atoms	957
Residues n_residues	113
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

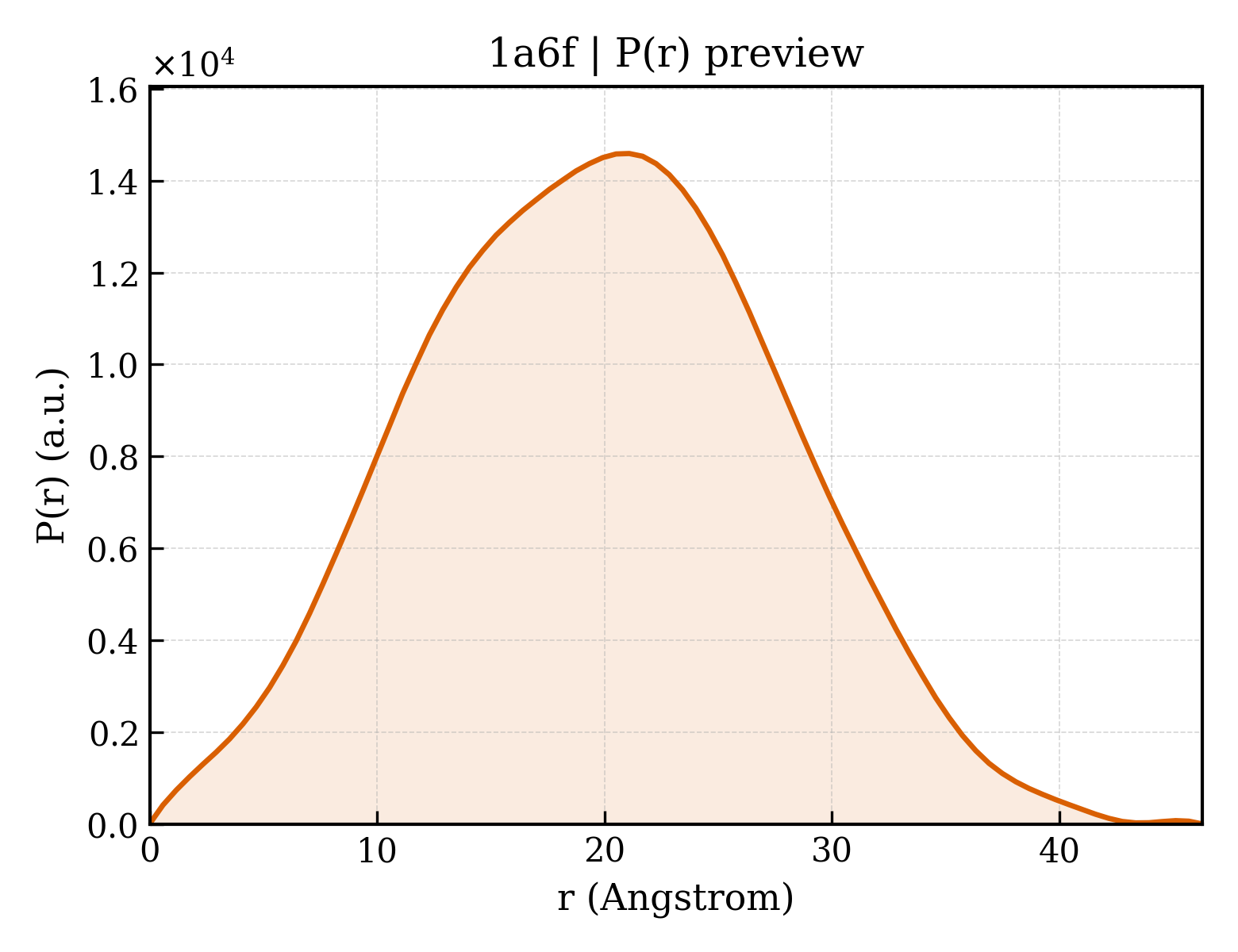

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.3 Å
Rg (real space) rg_real	15.03 Å
Rg uncertainty (real space) rg_real_error	0.26 Å
I(0) (real space) i0_real	3.8190e+06
I(0) uncertainty (real space) i0_real_error	4.3660e+04
Rg (reciprocal space) rg_reciprocal	15.04 Å
I(0) (reciprocal space) i0_reciprocal	3819000.0000
Solution quality estimate total_estimate	0.8990
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.065
Kurtosis Kurtosis kurtosis	-0.424
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	805800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	RIBONUCLEASE P PROTEIN
Molecular weight formula_weight	14154.5 kDa
EC 编号 ec_number	3.1.26.5
Mutation mutation	ALA 2, HIS 3, LEU 4 ARE INSERTED BETWEEN MET 1 AND LYS 2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	967

MAHLKKRNRLKKNEDFQKVFKHGTSVANRQFVLYTLDQPENDELRVGLSVSKKIGNAVMRNRIKRLIRQAFLEEKERLKEKDYIIIARKPASQLTYEETKKSLQHLFRKSSLYKKSSSK

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	10

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a6fa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.14 — Ribosomal protein S5 domain 2-like
Superfamily Superfamily superfamily	d.14.1 — Ribosomal protein S5 domain 2-like
Family Family family	d.14.1.2 — RNase P protein

CATH v4.4 (1 domains)

Domain ID domain_id	1a6fA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	230 — Ribosomal Protein S5; domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	82.400 Å
Unit-cell length b length_b	82.400 Å
Unit-cell length c length_c	33.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.3170

fit	/app/data/saxs_computation/a6/1a6f/1a6f.fit
pddf	/app/data/pr_computation/a6/1a6f/1a6f.pr.out
profile	/app/data/saxs_computation/a6/1a6f/1a6f.dat
