SAXSdb — 1a70

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN

Spinacia oleracea

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 51–147	Mutation：E92K	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 2.6M AMMONIUM SULPHATE IN 50MM PHOSPHATE BUFFER, PH 7.5	Resolution 1.70 Å R-free 0.200

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1A70	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
29KI Spinach Ferredoxin I, Reduced, -400 mV Deposited 2026-03-17	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.8；277 K；3.5M Ammonium Sulfate, 0.1M Sodium phosphate pH 7.8, 5% Glycerol	Resolution 1.11 Å R-free 0.194
9GYD Ferredoxin Wild-type -As-isolated state Deposited 2024-10-01	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；100 mM Na, K phosphate, 2.6-3.6 M Ammonium phosphate	Resolution 0.92 Å R-free 0.138
9GYL Ferredoxin Wild-type -Oxidised state Deposited 2024-10-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K Phosphate pH 7-8, 26-36 M Ammonium Sulphate	Resolution 1.19 Å R-free 0.178
9GYN Ferredoxin Wild-type - Reduced state Deposited 2024-10-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；277 K；100 mM Na, K phosphate, 2.6-3.6 M Ammonium phosphate	Resolution 1.00 Å R-free 0.156
9GYR Ferredoxin CNF labelled, oxidised state Deposited 2024-10-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K phosphate pH 7-8 2.6-3.6 M Ammonium sulfate	Resolution 1.10 Å R-free 0.144
9GYR Ferredoxin CNF labelled, oxidised state Deposited 2024-10-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 51–147（97 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K phosphate pH 7-8 2.6-3.6 M Ammonium sulfate	Resolution 1.10 Å R-free 0.144
9GYR Ferredoxin CNF labelled, oxidised state Deposited 2024-10-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 51–147（97 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K phosphate pH 7-8 2.6-3.6 M Ammonium sulfate	Resolution 1.10 Å R-free 0.144
9GYR Ferredoxin CNF labelled, oxidised state Deposited 2024-10-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 51–147（97 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K phosphate pH 7-8 2.6-3.6 M Ammonium sulfate	Resolution 1.10 Å R-free 0.144
9GYU Ferredoxin CNF-labelled reduced state Deposited 2024-10-03	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100 mM Na K Phosphate pH 7-8 2.6-3.6 M Ammonium Sulphate	Resolution 1.10 Å R-free 0.173
9HI3 C-terminal domain of pectobacterial FusB in complex with spinach ferredoxin 1 Deposited 2024-11-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 2 NI NICKEL (II) ION × 2 K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05M HEPES,0.05M MOPS pH 7.5, 2M divalent cations (0.005M Manganese(II) chloride, 0.005M Cobalt(II) chloride , 0.005M Nickel(II) chloride, 0.005M Zinc acetate), 0.1 M monosaccharides (0.2 M xylitol, 0.2 M D-fructose, 0.2 M D-sorbitol, 0.2 M myo-inositol, 0.2 M L-rhamnose monohydrate), 20% PEGMME550, 10% PEG 20k	Resolution 1.70 Å R-free 0.205
9TXE Spinach Ferredoxin I, Oxidised Deposited 2026-01-15	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；3.5M Ammonium Sulfate, 0.1M Sodium phosphate pH 7.8, 5% Glycerol	Resolution 0.95 Å R-free 0.178
9TXO Spinach Ferredoxin I, Re-Oxidised Deposited 2026-01-16	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；277 K；3.5M Ammonium Sulfate, 0.1M Sodium phosphate pH 7.8, 5% Glycerol	Resolution 1.20 Å R-free 0.216
9TXQ Spinach Ferredoxin I, Reduced with Methyl Viologen at -450mV Deposited 2026-01-16	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 51–147（97 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；277 K；3.5M Ammonium sulfate, 0.1M Sodium phosphate pH 7.8, 5% Glycerol	Resolution 1.10 Å R-free 0.185

10 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FER1_SPIOL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–97； UniProt 51–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1a70
Deposition date deposition_date	1998-03-19
Structure title title	SPINACH FERREDOXIN
Keywords keywords	IRON-SULFUR PROTEIN, PHOTOSYNTHESIS, ELECTRON TRANSPORT; IRON-SULFUR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.59 Å
Radius of gyration Rg (electron density) rg_electron	12.16 Å
Forward intensity I(0) i0	2629920.00
Molecular weight molecular_weight	10627.0 kDa
Excluded volume excluded_volume	12957 Å³
Envelope volume envelope_volume	14485 Å³
Hydration-shell volume shell_volume	10197 Å³
Envelope diameter envelope_diameter	38.9 Å
Shell Rg shell_rg	17.85 Å
Envelope Rg envelope_rg	12.39 Å
Shape Rg shape_rg	12.19 Å
Total Rg total_rg	13.32 Å
Total atoms total_atoms	736
Residues n_residues	97
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	42.3 Å
Rg (real space) rg_real	13.48 Å
Rg uncertainty (real space) rg_real_error	0.31 Å
I(0) (real space) i0_real	2.6300e+06
I(0) uncertainty (real space) i0_real_error	2.7670e+04
Rg (reciprocal space) rg_reciprocal	13.49 Å
I(0) (reciprocal space) i0_reciprocal	2630000.0000
Solution quality estimate total_estimate	0.8098
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	17.1 Å
Skewness Skewness skewness	0.058
Kurtosis Kurtosis kurtosis	-0.364
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	407200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.848; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	FERREDOXIN
Molecular weight formula_weight	10488.5 kDa
Mutation mutation	E92K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	817

AAYKVTLVTPTGNVEFQCPDDVYILDAAEEEGIDLPYSCRAGSCSSCAGKLKTGSLNQDDQSFLDDDQIDEGWVLTCAAYPVSDVTIETHKKEELTA

来源 Source

来源生物 organism	Spinacia oleracea
通用名 common_name	spinach
NCBI Class编号 ncbi_taxonomy_id	3562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	81

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1a70a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (1 domains)

Domain ID domain_id	1a70A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	31.000 Å
Unit-cell length b length_b	39.180 Å
Unit-cell length c length_c	83.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.1900
R_work r_work	0.1820
R_free r_free	0.2000

fit	/app/data/saxs_computation/a7/1a70/1a70.fit
pddf	/app/data/pr_computation/a7/1a70/1a70.pr.out
profile	/app/data/saxs_computation/a7/1a70/1a70.dat

SPINACH FERREDOXIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN

State in the Current Structure

Other States of the Same Protein in the Database

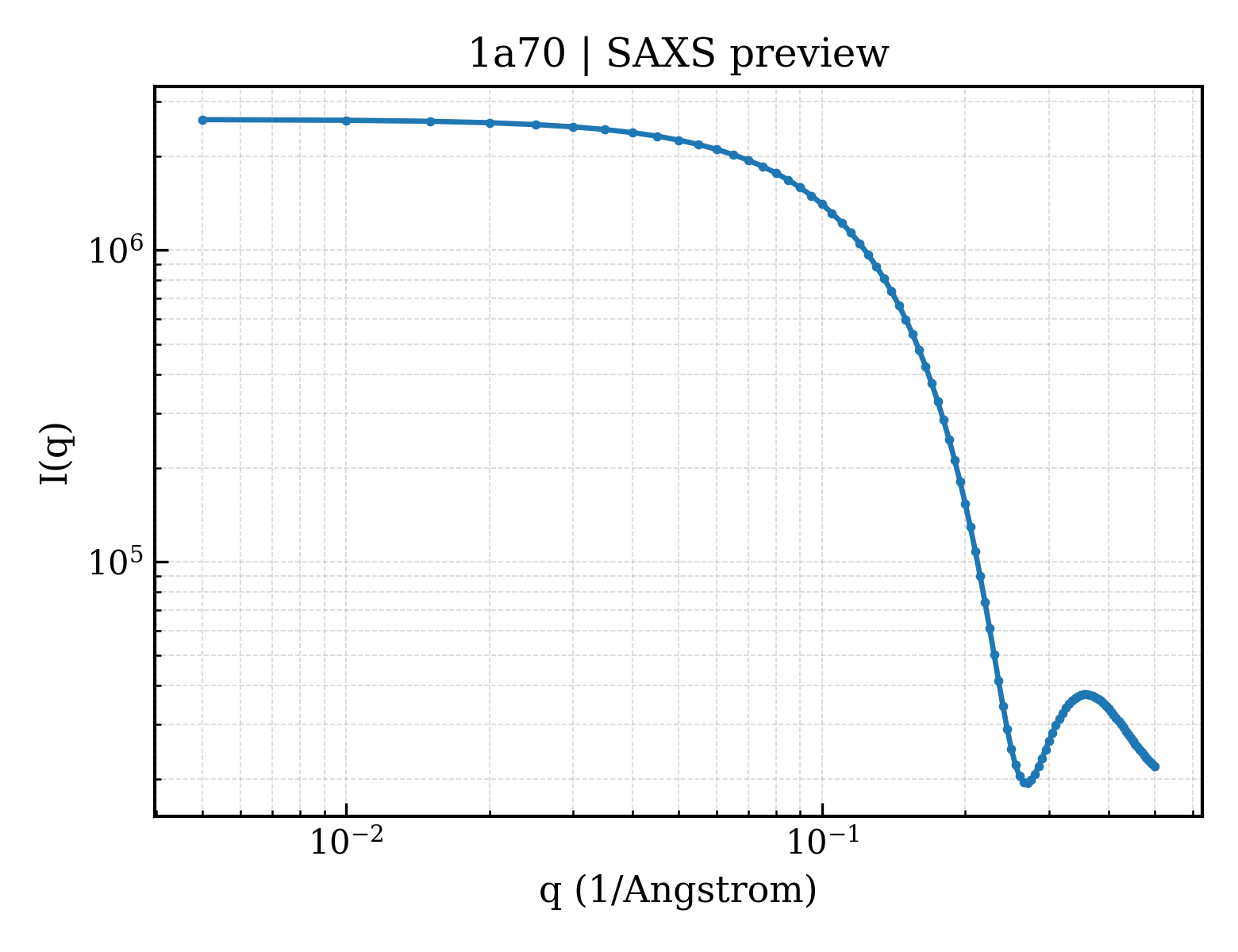

SAXS scattering curve SAXS Profile
