1a9g
APURINIC DNA WITH BOUND WATER AT THE DAMAGED SITE AND N3 OF CYTOSINE, BETA FORM, NMR, 1 STRUCTURE

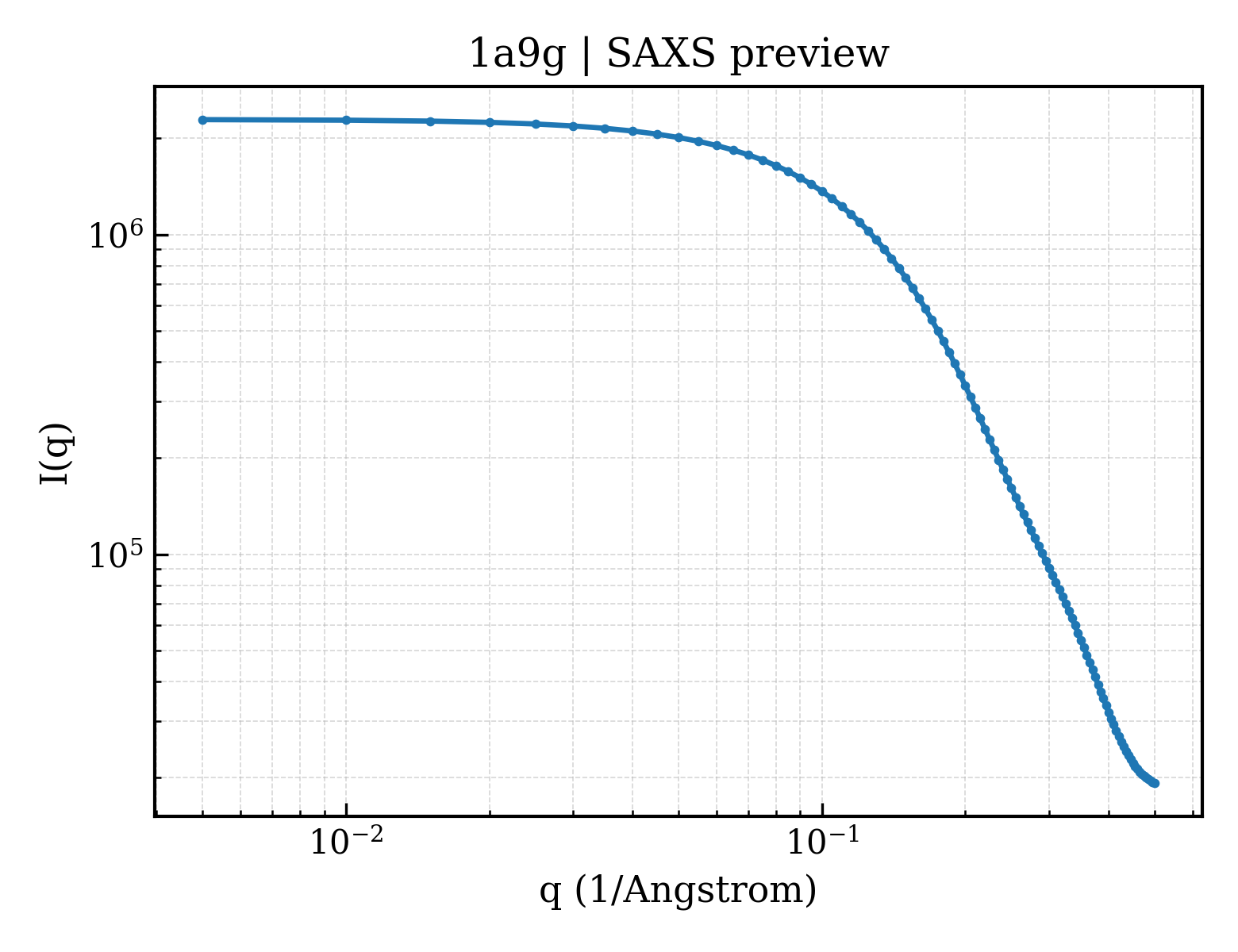

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1a9g |
| deposition_date | 1998-04-06 |
| title | APURINIC DNA WITH BOUND WATER AT THE DAMAGED SITE AND N3 OF CYTOSINE, BETA FORM, NMR, 1 STRUCTURE |
| keywords | DAMAGED DNA, APURINIC DNA, WATER, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.48 Å |
| rg_electron | 11.98 Å |
| i0 | 2292320.00 |
| molecular_weight | 6561.0 kDa |
| excluded_volume | 6333 ų |
| envelope_volume | 8064 ų |
| shell_volume | 6520 ų |
| envelope_diameter | 43.7 Å |
| shell_rg | 15.88 Å |
| envelope_rg | 12.04 Å |
| shape_rg | 11.90 Å |
| total_rg | 12.71 Å |
| total_atoms | 680 |
| n_residues | 21 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 42.3 Å |
| rg_real | 12.50 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.2920e+06 |
| i0_real_error | 2.4210e+04 |
| rg_reciprocal | 12.50 Å |
| i0_reciprocal | 2292000.0000 |
| total_estimate | 0.7979 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 12.3 Å |
| skewness | 0.334 |
| kurtosis | -0.377 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 162000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.828; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.888; Smooth: 0.000 |
