SAXSdb — 1afh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MAIZE NONSPECIFIC LIPID TRANSFER PROTEIN

OrganismNot specified

UniProt P19656

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 28–120	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 5.5；308 K	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AFH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FK0 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH CAPRIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-08	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	DKA DECANOIC ACID × 1 FMT FORMIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；3.3M Na formate, 10% glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.241
1FK1 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH LAURIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	DAO LAURIC ACID × 1 FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.2M Na formate, 0.2M potassium cyanide, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.194
1FK2 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH MYRISTIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	MYR MYRISTIC ACID × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.2M Na formate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.197
1FK3 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH PALMITOLEIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	PAM PALMITOLEIC ACID × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.5M Na formate, 0.1M lithium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.236
1FK4 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH STEARIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	STE STEARIC ACID × 1 FMT FORMIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；5.0M Na formate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.80 Å R-free 0.208
1FK5 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH OLEIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	OLA OLEIC ACID × 1 FMT FORMIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；3.6-4.8M Na formate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.30 Å R-free 0.188
1FK6 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH ALPHA-LINOLENIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	LNL ALPHA-LINOLENIC ACID × 1 FMT FORMIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；4.4M Na formate, 0.1M bezene sulfornic acid, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.90 Å R-free 0.274
1FK7 STRUCTURAL BASIS OF NON-SPECIFIC LIPID BINDING IN MAIZE LIPID-TRANSFER PROTEIN COMPLEXES WITH RICINOLEIC ACID REVEALED BY HIGH-RESOLUTION X-RAY CRYSTALLOGRAPHY Deposited 2000-08-09	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	RCL RICINOLEIC ACID × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；5.0M Na formate, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.90 Å R-free 0.274
1MZL MAIZE NONSPECIFIC LIPID TRANSFER PROTEIN Deposited 1995-01-26	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.219
1MZM MAIZE NONSPECIFIC LIPID TRANSFER PROTEIN COMPLEXED WITH PALMITATE Deposited 1995-01-26	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–120（93 aa）	Not recorded	PLM PALMITIC ACID × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.78 Å R-free 0.179

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NLTP_MAIZE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–93； UniProt 28–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1afh
Deposition date deposition_date	1997-03-07
Structure title title	LIPID TRANSFER PROTEIN FROM MAIZE SEEDLINGS, NMR, 15 STRUCTURES
Keywords keywords	LIPID-BINDING PROTEIN, LIPID TRANSFER PROTEIN, MAIZE, MOLECULAR MODELING, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.92 Å
Radius of gyration Rg (electron density) rg_electron	11.58 Å
Forward intensity I(0) i0	333759000.00
Molecular weight molecular_weight	135900.0 kDa
Excluded volume excluded_volume	163350 Å³
Envelope volume envelope_volume	16071 Å³
Hydration-shell volume shell_volume	10776 Å³
Envelope diameter envelope_diameter	43.4 Å
Shell Rg shell_rg	18.56 Å
Envelope Rg envelope_rg	13.10 Å
Shape Rg shape_rg	11.58 Å
Total Rg total_rg	11.73 Å
Total atoms total_atoms	18600
Residues n_residues	1395
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	37.9 Å
Rg (real space) rg_real	11.84 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	3.3380e+08
I(0) uncertainty (real space) i0_real_error	3.5720e+06
Rg (reciprocal space) rg_reciprocal	11.85 Å
I(0) (reciprocal space) i0_reciprocal	333800000.0000
Solution quality estimate total_estimate	0.8086
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.3 Å
Skewness Skewness skewness	0.088
Kurtosis Kurtosis kurtosis	-0.320
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	100000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.841; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1afha_
Class class	a — All alpha proteins
Fold Fold fold	a.52 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Superfamily Superfamily superfamily	a.52.1 — Bifunctional inhibitor/lipid-transfer protein/seed storage 2S albumin
Family Family family	a.52.1.1 — Plant lipid-transfer and hydrophobic proteins

CATH v4.4 (1 domains)

Domain ID domain_id	1afhA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	110 — Hydrophobic Seed Protein
Homologous superfamily homologous superfamily	10 — Plant lipid-transfer and hydrophobic proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	MAIZE NONSPECIFIC LIPID TRANSFER PROTEIN
Molecular weight formula_weight	9062.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	18600

fit	/app/data/saxs_computation/af/1afh/1afh.fit
pddf	/app/data/pr_computation/af/1afh/1afh.pr.out
profile	/app/data/saxs_computation/af/1afh/1afh.dat

LIPID TRANSFER PROTEIN FROM MAIZE SEEDLINGS, NMR, 15 STRUCTURES

1. Protein Identity and Related Structures Protein Identity & Related Structures

MAIZE NONSPECIFIC LIPID TRANSFER PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

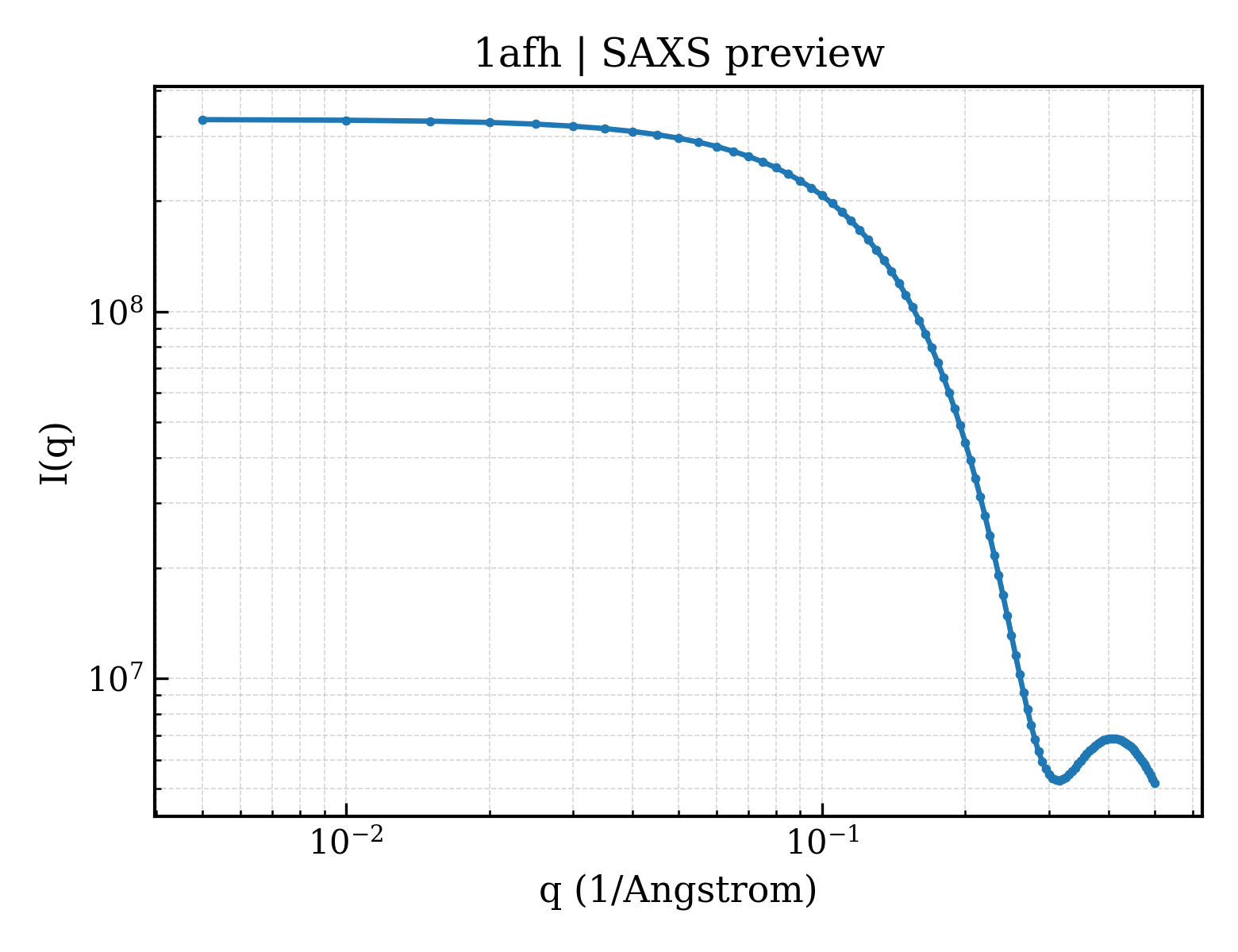

SAXS scattering curve SAXS Profile

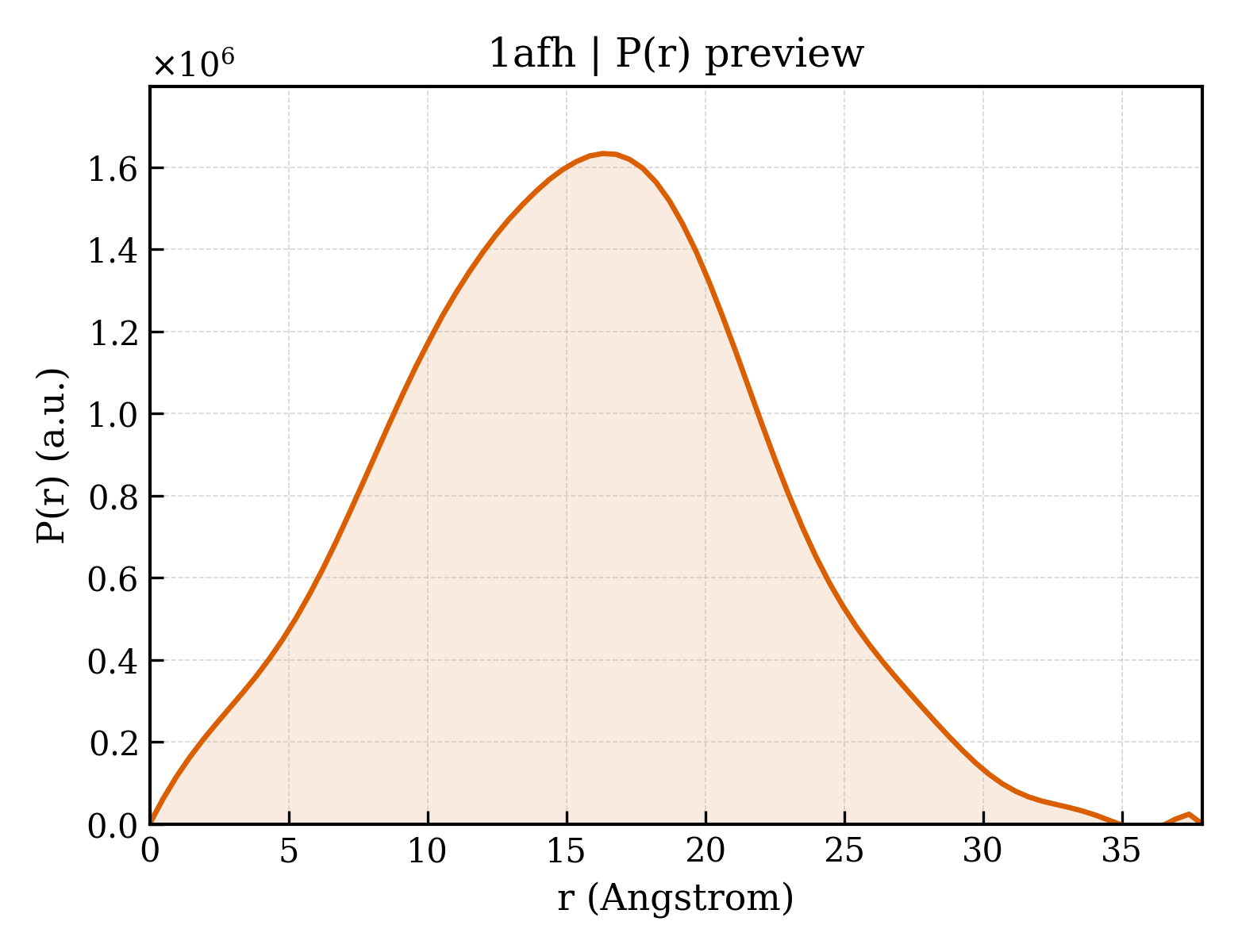

P(r) Distance Distribution P(r) Distribution
