1afx
UGAA EUKARYOTIC RIBOSOMAL RNA TETRALOOP, NMR, 13 STRUCTURES

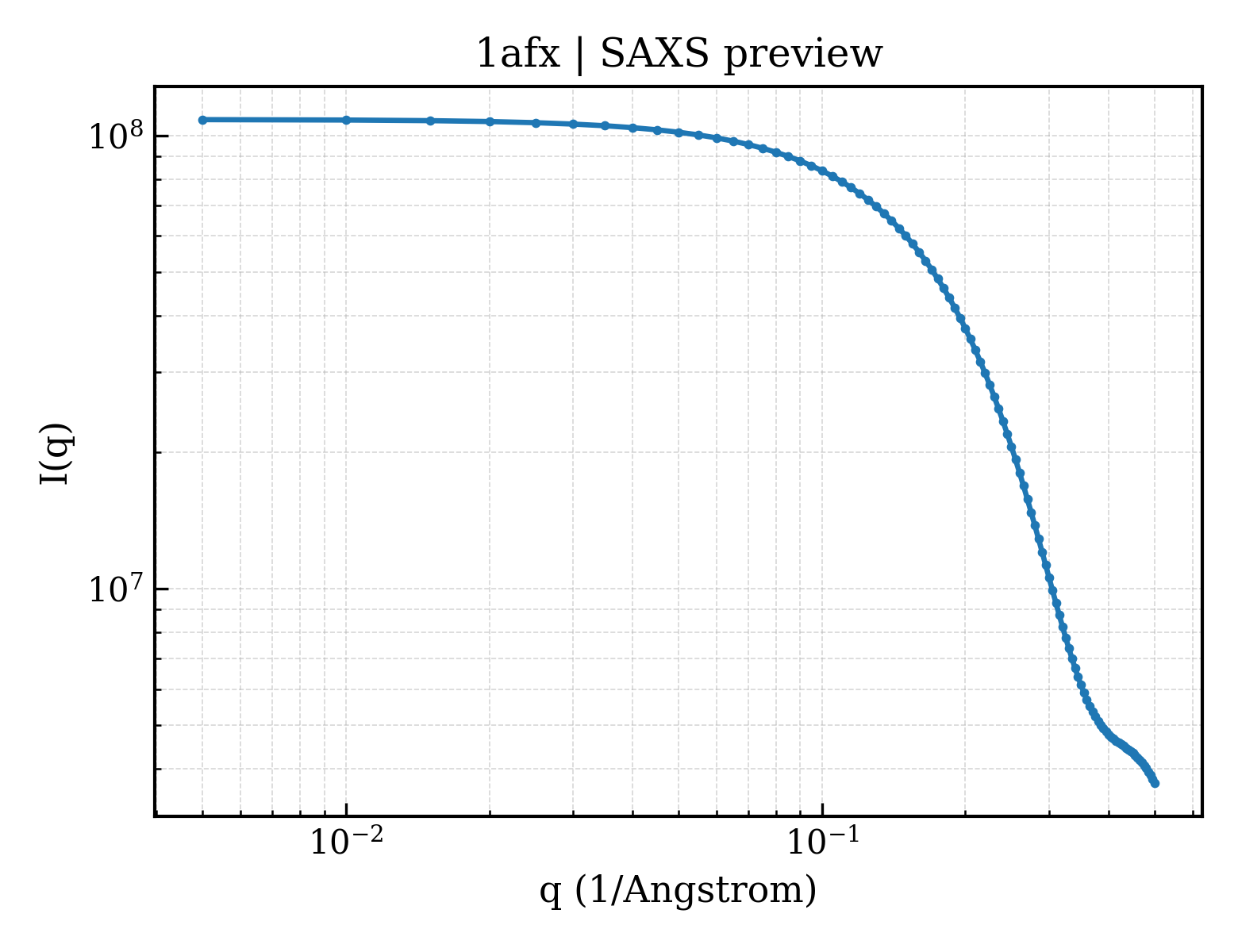

SAXS Profile

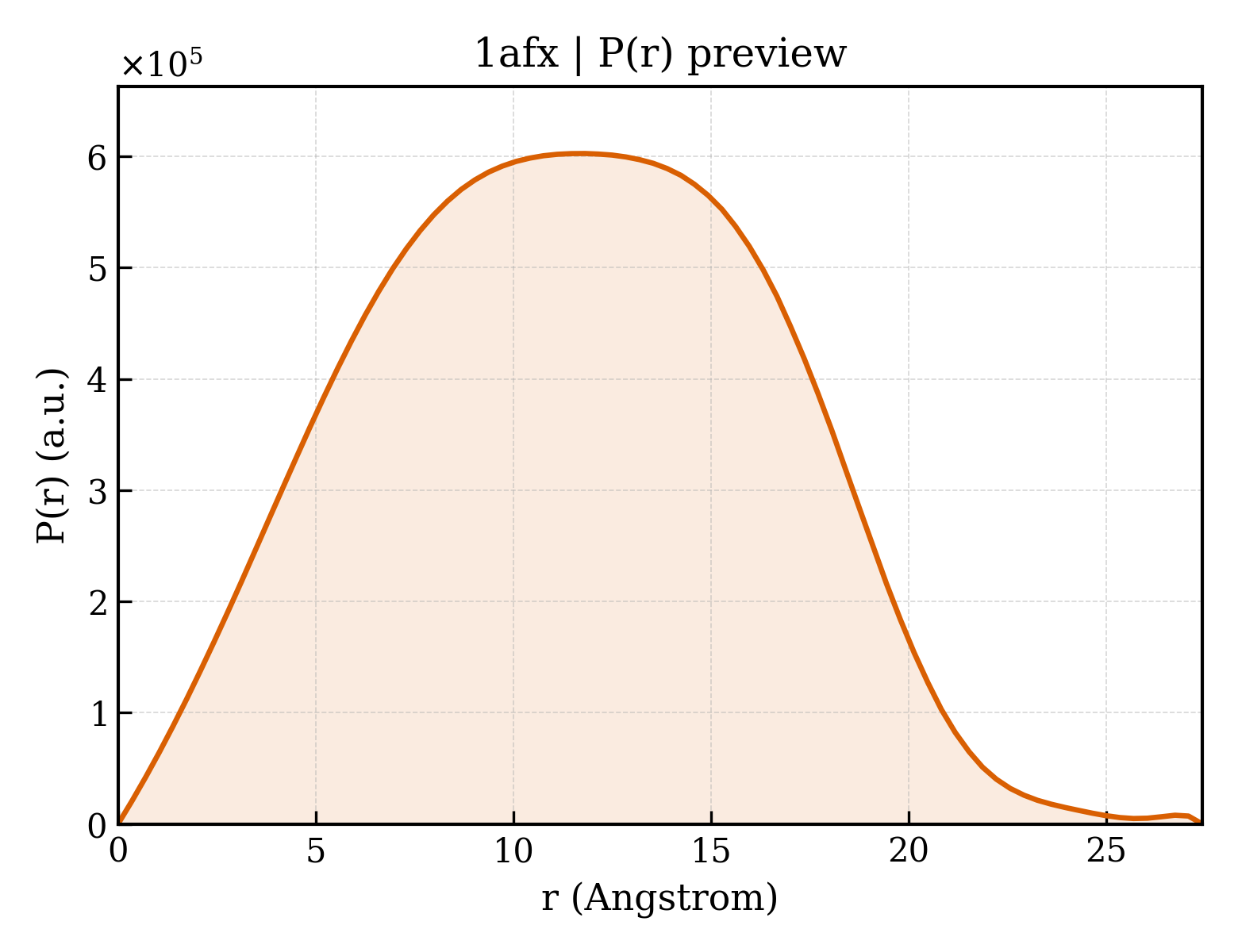

P(r) Distribution
1. Structure Basics
| entry_id | 1afx |
| deposition_date | 1997-03-15 |
| title | UGAA EUKARYOTIC RIBOSOMAL RNA TETRALOOP, NMR, 13 STRUCTURES |
| keywords | RIBONUCLEIC ACID, TETRALOOP, RIBOSOMAL RNA, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 8.84 Å |
| rg_electron | 8.72 Å |
| i0 | 108360000.00 |
| molecular_weight | 49978.0 kDa |
| excluded_volume | 46868 ų |
| envelope_volume | 5345 ų |
| shell_volume | 5400 ų |
| envelope_diameter | 30.7 Å |
| shell_rg | 13.76 Å |
| envelope_rg | 9.47 Å |
| shape_rg | 8.55 Å |
| total_rg | 9.07 Å |
| total_atoms | 5031 |
| n_residues | 156 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 27.4 Å |
| rg_real | 8.80 Å |
| rg_real_error | 0.25 Å |
| i0_real | 1.0840e+08 |
| i0_real_error | 1.0230e+06 |
| rg_reciprocal | 8.80 Å |
| i0_reciprocal | 108400000.0000 |
| total_estimate | 0.9094 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 11.8 Å |
| skewness | 0.048 |
| kurtosis | -0.625 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9003.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.954; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.975 |
