SAXSdb — 1ahn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FLAVODOXIN

Escherichia coli

UniProt P61949

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–175	Not recorded	CA CALCIUM ION × 1 FMN FLAVIN MONONUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7；PROTEIN WAS CRYSTALLIZED IN 30% MPD, 100 MM CACL2, 200 MM PIPES BUFFER, PH 7.0, 295 K.	Resolution 2.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AHN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AG9 FLAVODOXINS THAT ARE REQUIRED FOR ENZYME ACTIVATION: THE STRUCTURE OF OXIDIZED FLAVODOXIN FROM ESCHERICHIA COLI AT 1.8 ANGSTROMS RESOLUTION. Deposited 1997-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–175（175 aa） Chain B 1–175（175 aa）	Not recorded	CA CALCIUM ION × 4 CL CHLORIDE ION × 2 NA SODIUM ION × 4 FMN FLAVIN MONONUCLEOTIDE × 2 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；295 K；PROTEIN WAS CRYSTALLIZED BY MICROSEEDING IN 40% MPD, 100 MM CACL2, 20 MM BIS-TRIS, 10 MM IMIDAZOLE, PH 7.0, 295 K.	Resolution 1.80 Å R-free 0.250

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FLAV_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–175； UniProt 1–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ahn
Deposition date deposition_date	1997-04-07
Structure title title	E. COLI FLAVODOXIN AT 2.6 ANGSTROMS RESOLUTION
Keywords keywords	ELECTRON TRANSPORT, REDUCTIVE ACTIVATION, FLAVODOXIN, FLAVOPROTEIN; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.98 Å
Radius of gyration Rg (electron density) rg_electron	14.63 Å
Forward intensity I(0) i0	7155090.00
Molecular weight molecular_weight	19364.0 kDa
Excluded volume excluded_volume	24025 Å³
Envelope volume envelope_volume	25198 Å³
Hydration-shell volume shell_volume	14292 Å³
Envelope diameter envelope_diameter	48.7 Å
Shell Rg shell_rg	20.87 Å
Envelope Rg envelope_rg	14.90 Å
Shape Rg shape_rg	14.63 Å
Total Rg total_rg	15.73 Å
Total atoms total_atoms	1367
Residues n_residues	169
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	49.6 Å
Rg (real space) rg_real	15.85 Å
Rg uncertainty (real space) rg_real_error	0.24 Å
I(0) (real space) i0_real	7.1550e+06
I(0) uncertainty (real space) i0_real_error	7.4680e+04
Rg (reciprocal space) rg_reciprocal	15.87 Å
I(0) (reciprocal space) i0_reciprocal	7155000.0000
Solution quality estimate total_estimate	0.8970
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.066
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1068000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	FLAVODOXIN
Molecular weight formula_weight	19623.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1420

AITGIFFGSDTGNTENIAKMIQKQLGKDVADVHDIAKSSKEDLEAYDILLLGIPTWYYGEAQCDWDDFFPTLEEIDFNGKLVALFGCGDQEDYAEYFCDALGTIRDIIEPRGATIVGHWPTAGYHFEASKGLADDDHFVGLAIDEDRQPELTAERVEKWVKQISEELHLDEILNA

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FLAVIN MONONUCLEOTIDE
Molecular weight formula_weight	456.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	53

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ahna_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.5 — Flavoproteins
Family Family family	c.23.5.1 — Flavodoxin-related

CATH v4.4 (1 domains)

Domain ID domain_id	1ahnA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	360 — Flavodoxin domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	78.830 Å
Unit-cell length b length_b	78.830 Å
Unit-cell length c length_c	52.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 1 2
Space-group number int_tables_number	149
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1900
R_work r_work	0.1900
R_free r_free	—

fit	/app/data/saxs_computation/ah/1ahn/1ahn.fit
pddf	/app/data/pr_computation/ah/1ahn/1ahn.pr.out
profile	/app/data/saxs_computation/ah/1ahn/1ahn.dat

E. COLI FLAVODOXIN AT 2.6 ANGSTROMS RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

FLAVODOXIN

State in the Current Structure

Other States of the Same Protein in the Database

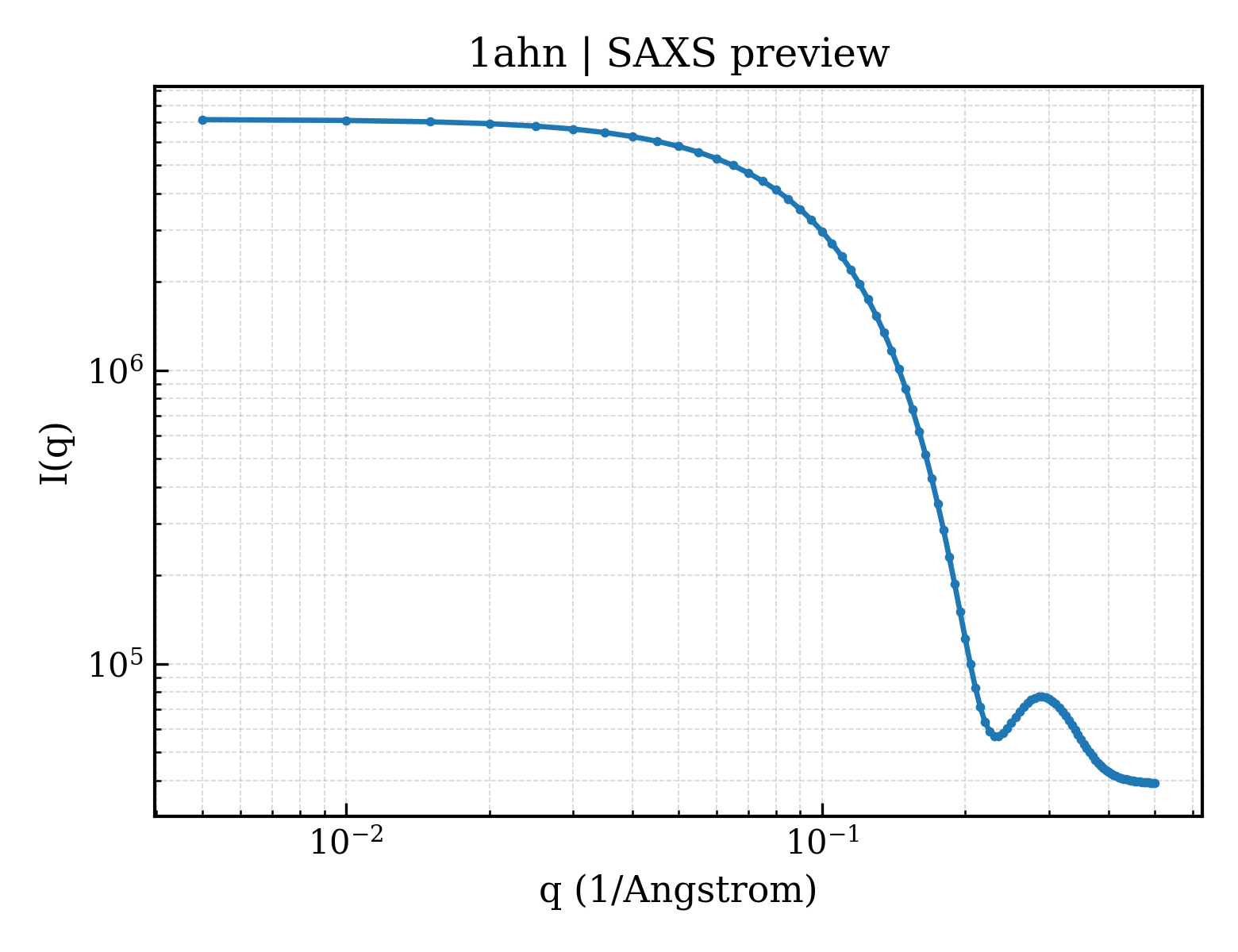

SAXS scattering curve SAXS Profile

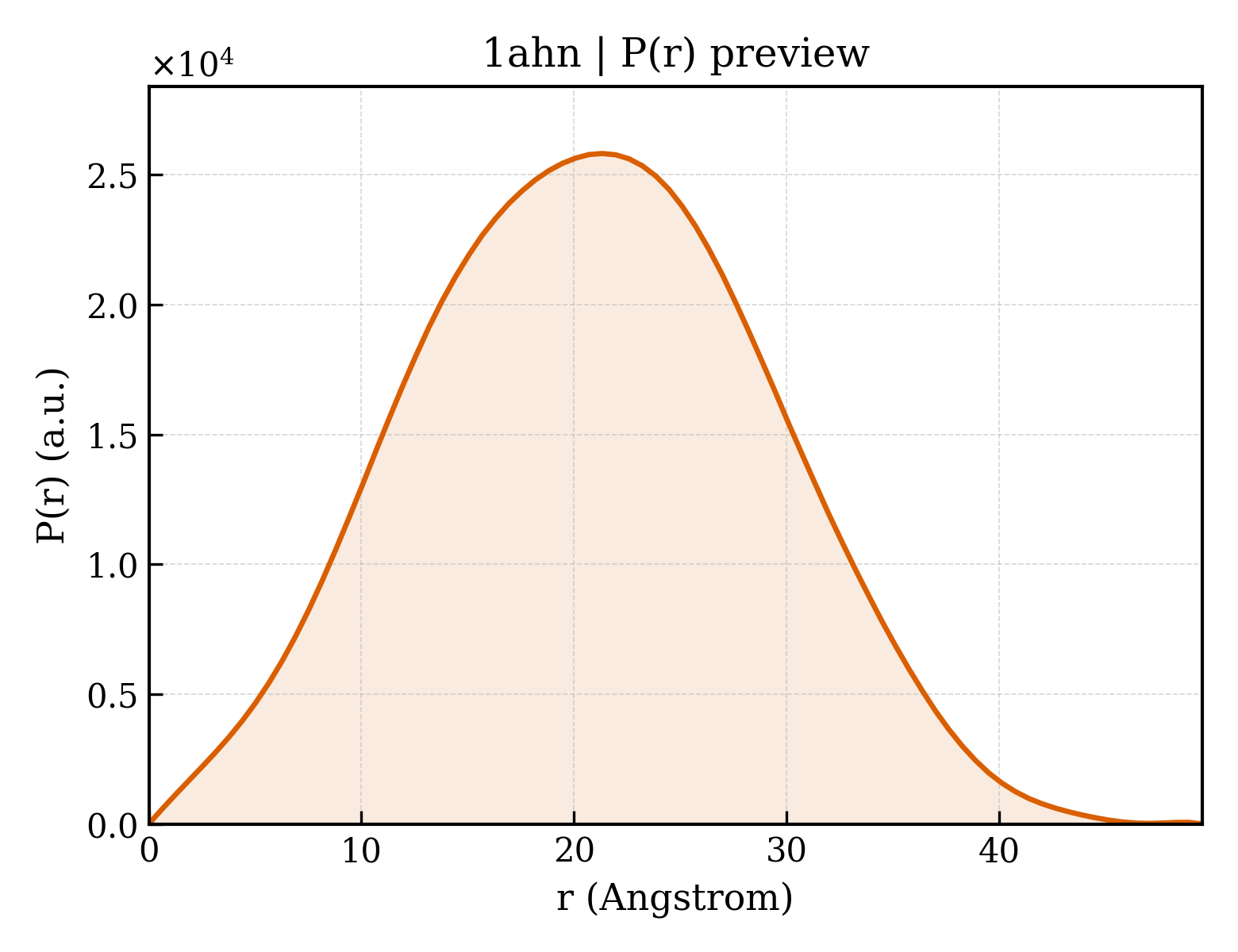

P(r) Distance Distribution P(r) Distribution
