1aj1
NMR STRUCTURE OF THE LANTIBIOTIC ACTAGARDINE

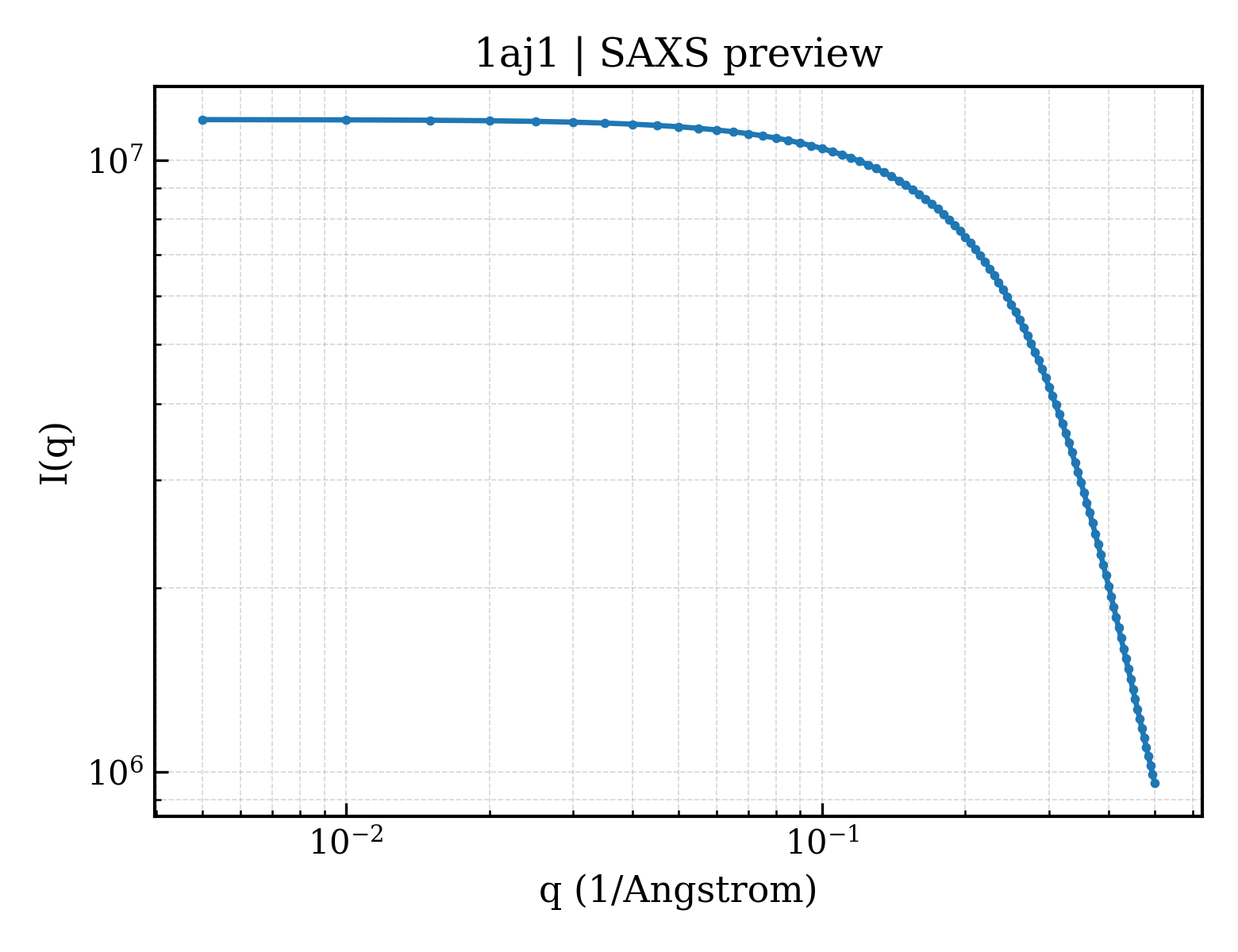

SAXS Profile

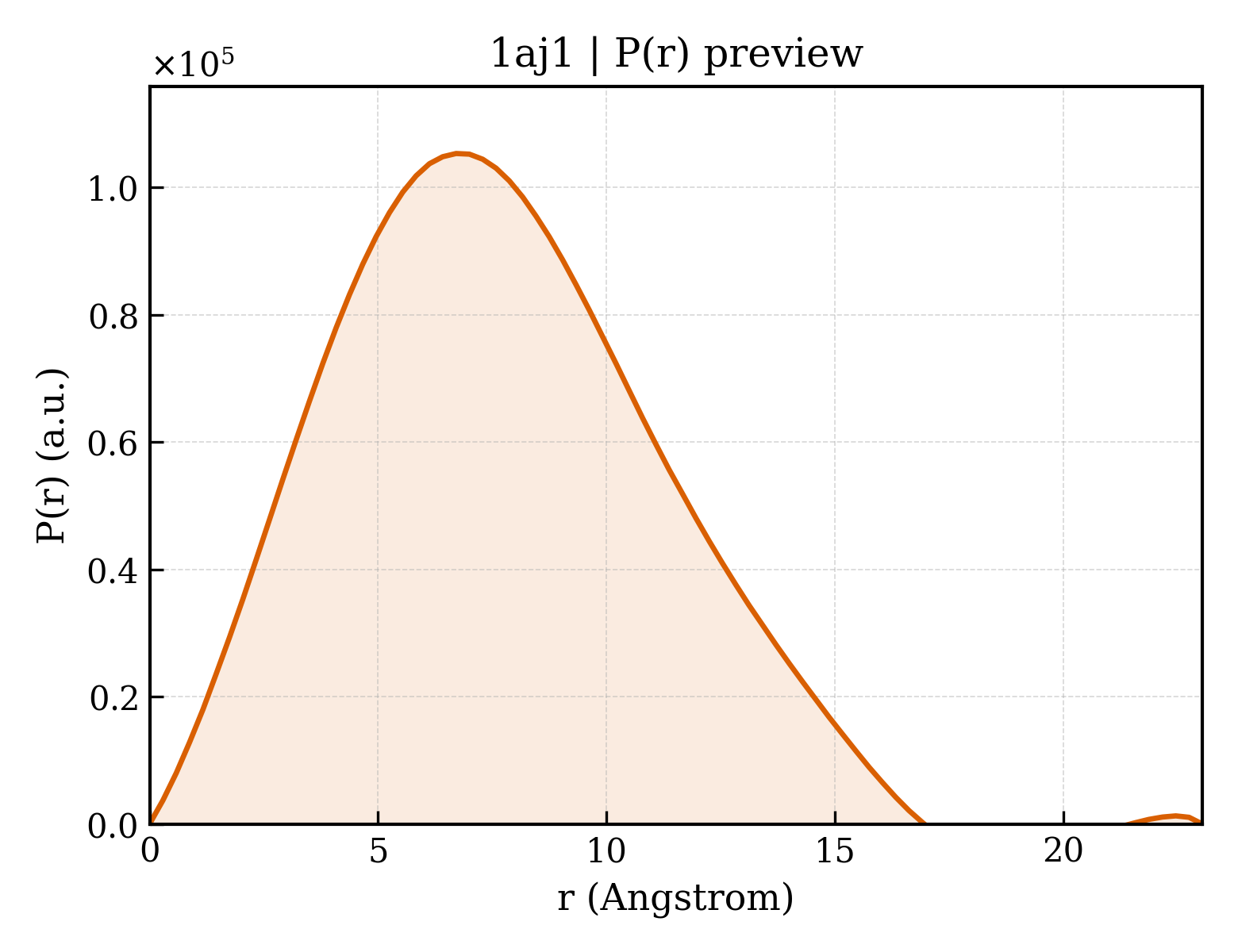

P(r) Distribution
1. Structure Basics
| entry_id | 1aj1 |
| deposition_date | 1997-05-14 |
| title | NMR STRUCTURE OF THE LANTIBIOTIC ACTAGARDINE |
| keywords | ANTIBIOTIC, LANTIBIOTIC, ANTIMICROBIAL, BACTERIOCIN, THIOESTER, TRANSMEMBRANE PORE; ANTIBIOTIC |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 5.74 Å |
| rg_electron | 6.88 Å |
| i0 | 11643500.00 |
| molecular_weight | 28265.0 kDa |
| excluded_volume | 35460 ų |
| envelope_volume | 3074 ų |
| shell_volume | 4027 ų |
| envelope_diameter | 25.3 Å |
| shell_rg | 11.79 Å |
| envelope_rg | 7.72 Å |
| shape_rg | 6.93 Å |
| total_rg | 7.00 Å |
| total_atoms | 3780 |
| n_residues | 225 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 23.0 Å |
| rg_real | 5.69 Å |
| rg_real_error | 0.60 Å |
| i0_real | 1.1640e+07 |
| i0_real_error | 1.4110e+05 |
| rg_reciprocal | 5.70 Å |
| i0_reciprocal | 11640000.0000 |
| total_estimate | 0.7981 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 6.7 Å |
| skewness | -0.165 |
| kurtosis | -1.909 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 796.6000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.613; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.613; Smooth: 0.925 |
