1al4
GRAMICIDIN D FROM BACILLUS BREVIS (N-PROPANOL SOLVATE)

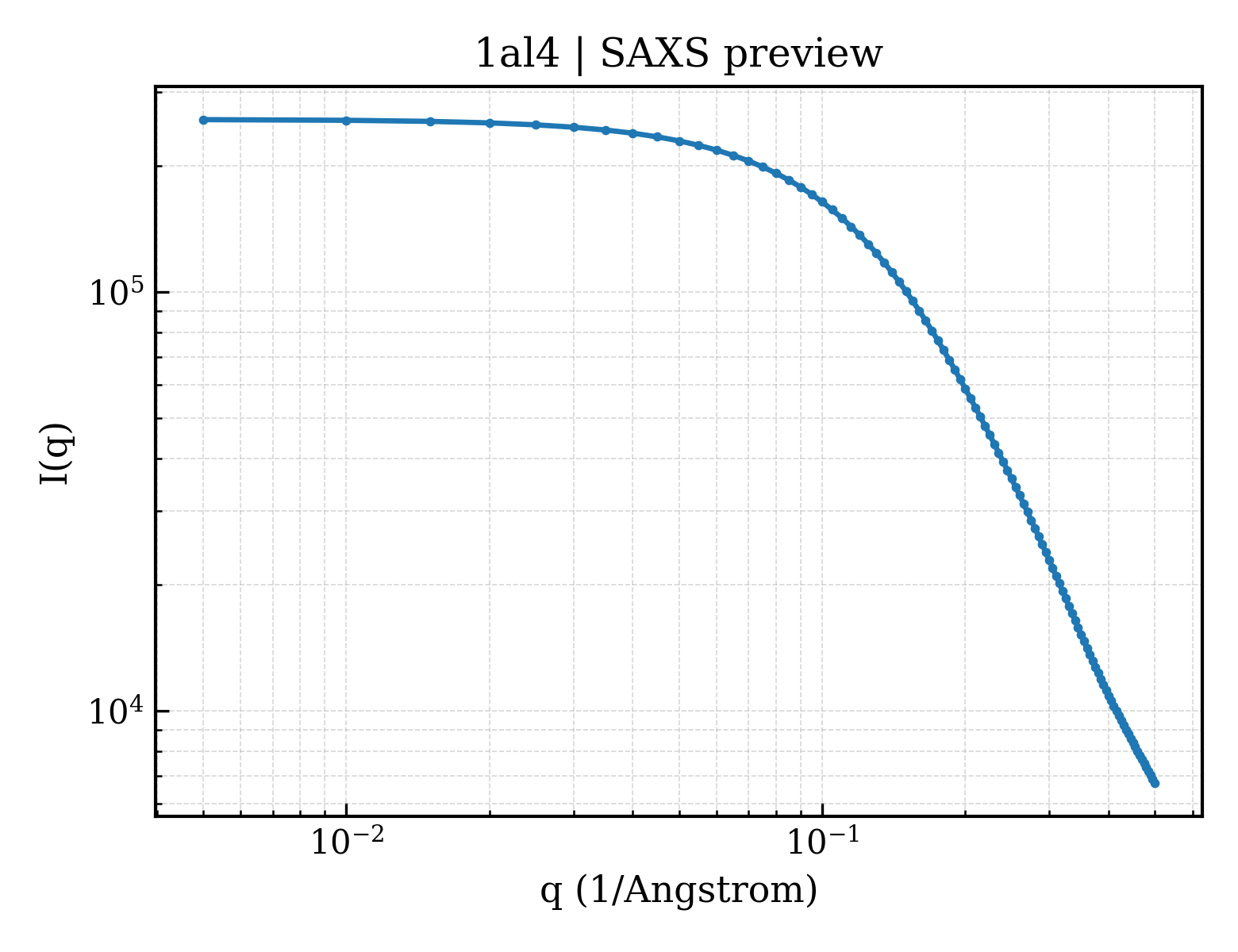

SAXS Profile

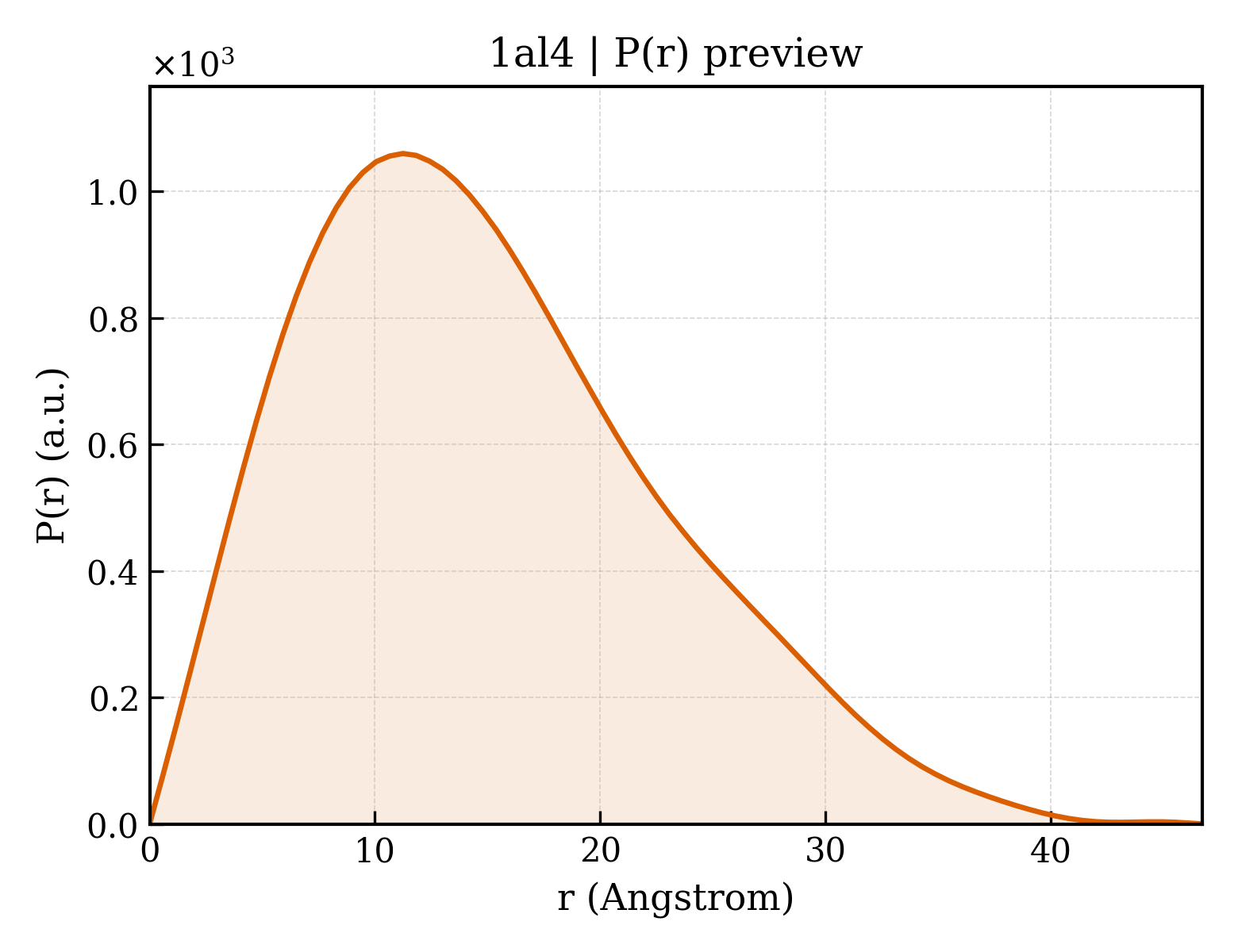

P(r) Distribution
1. Structure Basics
| entry_id | 1al4 |
| deposition_date | 1997-06-11 |
| title | GRAMICIDIN D FROM BACILLUS BREVIS (N-PROPANOL SOLVATE) |
| keywords | ANTIBIOTIC, ANTIFUNGAL, ANTIBACTERIAL, LINEAR GRAMICIDIN, MEMBRANE ION CHANNEL; ANTIBIOTIC |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.75 Å |
| rg_electron | 11.04 Å |
| i0 | 257809.00 |
| molecular_weight | 4380.0 kDa |
| excluded_volume | 6185 ų |
| envelope_volume | 6585 ų |
| shell_volume | 5789 ų |
| envelope_diameter | 42.6 Å |
| shell_rg | 15.34 Å |
| envelope_rg | 11.76 Å |
| shape_rg | 10.90 Å |
| total_rg | 13.38 Å |
| total_atoms | 672 |
| n_residues | 16 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.7 Å |
| rg_real | 11.95 Å |
| rg_real_error | 0.54 Å |
| i0_real | 2.5780e+05 |
| i0_real_error | 3.2150e+03 |
| rg_reciprocal | 11.94 Å |
| i0_reciprocal | 257800.0000 |
| total_estimate | 0.6115 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 11.2 Å |
| skewness | 0.585 |
| kurtosis | -0.117 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 19850.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.570; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.159; Smooth: 0.974 |
