1aqo
IRON RESPONSIVE ELEMENT RNA HAIRPIN, NMR, 15 STRUCTURES

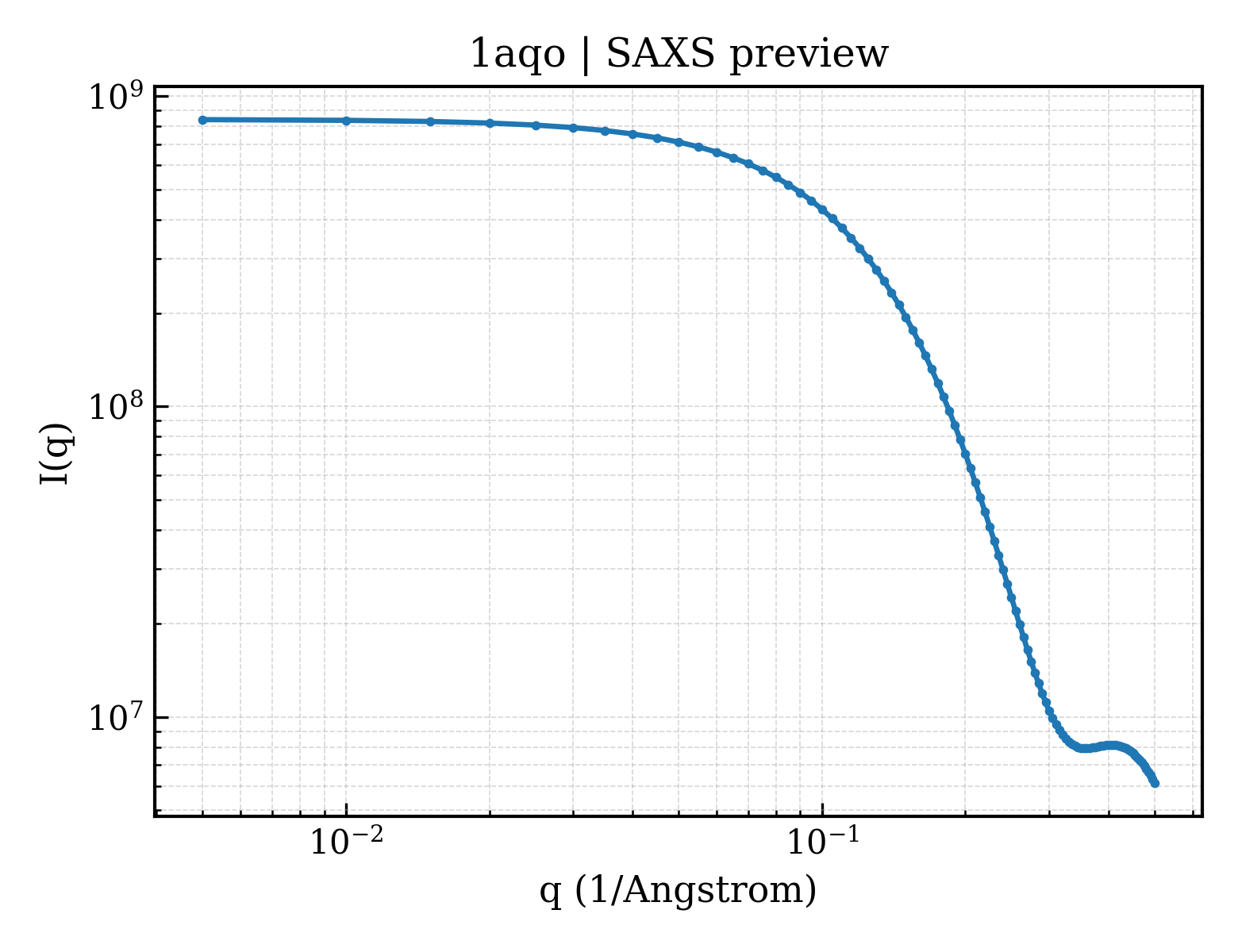

SAXS Profile

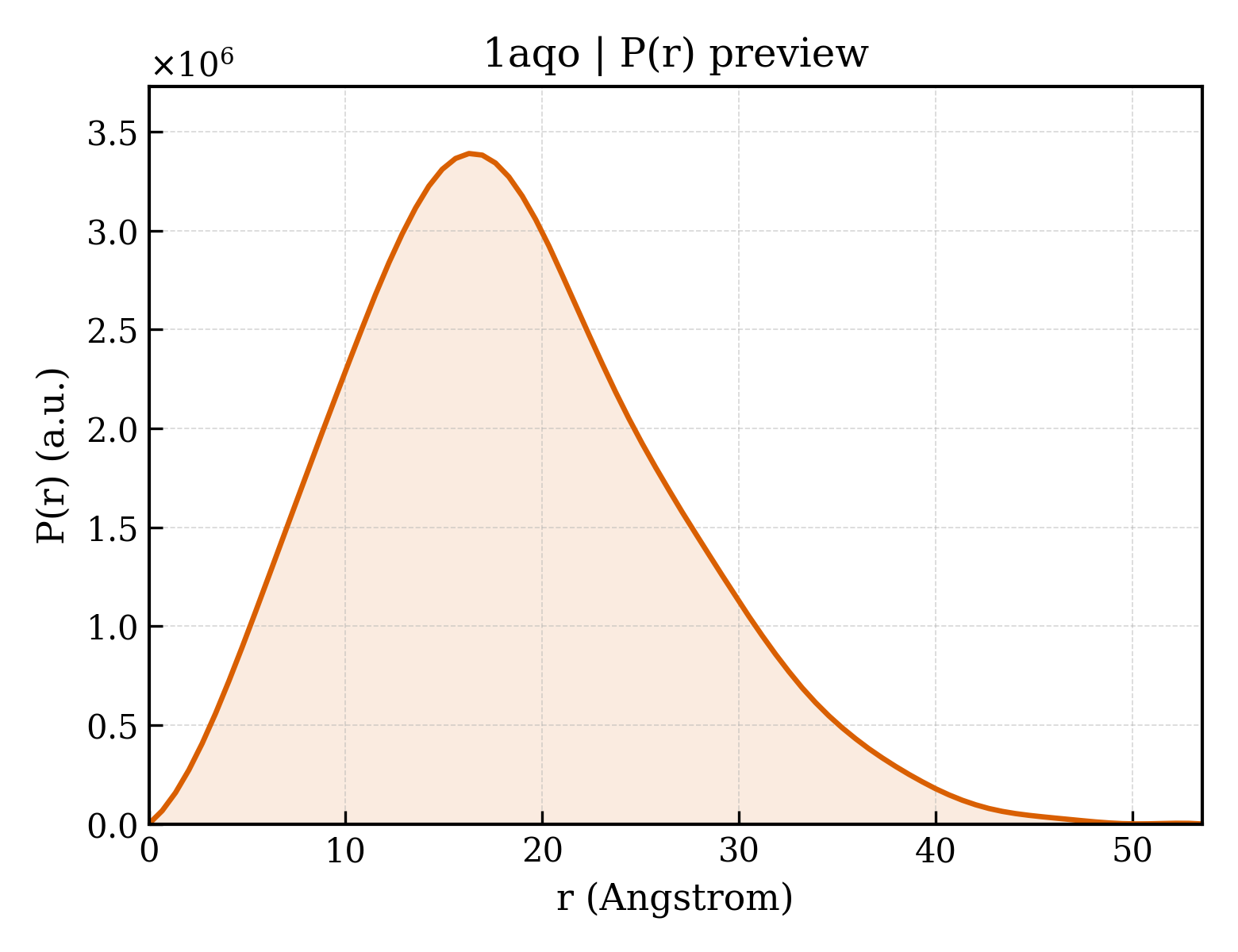

P(r) Distribution
1. Structure Basics
| entry_id | 1aqo |
| deposition_date | 1997-07-31 |
| title | IRON RESPONSIVE ELEMENT RNA HAIRPIN, NMR, 15 STRUCTURES |
| keywords | RIBONUCLEIC ACID, RNA, HAIRPIN, TRANSLATIONAL REGULATION; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.19 Å |
| rg_electron | 14.07 Å |
| i0 | 841059000.00 |
| molecular_weight | 139540.0 kDa |
| excluded_volume | 130730 ų |
| envelope_volume | 28106 ų |
| shell_volume | 14705 ų |
| envelope_diameter | 58.2 Å |
| shell_rg | 22.13 Å |
| envelope_rg | 16.80 Å |
| shape_rg | 13.93 Å |
| total_rg | 14.42 Å |
| total_atoms | 13920 |
| n_residues | 435 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.5 Å |
| rg_real | 14.22 Å |
| rg_real_error | 0.53 Å |
| i0_real | 8.4110e+08 |
| i0_real_error | 9.9170e+06 |
| rg_reciprocal | 14.22 Å |
| i0_reciprocal | 841100000.0000 |
| total_estimate | 0.8077 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.3 Å |
| skewness | 0.455 |
| kurtosis | -0.044 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 449900.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.572; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.780; Smooth: 0.999 |
