1atv
HAIRPIN WITH AGAA TETRALOOP, NMR, 4 STRUCTURES
SAXS Profile

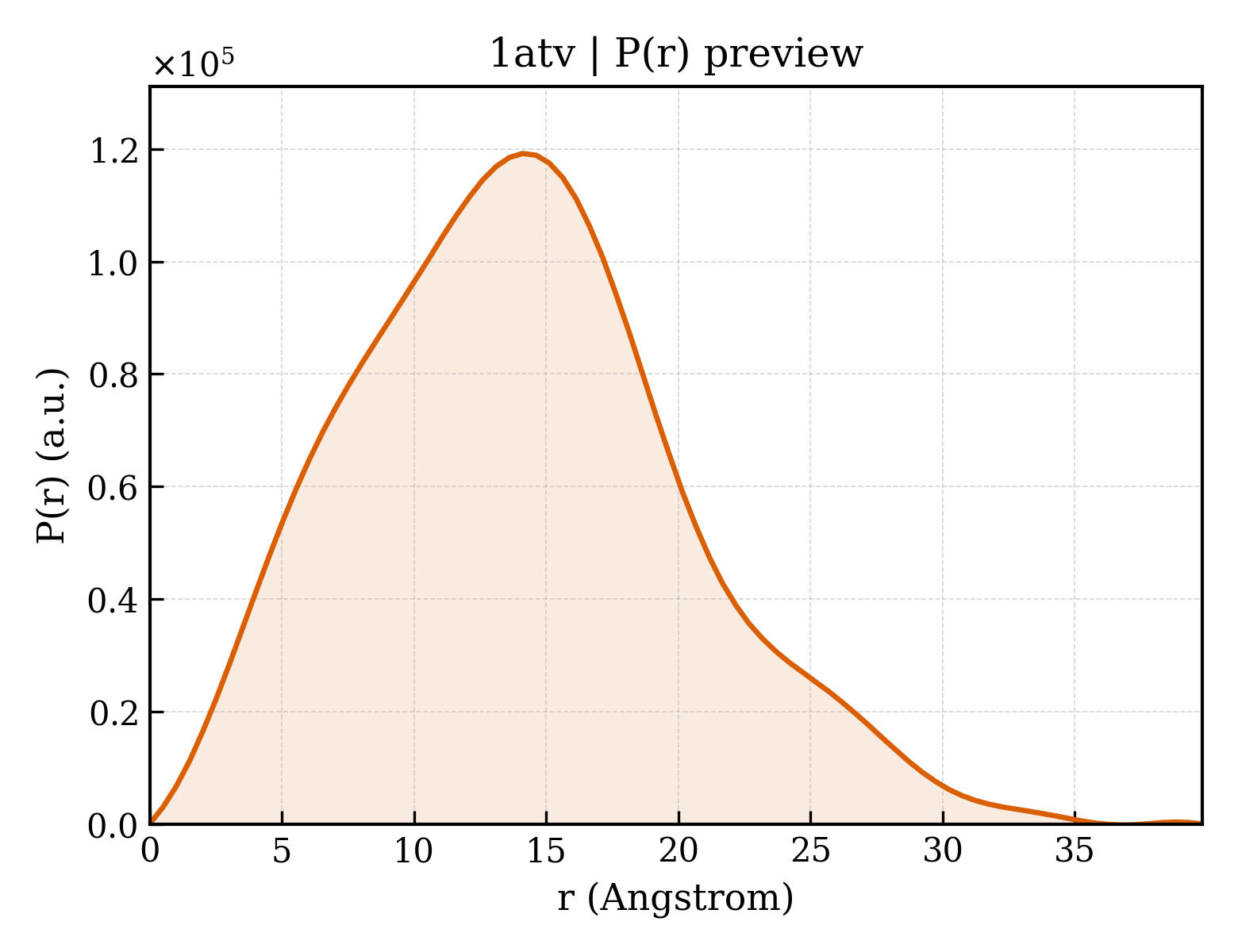

P(r) Distribution
1. Structure Basics
| entry_id | 1atv |
| deposition_date | 1997-08-14 |
| title | HAIRPIN WITH AGAA TETRALOOP, NMR, 4 STRUCTURES |
| keywords | RIBONUCLEIC ACID, RNA, HAIRPIN; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.81 Å |
| rg_electron | 10.58 Å |
| i0 | 22899400.00 |
| molecular_weight | 22074.0 kDa |
| excluded_volume | 20569 ų |
| envelope_volume | 8131 ų |
| shell_volume | 6794 ų |
| envelope_diameter | 40.2 Å |
| shell_rg | 15.71 Å |
| envelope_rg | 11.37 Å |
| shape_rg | 10.42 Å |
| total_rg | 11.10 Å |
| total_atoms | 2216 |
| n_residues | 68 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.8 Å |
| rg_real | 10.83 Å |
| rg_real_error | 0.47 Å |
| i0_real | 2.2900e+07 |
| i0_real_error | 2.5990e+05 |
| rg_reciprocal | 10.83 Å |
| i0_reciprocal | 22900000.0000 |
| total_estimate | 0.8195 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.1 Å |
| skewness | 0.375 |
| kurtosis | -0.088 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 42990.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.604; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.851; Smooth: 0.986 |
