SAXSdb — 1axk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUXYN-1

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 29–213 Chain B； UniProt 29–213	Fragment：FUSION OF 1,3-1,4-BETA-GLUCANASE DOMAIN AND 1,4-BETA-XYLANASE DOMAIN	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.10 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AXK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1XXN Crystal structure of a mesophilic xylanase A from Bacillus subtilis 1A1 Deposited 2004-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa）	Not recorded	SRT S,R MESO-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；0.9M sodium tartrate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.70 Å R-free 0.212
2B42 Crystal structure of the Triticum xylanse inhibitor-I in complex with bacillus subtilis xylanase Deposited 2005-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–213（185 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；0.22 M ammonium sulphate, 0.1 M sodium acetate buffer, 25 % (w/v) polyethylene glycol 4000, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.50 Å R-free 0.240
2B45 Crystal structure of an engineered uninhibited Bacillus subtilis xylanase in free state Deposited 2005-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 29–213（185 aa）	Mutation：D11F/R122D	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；20 % (w/v) polyethylene glycol 8000, 0.1 M HEPES buffer, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.00 Å R-free 0.195
2B46 Crystal structure of an engineered uninhibited Bacillus subtilis xylanase in substrate bound state Deposited 2005-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain X 29–213（185 aa）	Mutation：D11F/R122D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20 % (w/v) polyethylene glycol 8000, 0.1 M HEPES buffer, pH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.21 Å R-free 0.198
2DCY Crystal structure of Bacillus subtilis family-11 xylanase Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa）	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 TLA L(+)-TARTARIC ACID × 1 TAR D(-)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1M Imidazole, 1.0-1.1K/Na tartrate, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.217
2DCY Crystal structure of Bacillus subtilis family-11 xylanase Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–213（185 aa）	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 TLA L(+)-TARTARIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1M Imidazole, 1.0-1.1K/Na tartrate, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.217
2DCY Crystal structure of Bacillus subtilis family-11 xylanase Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 29–213（185 aa）	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 TLA L(+)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1M Imidazole, 1.0-1.1K/Na tartrate, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.217
2DCY Crystal structure of Bacillus subtilis family-11 xylanase Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 29–213（185 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1M Imidazole, 1.0-1.1K/Na tartrate, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.217
2DCY Crystal structure of Bacillus subtilis family-11 xylanase Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 29–213（185 aa）	Not recorded	TLA L(+)-TARTARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1M Imidazole, 1.0-1.1K/Na tartrate, pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.40 Å R-free 0.217
2DCZ Thermal Stabilization of Bacillus subtilis Family-11 Xylanase By Directed Evolution Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa）	Mutation：Q7H, N8F, S179C	SO4 SULFATE ION × 1 DIO 1,4-DIETHYLENE DIOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, 1.1-1.2M ammonium sulfate, 10% deoxane, 25mM DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.223
2DCZ Thermal Stabilization of Bacillus subtilis Family-11 Xylanase By Directed Evolution Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–213（185 aa）	Mutation：Q7H, N8F, S179C	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, 1.1-1.2M ammonium sulfate, 10% deoxane, 25mM DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.223
2DCZ Thermal Stabilization of Bacillus subtilis Family-11 Xylanase By Directed Evolution Deposited 2006-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 29–213（185 aa）	Mutation：Q7H, N8F, S179C	SO4 SULFATE ION × 3 DIO 1,4-DIETHYLENE DIOXIDE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M MES, 1.1-1.2M ammonium sulfate, 10% deoxane, 25mM DTT, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.223
2QZ3 Crystal structure of a glycoside hydrolase family 11 xylanase from Bacillus subtilis in complex with xylotetraose Deposited 2007-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa）	Mutation：E172A	ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.2M ammonium sulphate, 0.1M Tris-HCl pH 8.5, 30% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.188
2QZ3 Crystal structure of a glycoside hydrolase family 11 xylanase from Bacillus subtilis in complex with xylotetraose Deposited 2007-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–213（185 aa）	Mutation：E172A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；0.2M ammonium sulphate, 0.1M Tris-HCl pH 8.5, 30% isopropanol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.80 Å R-free 0.188
2Z79 High resolution crystal structure of a glycoside hydrolase family 11 xylanase of Bacillus subtilis Deposited 2007-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa）	Mutation：E172A	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1M imidazole pH 6.5, 1.0M sodium acetate trihydrate, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.30 Å R-free 0.176
2Z79 High resolution crystal structure of a glycoside hydrolase family 11 xylanase of Bacillus subtilis Deposited 2007-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–213（185 aa）	Mutation：E172A	GOL GLYCEROL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.1M imidazole pH 6.5, 1.0M sodium acetate trihydrate, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.30 Å R-free 0.176
3HD8 Crystal structure of the Triticum aestivum xylanase inhibitor-IIA in complex with bacillus subtilis xylanase Deposited 2009-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 29–213（185 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；18% (w/v) polyethylene glycol 4000, 0.18M ammonium sulfate, 0.1M sodium acetate buffer , pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.39 Å R-free 0.275
3HD8 Crystal structure of the Triticum aestivum xylanase inhibitor-IIA in complex with bacillus subtilis xylanase Deposited 2009-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 29–213（185 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；277 K；18% (w/v) polyethylene glycol 4000, 0.18M ammonium sulfate, 0.1M sodium acetate buffer , pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.39 Å R-free 0.275
5K9Y Crystal structure of a thermophilic xylanase A from Bacillus subtilis 1A1 quadruple mutant Q7H/G13R/S22P/S179C Deposited 2016-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 29–213（185 aa） Fragment：residues 29-213	Mutation：Q7H, G13R, S22P, S179C Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1 M HEPES and 0.6 M sodium tartrate	Resolution 2.20 Å R-free 0.248
5K9Y Crystal structure of a thermophilic xylanase A from Bacillus subtilis 1A1 quadruple mutant Q7H/G13R/S22P/S179C Deposited 2016-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 29–213（185 aa） Fragment：residues 29-213	Mutation：Q7H, G13R, S22P, S179C Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；0.1 M HEPES and 0.6 M sodium tartrate	Resolution 2.20 Å R-free 0.248
5TVV Computationally Designed Fentanyl Binder - Fen49* Apo Deposited 2016-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–213（184 aa） Fragment：UNP residues 30-213	Mutation：Y88A	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.79 Å R-free 0.225
5TVV Computationally Designed Fentanyl Binder - Fen49* Apo Deposited 2016-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–213（184 aa） Fragment：UNP residues 30-213	Mutation：Y88A	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.79 Å R-free 0.225
5TVV Computationally Designed Fentanyl Binder - Fen49* Apo Deposited 2016-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 30–213（184 aa） Fragment：UNP residues 30-213	Mutation：Y88A	K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.79 Å R-free 0.225
5TVY Computationally Designed Fentanyl Binder - Fen49 Deposited 2016-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–213（184 aa） Fragment：UNP residues 30-213	Not recorded	XPE 3,6,9,12,15,18,21,24,27-NONAOXANONACOSANE-1,29-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；1ul of protein at 20mg/ml mixed with 1ul of mother liquor, plus 0.2ul of a seed stock made from a previous crystallization drop. Crystallization condition is 0.1M Citric Acid pH 3.5, 25% PEG 3350.	Resolution 1.00 Å R-free 0.121
5TVY Computationally Designed Fentanyl Binder - Fen49 Deposited 2016-11-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–213（184 aa） Fragment：UNP residues 30-213	Not recorded	XPE 3,6,9,12,15,18,21,24,27-NONAOXANONACOSANE-1,29-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3.5；293.15 K；1ul of protein at 20mg/ml mixed with 1ul of mother liquor, plus 0.2ul of a seed stock made from a previous crystallization drop. Crystallization condition is 0.1M Citric Acid pH 3.5, 25% PEG 3350.	Resolution 1.00 Å R-free 0.121
5TZO Computationally Designed Fentanyl Binder - Fen49*-Complex Deposited 2016-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–213（184 aa） Fragment：UNP residues 30-213	Not recorded	7V7 N-phenyl-N-[1-(2-phenylethyl)piperidin-4-yl]propanamide × 2 K POTASSIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.67 Å R-free 0.203
5TZO Computationally Designed Fentanyl Binder - Fen49*-Complex Deposited 2016-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–213（184 aa） Fragment：UNP residues 30-213	Not recorded	7V7 N-phenyl-N-[1-(2-phenylethyl)piperidin-4-yl]propanamide × 2 K POTASSIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.67 Å R-free 0.203
5TZO Computationally Designed Fentanyl Binder - Fen49*-Complex Deposited 2016-11-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 30–213（184 aa） Fragment：UNP residues 30-213	Not recorded	7V7 N-phenyl-N-[1-(2-phenylethyl)piperidin-4-yl]propanamide × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；0.8M sodium phosphate, 0.8M potassium phosphate, 0.1M HEPES pH 7.5	Resolution 1.67 Å R-free 0.203

13 other PDB entries and 28 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	XYNA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 157–341； UniProt 29–213 Author chain B； PDBConstruct 157–341； UniProt 29–213

GLUXYN-1

Bacillus subtilis

UniProt P23904

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 82–237 Chain B； UniProt 82–237	Fragment：FUSION OF 1,3-1,4-BETA-GLUCANASE DOMAIN AND 1,4-BETA-XYLANASE DOMAIN	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.5；pH 8.5	Resolution 2.10 Å R-free 0.224

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AXK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AJK CIRCULARLY PERMUTED (1-3,1-4)-BETA-D-GLUCAN 4-GLUCANOHYDROLASE CPA16M-84 Deposited 1997-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 107–237（131 aa）	Not recorded	CA CALCIUM ION × 1 PO4 PHOSPHATE ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；SITTING DROP METHOD: A SOLUTION OF 12 MG OF PROTEIN PER ML IN 10 MM HEPES, PH 7.0, 2 MM CA-CHLORIDE, MIXED WITH AN EQUAL VOLUME OF 50 MM K-PHOSPHATE, PH 7.0 AND 20% (BY WEIGHT) PEG 8000, vapor diffusion - sitting drop	Resolution 1.80 Å R-free 0.219
1AJK CIRCULARLY PERMUTED (1-3,1-4)-BETA-D-GLUCAN 4-GLUCANOHYDROLASE CPA16M-84 Deposited 1997-05-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 107–237（131 aa）	Not recorded	CA CALCIUM ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；SITTING DROP METHOD: A SOLUTION OF 12 MG OF PROTEIN PER ML IN 10 MM HEPES, PH 7.0, 2 MM CA-CHLORIDE, MIXED WITH AN EQUAL VOLUME OF 50 MM K-PHOSPHATE, PH 7.0 AND 20% (BY WEIGHT) PEG 8000, vapor diffusion - sitting drop	Resolution 1.80 Å R-free 0.219
1AJO CIRCULARLY PERMUTED (1-3,1-4)-BETA-D-GLUCAN 4-GLUCANOHYDROLASE CPA16M-127 Deposited 1997-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–149（149 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；HANGING DROP METHOD: A SOLUTION OF 18 MG OF PROTEIN PER ML IN 20 MM TRIS/HCL, PH 9.0, 2 MM CA-CHLORIDE, MIXED WITH AN EQUAL VOLUME OF 0.1 M IMIDAZOLE, PH7.5,2 MM CA-CHLORIDE, 10% (BY WEIGHT) PEG 8000 AND 8% (BY VOL.) ETHYLENE GLYCOL., vapor diffusion - hanging drop	Resolution 2.07 Å R-free 0.235
1AJO CIRCULARLY PERMUTED (1-3,1-4)-BETA-D-GLUCAN 4-GLUCANOHYDROLASE CPA16M-127 Deposited 1997-05-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–149（149 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；HANGING DROP METHOD: A SOLUTION OF 18 MG OF PROTEIN PER ML IN 20 MM TRIS/HCL, PH 9.0, 2 MM CA-CHLORIDE, MIXED WITH AN EQUAL VOLUME OF 0.1 M IMIDAZOLE, PH7.5,2 MM CA-CHLORIDE, 10% (BY WEIGHT) PEG 8000 AND 8% (BY VOL.) ETHYLENE GLYCOL., vapor diffusion - hanging drop	Resolution 2.07 Å R-free 0.235
1CPM NATIVE-LIKE IN VIVO FOLDING OF A CIRCULARLY PERMUTED JELLYROLL PROTEIN SHOWN BY CRYSTAL STRUCTURE ANALYSIS Deposited 1994-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 82–237（156 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1CPN NATIVE-LIKE IN VIVO FOLDING OF A CIRCULARLY PERMUTED JELLYROLL PROTEIN SHOWN BY CRYSTAL STRUCTURE ANALYSIS Deposited 1994-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 82–237（156 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1GLH CATION BINDING TO A BACILLUS (1,3-1,4)-BETA-GLUCANASE. GEOMETRY, AFFINITY AND EFFECT ON PROTEIN STABILITY Deposited 1994-11-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–239（214 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.225
1MAC CRYSTAL STRUCTURE AND SITE-DIRECTED MUTAGENESIS OF BACILLUS MACERANS ENDO-1,3-1,4-BETA-GLUCANASE Deposited 1994-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–239（212 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1MAC CRYSTAL STRUCTURE AND SITE-DIRECTED MUTAGENESIS OF BACILLUS MACERANS ENDO-1,3-1,4-BETA-GLUCANASE Deposited 1994-12-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 28–239（212 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1U0A Crystal structure of the engineered beta-1,3-1,4-endoglucanase H(A16-M) in complex with beta-glucan tetrasaccharide Deposited 2004-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 40–237（198 aa）	Mutation：E105Q, E109Q	CA CALCIUM ION × 1 ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；25% (v/v) PEG Monomethyl Ether 550, 0.01 M Zinc Sulfate heptahydrate, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 1.64 Å R-free 0.197
1U0A Crystal structure of the engineered beta-1,3-1,4-endoglucanase H(A16-M) in complex with beta-glucan tetrasaccharide Deposited 2004-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 40–237（198 aa）	Mutation：E105Q, E109Q	CA CALCIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；25% (v/v) PEG Monomethyl Ether 550, 0.01 M Zinc Sulfate heptahydrate, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 1.64 Å R-free 0.197
1U0A Crystal structure of the engineered beta-1,3-1,4-endoglucanase H(A16-M) in complex with beta-glucan tetrasaccharide Deposited 2004-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 40–237（198 aa）	Mutation：E105Q, E109Q	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；25% (v/v) PEG Monomethyl Ether 550, 0.01 M Zinc Sulfate heptahydrate, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 1.64 Å R-free 0.197
1U0A Crystal structure of the engineered beta-1,3-1,4-endoglucanase H(A16-M) in complex with beta-glucan tetrasaccharide Deposited 2004-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 40–237（198 aa）	Mutation：E105Q, E109Q	CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；25% (v/v) PEG Monomethyl Ether 550, 0.01 M Zinc Sulfate heptahydrate, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 1.64 Å R-free 0.197
1U0A Crystal structure of the engineered beta-1,3-1,4-endoglucanase H(A16-M) in complex with beta-glucan tetrasaccharide Deposited 2004-07-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 40–237（198 aa） Chain B 40–237（198 aa） Chain C 40–237（198 aa） Chain D 40–237（198 aa）	Mutation：E105Q, E109Q Mutation：E105Q, E109Q Mutation：E105Q, E109Q Mutation：E105Q, E109Q	CA CALCIUM ION × 4 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；293 K；25% (v/v) PEG Monomethyl Ether 550, 0.01 M Zinc Sulfate heptahydrate, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K, pH 6.50	Resolution 1.64 Å R-free 0.197
2AYH CRYSTAL AND MOLECULAR STRUCTURE AT 1.6 ANGSTROMS RESOLUTION OF THE HYBRID BACILLUS ENDO-1,3-1,4-BETA-D-GLUCAN 4-GLUCANOHYDROLASE H(A16-M) Deposited 1995-02-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–239（214 aa）	Not recorded	CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å

8 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GUB_PAEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–156； UniProt 82–237 Author chain B； PDBConstruct 1–156； UniProt 82–237

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1axk
Deposition date deposition_date	1997-10-16
Structure title title	ENGINEERED BACILLUS BIFUNCTIONAL ENZYME GLUXYN-1
Keywords keywords	GLUXYN-1, BIFUNCTIONAL, FUSION PROTEIN, 1, 4-BETA-XYLANASE, 3-1, 4-BETA-GLUCANASE, HYBRID ENZYME; FUSION PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.84 Å
Radius of gyration Rg (electron density) rg_electron	34.19 Å
Forward intensity I(0) i0	122102000.00
Molecular weight molecular_weight	87548.0 kDa
Excluded volume excluded_volume	108550 Å³
Envelope volume envelope_volume	138300 Å³
Hydration-shell volume shell_volume	34371 Å³
Envelope diameter envelope_diameter	112.1 Å
Shell Rg shell_rg	40.01 Å
Envelope Rg envelope_rg	33.41 Å
Shape Rg shape_rg	34.15 Å
Total Rg total_rg	34.73 Å
Total atoms total_atoms	6212
Residues n_residues	787
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

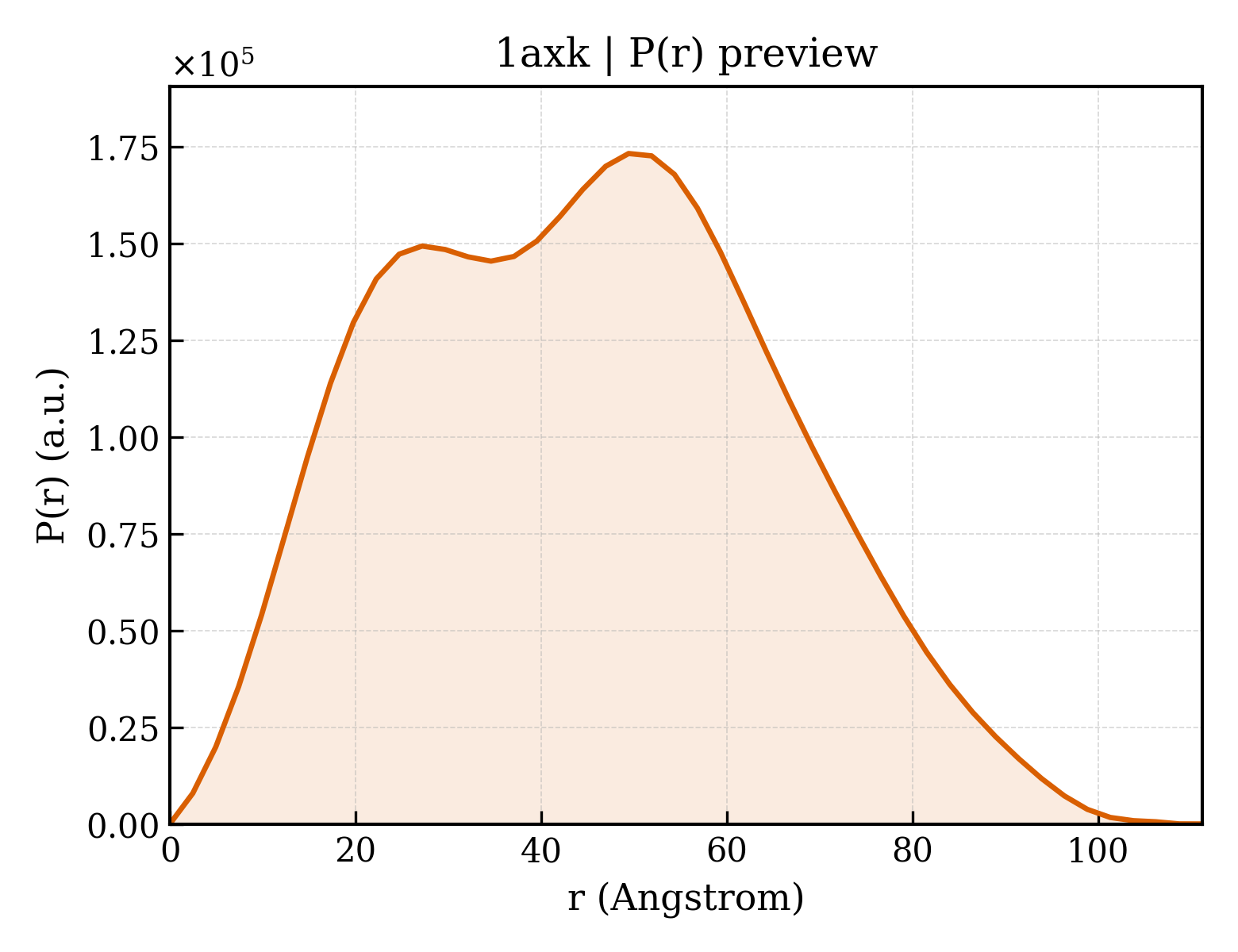

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	111.2 Å
Rg (real space) rg_real	34.82 Å
Rg uncertainty (real space) rg_real_error	0.90 Å
I(0) (real space) i0_real	1.2210e+08
I(0) uncertainty (real space) i0_real_error	1.9890e+06
Rg (reciprocal space) rg_reciprocal	34.84 Å
I(0) (reciprocal space) i0_reciprocal	122100000.0000
Solution quality estimate total_estimate	0.6699
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	49.4 Å
Skewness Skewness skewness	0.178
Kurtosis Kurtosis kurtosis	-0.658
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	42130000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.960; Smooth: 0.871

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUXYN-1
Molecular weight formula_weight	43812.7 kDa
EC 编号 ec_number	3.2.1.73, 3.2.1.8
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6533

FDCAEYRSTNIYGYGLYEVSMKPAKNTGIVSSFFTYTGPAHGTQWDEIDIEFLGKDTTKVQFNYYTNGVGGHEKVISLGFDASKGFHTYAFDWQPGYIKWYVDGVLKHTATANIPSTPGKIMMNLWNGTGVDDWLGSYNGANPLYAEYDWVKYTSNASTDYWQNWTDGGGIVNAVNGSGGNYSVNWSNTGNFVVGKGWTTGSPFRTINYNAGVWAPNGNGYLTLYGWTRSPLIEYYVVDSWGTYRPTGTYKGTVKSDGGTYDIYTTTRYNAPSIDGDRTTFTQYWSVRQSKRPTGSNATITFSNHVNAWKSHGMNLGSNWAYQVMATEGYQSSGSSNVTVWGSVFWEPKSYFNPSTWEKADGYSNGGVFNCTWRANNVNFTNDGKLKLGLTSSA

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	312

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1axka1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.2 — Glycosyl hydrolases family 16

Domain ID domain_id	d1axka2
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.11 — Xylanase/endoglucanase 11/12

Domain ID domain_id	d1axkb1
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.2 — Glycosyl hydrolases family 16

Domain ID domain_id	d1axkb2
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.11 — Xylanase/endoglucanase 11/12

CATH v4.4 (4 domains)

Domain ID domain_id	1axkA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1axkA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	180 — Glycoside hydrolase family 11/12, catalytic domain

Domain ID domain_id	1axkB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

Domain ID domain_id	1axkB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	180 — Glycoside hydrolase family 11/12, catalytic domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	45.270 Å
Unit-cell length b length_b	133.700 Å
Unit-cell length c length_c	77.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.76 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.1770
R_work r_work	0.1760
R_free r_free	0.2240

fit	/app/data/saxs_computation/ax/1axk/1axk.fit
pddf	/app/data/pr_computation/ax/1axk/1axk.pr.out
profile	/app/data/saxs_computation/ax/1axk/1axk.dat
