1b5s
DIHYDROLIPOYL TRANSACETYLASE (E.C.2.3.1.12) CATALYTIC DOMAIN (RESIDUES 184-425) FROM BACILLUS STEAROTHERMOPHILUS

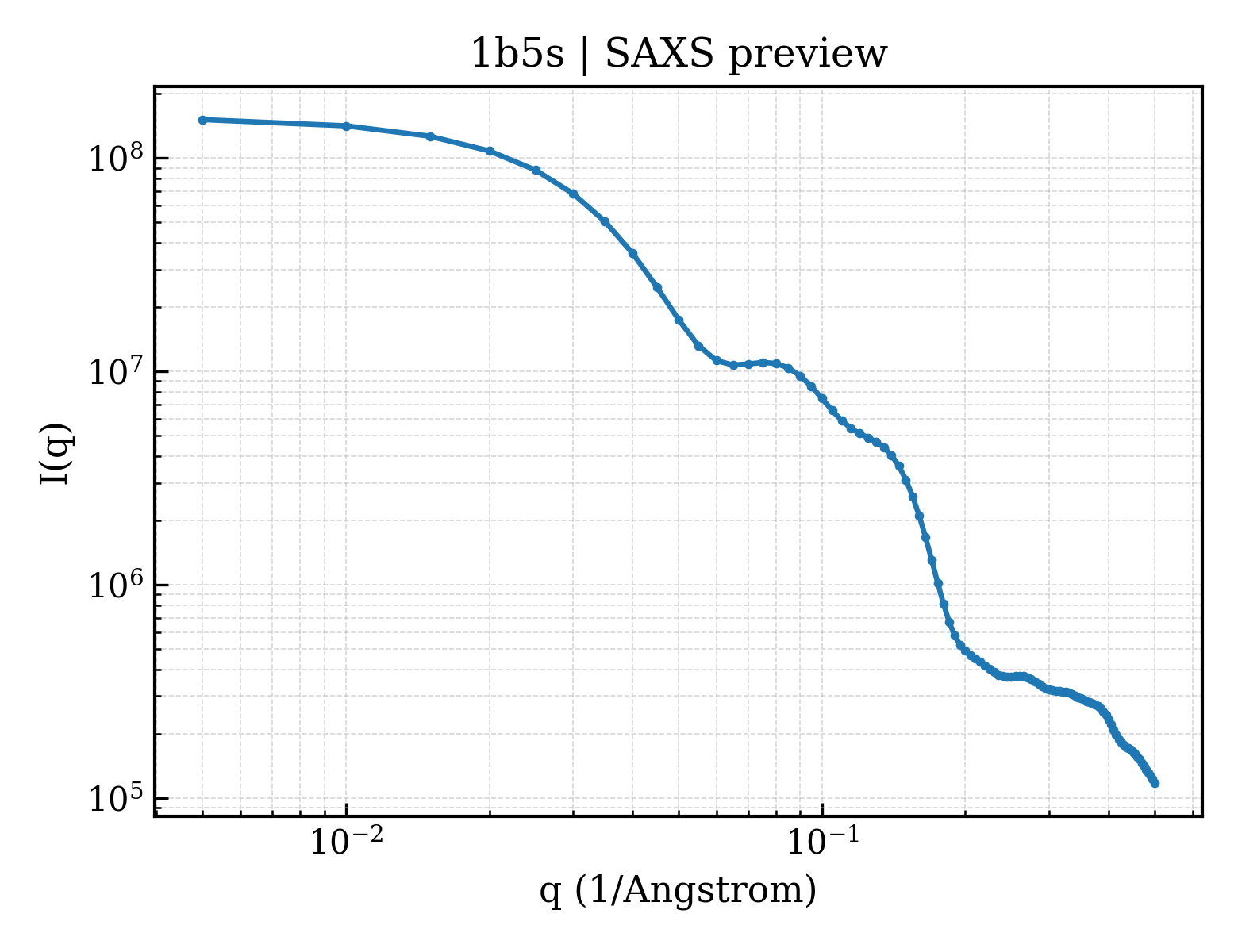

SAXS Profile

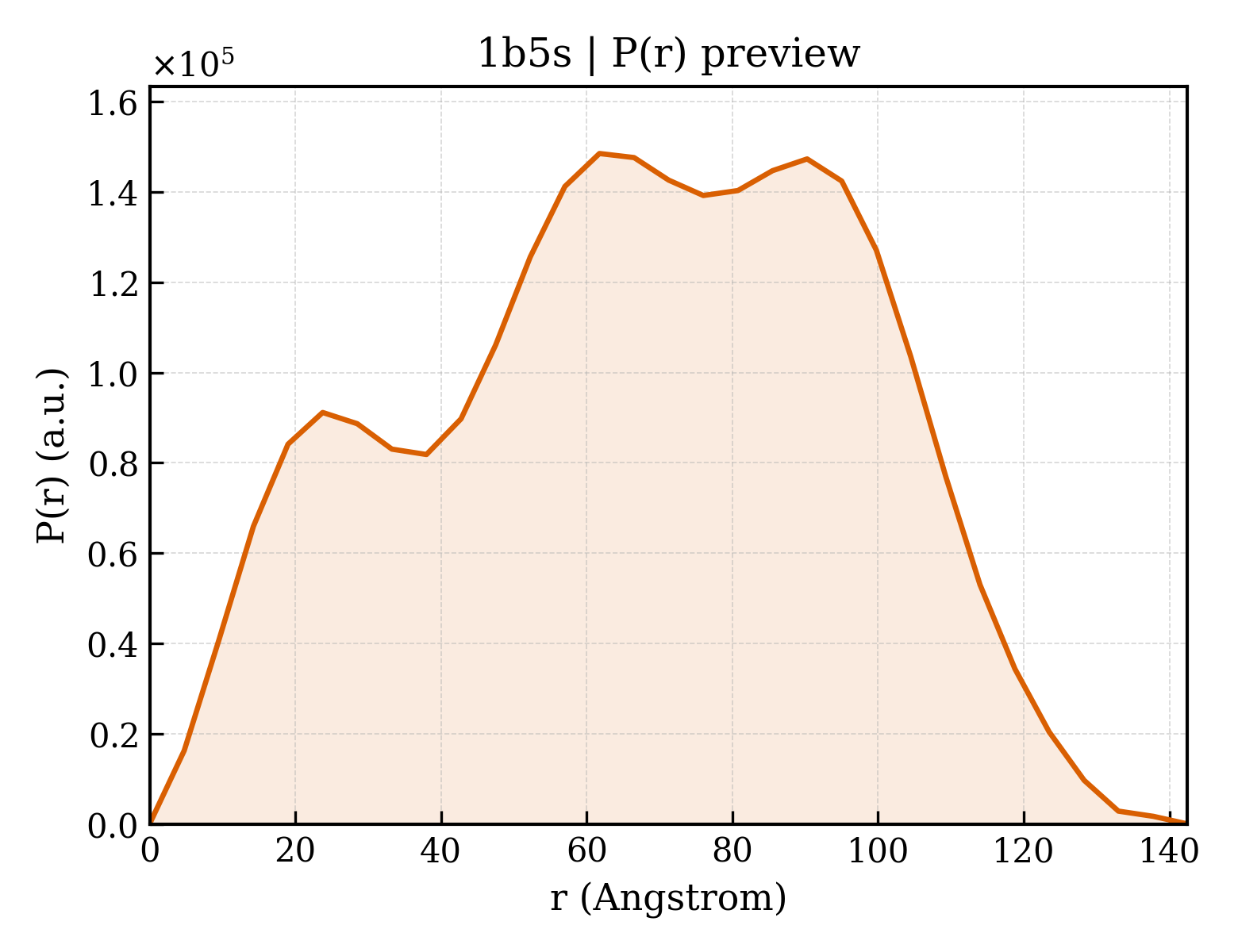

P(r) Distribution
1. Structure Basics
| entry_id | 1b5s |
| deposition_date | 1999-01-10 |
| title | DIHYDROLIPOYL TRANSACETYLASE (E.C.2.3.1.12) CATALYTIC DOMAIN (RESIDUES 184-425) FROM BACILLUS STEAROTHERMOPHILUS |
| keywords | DIHYDROLIPOYL TRANSACETYLASE, PYRUVATE DEHYDROGENASE, E2P, DIHYDROLIPOYL ACETYLTRANSFERASE, ACYLTRANSFERASE; ACYLTRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 51.83 Å |
| rg_electron | 51.43 Å |
| i0 | 155013000.00 |
| molecular_weight | 83738.0 kDa |
| excluded_volume | 96450 ų |
| envelope_volume | 264020 ų |
| shell_volume | 43735 ų |
| envelope_diameter | 147.6 Å |
| shell_rg | 57.10 Å |
| envelope_rg | 46.38 Å |
| shape_rg | 51.43 Å |
| total_rg | 51.67 Å |
| total_atoms | 5980 |
| n_residues | 1210 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 142.5 Å |
| rg_real | 51.62 Å |
| rg_real_error | 1.13 Å |
| i0_real | 1.5500e+08 |
| i0_real_error | 2.8130e+06 |
| rg_reciprocal | 51.97 Å |
| i0_reciprocal | 155100000.0000 |
| total_estimate | 0.8030 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 61.8 Å |
| skewness | -0.163 |
| kurtosis | -0.838 |
| angular_range | — – 0.1500 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4767000.0000 |
| n_real_points | 31 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.822; Smooth: 0.000 |
