1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-1,4-GLUCAN-4-GLUCANOHYDROLASE

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 42–466	Mutation：E208Q	;alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-beta-D-glucopyranose ; × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 10% PEG 3350, 3.5 MM CALCIUM CHLORIDE, 10 MM TRIS/HCL, PH 7.5.	Resolution 2.50 Å R-free 0.252

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BAG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1UA7 Crystal Structure Analysis of Alpha-Amylase from Bacillus Subtilis complexed with Acarbose Deposited 2003-03-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 45–466（422 aa） Fragment：residues 4-425	Mutation：N356Q	ACI 6-AMINO-4-HYDROXYMETHYL-CYCLOHEX-4-ENE-1,2,3-TRIOL × 2 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；PEG 3350, calcium chloride, Tris-HCl, acarbose, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.21 Å R-free 0.265

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMY_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–425； UniProt 42–466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bag
Deposition date deposition_date	1998-01-30
Structure title title	ALPHA-AMYLASE FROM BACILLUS SUBTILIS COMPLEXED WITH MALTOPENTAOSE
Keywords keywords	ALPHA-AMYLASE, BACILLUS SUBTILIS, MALTOPENTAOSE, CATALYTIC-SITE MUTANT; ALPHA-AMYLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.87 Å
Radius of gyration Rg (electron density) rg_electron	21.81 Å
Forward intensity I(0) i0	41907500.00
Molecular weight molecular_weight	47963.0 kDa
Excluded volume excluded_volume	58886 Å³
Envelope volume envelope_volume	65719 Å³
Hydration-shell volume shell_volume	25176 Å³
Envelope diameter envelope_diameter	79.8 Å
Shell Rg shell_rg	28.93 Å
Envelope Rg envelope_rg	22.06 Å
Shape Rg shape_rg	21.79 Å
Total Rg total_rg	22.62 Å
Total atoms total_atoms	3381
Residues n_residues	425
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.4 Å
Rg (real space) rg_real	22.85 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	4.1910e+07
I(0) uncertainty (real space) i0_real_error	5.6060e+05
Rg (reciprocal space) rg_reciprocal	22.86 Å
I(0) (reciprocal space) i0_reciprocal	41910000.0000
Solution quality estimate total_estimate	0.8650
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	77.2 Å
Skewness Skewness skewness	0.394
Kurtosis Kurtosis kurtosis	-0.140
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11400000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.759; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ALPHA-1,4-GLUCAN-4-GLUCANOHYDROLASE
Molecular weight formula_weight	47067.3 kDa
EC 编号 ec_number	3.2.1.1
Mutation mutation	E208Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3527

LTAPSIKSGTILHAWNWSFNTLKHNMKDIHDAGYTAIQTSPINQVKEGNQGDKSMSNWYWLYQPTSYQIGNRYLGTEQEFKEMCAAAEEYGIKVIVDAVINHTTFDYAAISNEVKSIPNWTHGNTQIKNWSDRWDVTQNSLLGLYDWNTQNTQVQSYLKRFLERALNDGADGFRFDAAKHIELPDDGSYGSQFWPNITNTSAEFQYGQILQDSASRDAAYANYMDVTASNYGHSIRSALKNRNLGVSNISHYASDVSADKLVTWVESHDTYANDDEESTWMSDDDIRLGWAVIASRSGSTPLFFSRPEGGGNGVRFPGKSQIGDRGSALFEDQAITAVNRFHNVMAGQPEELSNPNGNNQIFMNQRGSHGVVLANAGSSSVSINTATKLPDGRYDNKAGAGSFQVNDGKLTGTINARSVAVLYPD

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Bacillus subtilis

Entity 2 Entity 2 branched

Description description	;alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose-(1-4)-beta-D-glucopyranose ;
Molecular weight formula_weight	828.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1baga1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.1 — alpha-Amylases, C-terminal beta-sheet domain

Domain ID domain_id	d1baga2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1bagA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1bagA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

8. Citations (4)

▶

Unit-cell length a length_a	72.590 Å
Unit-cell length b length_b	74.060 Å
Unit-cell length c length_c	117.010 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	7.000 Å
R factor r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2520

fit	/app/data/saxs_computation/ba/1bag/1bag.fit
pddf	/app/data/pr_computation/ba/1bag/1bag.pr.out
profile	/app/data/saxs_computation/ba/1bag/1bag.dat

ALPHA-AMYLASE FROM BACILLUS SUBTILIS COMPLEXED WITH MALTOPENTAOSE

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-1,4-GLUCAN-4-GLUCANOHYDROLASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

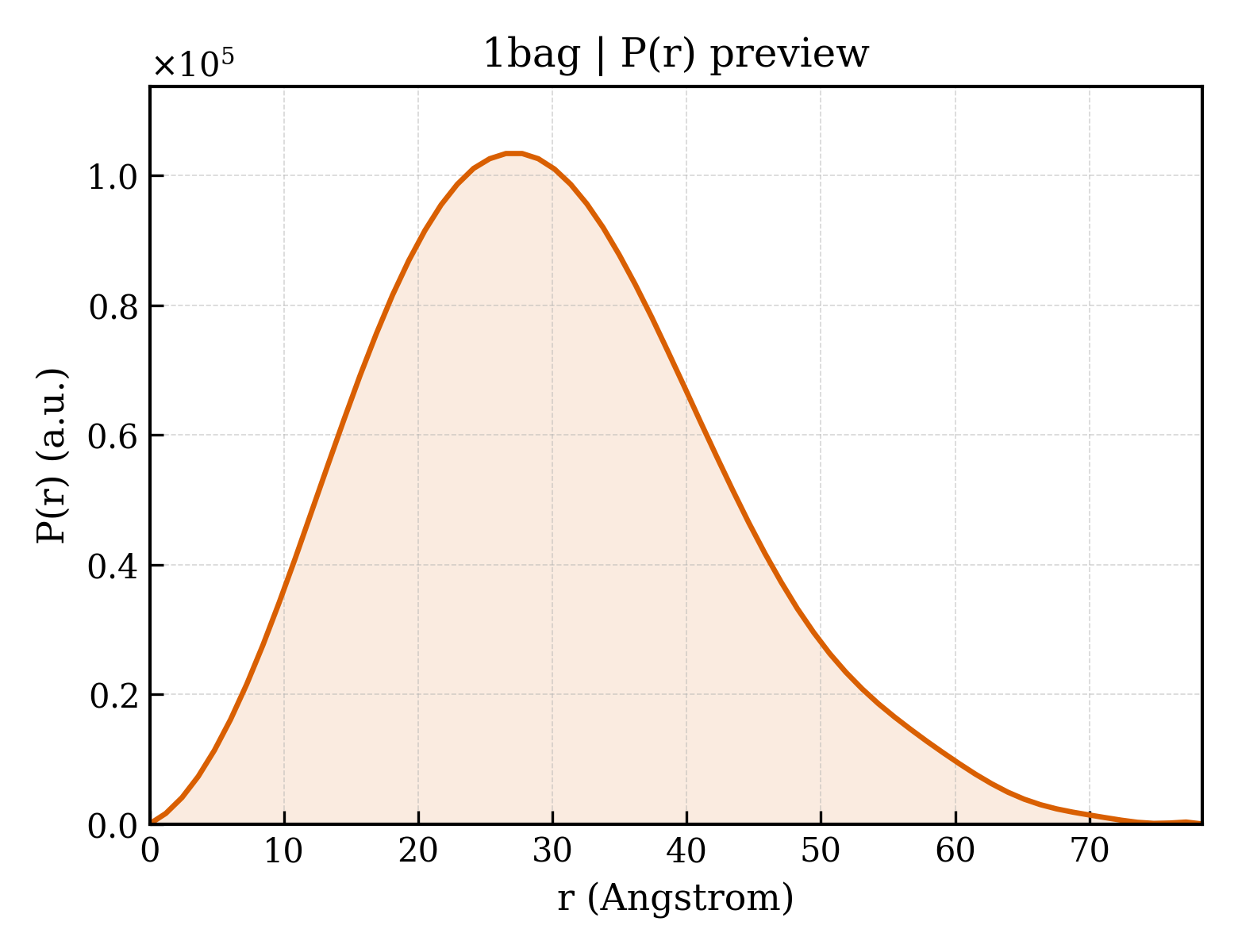

P(r) Distance Distribution P(r) Distribution
