SAXSdb — 1bai

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEASE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 578–701 Chain B； UniProt 578–701	Not recorded	0Q4 N-[(2R)-2-({N~5~-[amino(iminio)methyl]-L-ornithyl-L-valyl}amino)-4-methylpentyl]-L-phenylalanyl-L-alpha-glutamyl-L-alanyl-L-norleucinamide × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.40 Å R-free 0.293

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	O92805_9RETR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–124； UniProt 578–701 Author chain B； PDBConstruct 1–124； UniProt 578–701

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bai
Deposition date deposition_date	1998-04-17
Structure title title	Crystal structure of Rous sarcoma virus protease in complex with inhibitor
Keywords keywords	PROTEIN-MEDIATED INTERACTION, VIRAL MATURATION, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.14 Å
Radius of gyration Rg (electron density) rg_electron	19.53 Å
Forward intensity I(0) i0	23502700.00
Molecular weight molecular_weight	26480.0 kDa
Excluded volume excluded_volume	27207 Å³
Envelope volume envelope_volume	40959 Å³
Hydration-shell volume shell_volume	18316 Å³
Envelope diameter envelope_diameter	73.5 Å
Shell Rg shell_rg	25.23 Å
Envelope Rg envelope_rg	19.72 Å
Shape Rg shape_rg	19.65 Å
Total Rg total_rg	19.95 Å
Total atoms total_atoms	2403
Residues n_residues	248
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

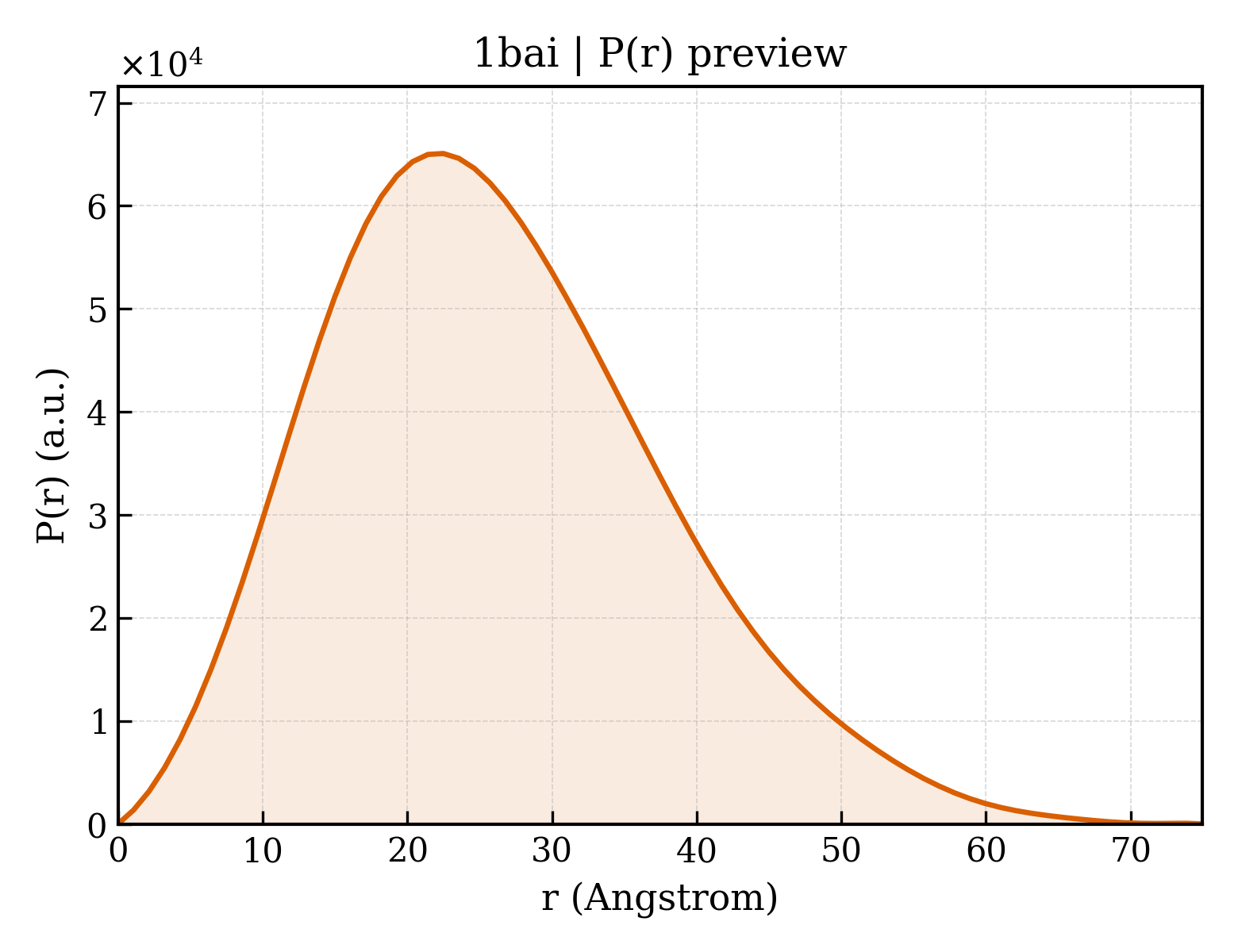

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	75.0 Å
Rg (real space) rg_real	20.19 Å
Rg uncertainty (real space) rg_real_error	0.59 Å
I(0) (real space) i0_real	2.3500e+07
I(0) uncertainty (real space) i0_real_error	3.3800e+05
Rg (reciprocal space) rg_reciprocal	20.18 Å
I(0) (reciprocal space) i0_reciprocal	23500000.0000
Solution quality estimate total_estimate	0.8209
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.5 Å
Skewness Skewness skewness	0.493
Kurtosis Kurtosis kurtosis	-0.015
Angular range angular_range	— – 0.3950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5323000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.596; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.879; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1baia_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

Domain ID domain_id	d1baib_
Class class	b — All beta proteins
Fold Fold fold	b.50 — Acid proteases
Superfamily Superfamily superfamily	b.50.1 — Acid proteases
Family Family family	b.50.1.1 — Retroviral protease (retropepsin)

CATH v4.4 (2 domains)

Domain ID domain_id	1baiA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

Domain ID domain_id	1baiB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	70 — Cathepsin D, subunit A; domain 1
Homologous superfamily homologous superfamily	10 — Acid Proteases

▶

8. Citations (1)

▶

Unit-cell length a length_a	62.610 Å
Unit-cell length b length_b	62.610 Å
Unit-cell length c length_c	132.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1750
R_work r_work	0.1750
R_free r_free	0.2930

Description description	PROTEASE
Molecular weight formula_weight	13648.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2658

Crystal structure of Rous sarcoma virus protease in complex with inhibitor

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEASE

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	;N-[(2R)-2-({N~5~-[amino(iminio)methyl]-L-ornithyl-L-valyl}amino)-4-methylpentyl]-L-phenylalanyl-L-alpha-glutamyl-L-alanyl-L-norleucinamide ;
Molecular weight formula_weight	833.1 kDa
Source method src_method	syn
Copy count entity_count	1

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	85

fit	/app/data/saxs_computation/ba/1bai/1bai.fit
pddf	/app/data/pr_computation/ba/1bai/1bai.pr.out
profile	/app/data/saxs_computation/ba/1bai/1bai.dat
