1bbn
THREE-DIMENSIONAL SOLUTION STRUCTURE OF HUMAN INTERLEUKIN-4 BY MULTI-DIMENSIONAL HETERONUCLEAR MAGNETIC RESONANCE SPECTROSCOPY
SAXS Profile

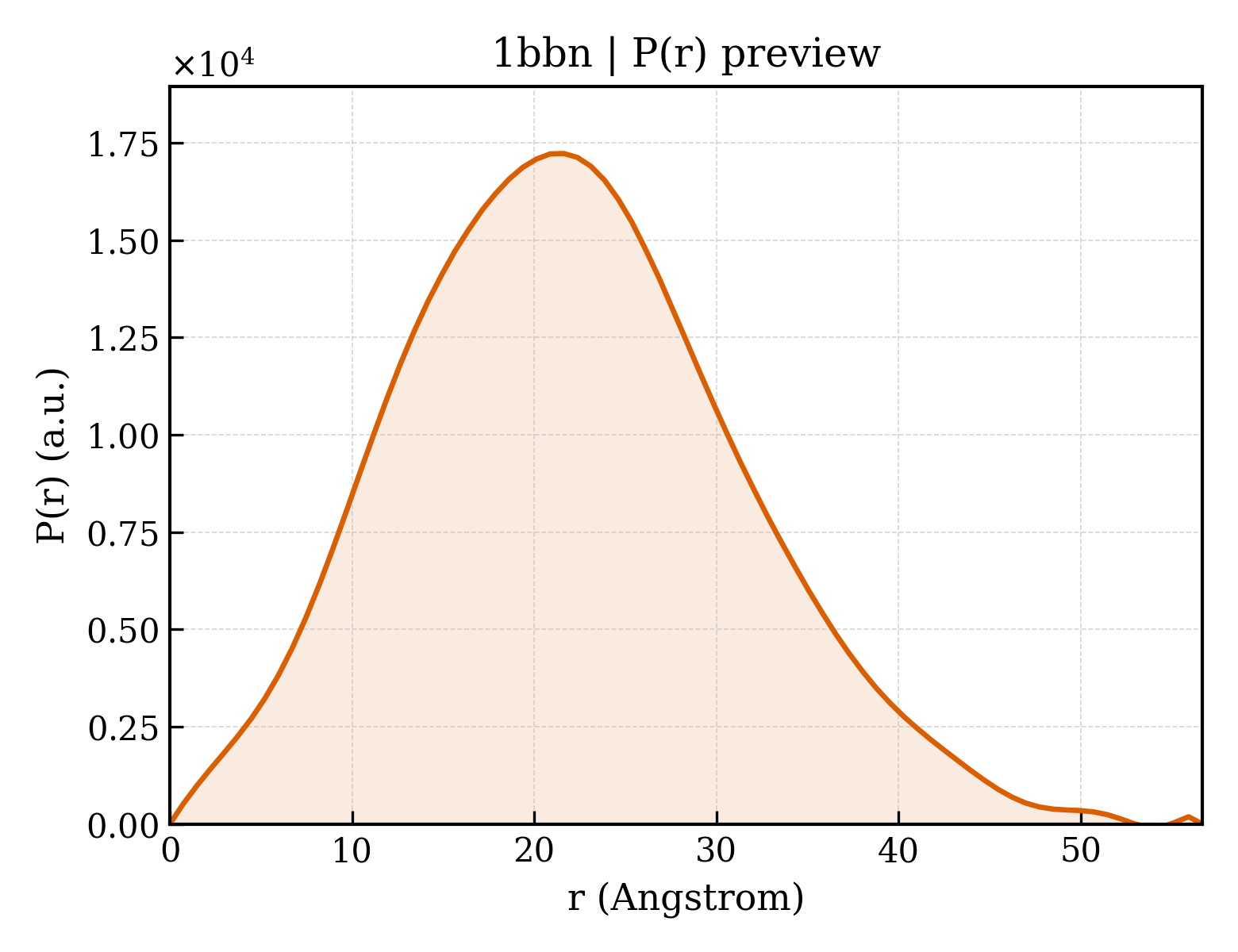

P(r) Distribution
1. Structure Basics
| entry_id | 1bbn |
| deposition_date | 1992-05-01 |
| title | THREE-DIMENSIONAL SOLUTION STRUCTURE OF HUMAN INTERLEUKIN-4 BY MULTI-DIMENSIONAL HETERONUCLEAR MAGNETIC RESONANCE SPECTROSCOPY |
| keywords | CYTOKINE; CYTOKINE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.90 Å |
| rg_electron | 15.44 Å |
| i0 | 5010580.00 |
| molecular_weight | 15369.0 kDa |
| excluded_volume | 19109 ų |
| envelope_volume | 24328 ų |
| shell_volume | 13539 ų |
| envelope_diameter | 58.5 Å |
| shell_rg | 21.02 Å |
| envelope_rg | 16.01 Å |
| shape_rg | 15.42 Å |
| total_rg | 16.65 Å |
| total_atoms | 2157 |
| n_residues | 133 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.7 Å |
| rg_real | 16.85 Å |
| rg_real_error | 0.36 Å |
| i0_real | 5.0110e+06 |
| i0_real_error | 6.1580e+04 |
| rg_reciprocal | 16.85 Å |
| i0_reciprocal | 5011000.0000 |
| total_estimate | 0.7940 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.6 Å |
| skewness | 0.289 |
| kurtosis | -0.168 |
| angular_range | — – 0.4700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1047000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
