1bbp
MOLECULAR STRUCTURE OF THE BILIN BINDING PROTEIN (BBP) FROM PIERIS BRASSICAE AFTER REFINEMENT AT 2.0 ANGSTROMS RESOLUTION.
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bbp |
| deposition_date | 1990-09-19 |
| title | MOLECULAR STRUCTURE OF THE BILIN BINDING PROTEIN (BBP) FROM PIERIS BRASSICAE AFTER REFINEMENT AT 2.0 ANGSTROMS RESOLUTION. |
| keywords | BILIN BINDING; BILIN BINDING |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.06 Å |
| rg_electron | 28.03 Å |
| i0 | 100945000.00 |
| molecular_weight | 80982.0 kDa |
| excluded_volume | 101860 ų |
| envelope_volume | 126960 ų |
| shell_volume | 37061 ų |
| envelope_diameter | 95.5 Å |
| shell_rg | 36.14 Å |
| envelope_rg | 27.69 Å |
| shape_rg | 28.02 Å |
| total_rg | 28.91 Å |
| total_atoms | 5745 |
| n_residues | 692 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

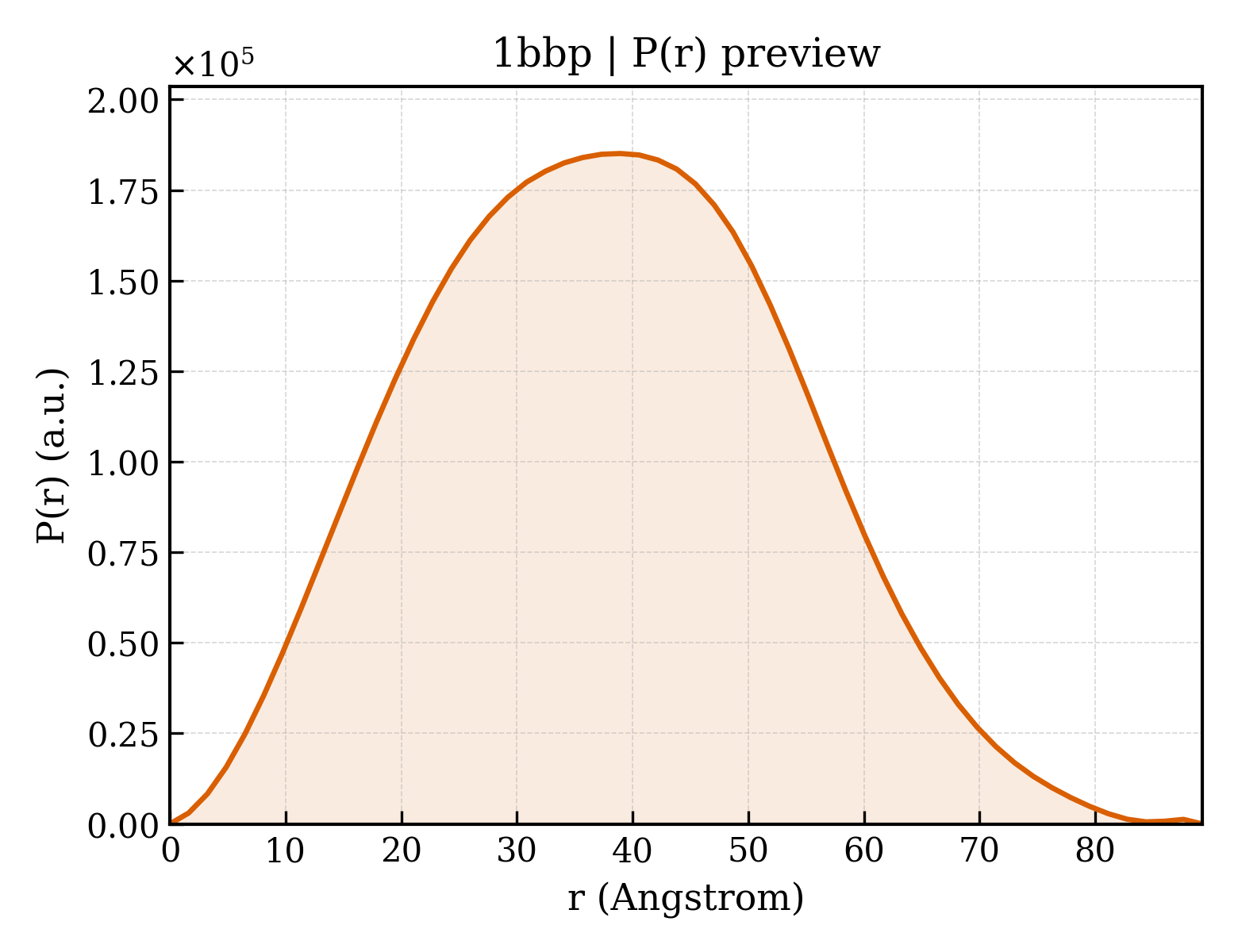

3. P(r) Analysis (GNOM)
| dmax | 89.3 Å |
| rg_real | 28.92 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.0090e+08 |
| i0_real_error | 1.4590e+06 |
| rg_reciprocal | 28.98 Å |
| i0_reciprocal | 100900000.0000 |
| total_estimate | 0.9058 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 39.0 Å |
| skewness | 0.133 |
| kurtosis | -0.514 |
| angular_range | — – 0.2750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 27440000.0000 |
| n_real_points | 56 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.944; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.940 |
