SAXSdb — 1bbw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (LYSYL-TRNA SYNTHETASE)

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–504	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.5；pH 7.5	Resolution 2.70 Å R-free 0.308

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BBW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BBU LYSYL-TRNA SYNTHETASE (LYSS) COMPLEXED WITH LYSINE Deposited 1998-04-24	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–504（504 aa）	Not recorded	LYS LYSINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；pH 7.5	Resolution 2.70 Å R-free 0.297
1KRS SOLUTION STRUCTURE OF THE ANTICODON BINDING DOMAIN OF ESCHERICHIA COLI LYSYL-TRNA SYNTHETASE AND STUDIES OF ITS INTERACTIONS WITH TRNA-LYS Deposited 1995-06-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–148（123 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1KRT SOLUTION STRUCTURE OF THE ANTICODON BINDING DOMAIN OF ESCHERICHIA COLI LYSYL-TRNA SYNTHETASE AND STUDIES OF ITS INTERACTIONS WITH TRNA-LYS Deposited 1995-06-09	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 26–148（123 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SYK1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–504； UniProt 1–504

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bbw
Deposition date deposition_date	1998-04-24
Structure title title	LYSYL-TRNA SYNTHETASE (LYSS)
Keywords keywords	LIGASE, AMINOACYL-TRNA SYNTHETASE, PROTEIN BIOSYNTHESIS; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.87 Å
Radius of gyration Rg (electron density) rg_electron	29.15 Å
Forward intensity I(0) i0	46138900.00
Molecular weight molecular_weight	51585.0 kDa
Excluded volume excluded_volume	63945 Å³
Envelope volume envelope_volume	86934 Å³
Hydration-shell volume shell_volume	26655 Å³
Envelope diameter envelope_diameter	101.7 Å
Shell Rg shell_rg	34.21 Å
Envelope Rg envelope_rg	28.97 Å
Shape Rg shape_rg	29.17 Å
Total Rg total_rg	29.60 Å
Total atoms total_atoms	3638
Residues n_residues	469
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.1 Å
Rg (real space) rg_real	30.05 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	4.6140e+07
I(0) uncertainty (real space) i0_real_error	6.8160e+05
Rg (reciprocal space) rg_reciprocal	29.98 Å
I(0) (reciprocal space) i0_reciprocal	46140000.0000
Solution quality estimate total_estimate	0.8722
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.3 Å
Skewness Skewness skewness	0.428
Kurtosis Kurtosis kurtosis	-0.548
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6167000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.864; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.872; Smooth: 0.871

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	PROTEIN (LYSYL-TRNA SYNTHETASE)
Molecular weight formula_weight	57546.1 kDa
EC 编号 ec_number	6.1.1.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3752

SEQHAQGADAVVDLNNELKTRREKLANLREQGIAFPNDFRRDHTSDQLHAEFDGKENEELEALNIEVAVAGRMMTRRIMGKASFVTLQDVGGRIQLYVARDDLPEGVYNEQFKKWDLGDILGAKGKLFKTKTGELSIHCTELRLLTKALRPLPDKFHGLQDQEARYRQRYLDLISNDESRNTFKVRSQILSGIRQFMVNRGFMEVETPMMQVIPGGAAARPFITHHNALDLDMYLRIAPELYLKRLVVGGFERVFEINRNFRNEGISVRHNPEFTMMELYMAYADYKDLIELTESLFRTLAQDILGKTEVTYGDVTLDFGKPFEKLTMREAIKKYRPETDMADLDNFDSAKAIAESIGIHVEKSWGLGRIVTEIFEEVAEAHLIQPTFITEYPAEVSPLARRNDVNPEITDRFEFFIGGREIGNGFSELNDAEDQAQRFLDQVAAKDAGDDEAMFYDEDYVTALEHGLPPTAGLGIGIDRMVMLFTNSHTIRDVILFPAMRPVK

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	114

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1bbwa1
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.4 — Nucleic acid-binding proteins
Family Family family	b.40.4.1 — Anticodon-binding domain

Domain ID domain_id	d1bbwa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamily	d.104.1 — Class II aaRS and biotin synthetases
Family Family family	d.104.1.1 — Class II aminoacyl-tRNA synthetase (aaRS)-like, catalytic domain

CATH v4.4 (2 domains)

Domain ID domain_id	1bbwA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	140 — Nucleic acid-binding proteins

Domain ID domain_id	1bbwA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily	10 — Bira Bifunctional Protein; Domain 2

▶

8. Citations (3)

▶

Unit-cell length a length_a	182.936 Å
Unit-cell length b length_b	182.936 Å
Unit-cell length c length_c	92.516 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	15.000 Å
R factor r_factor	0.2520
R_work r_work	0.2520
R_free r_free	0.3080

fit	/app/data/saxs_computation/bb/1bbw/1bbw.fit
pddf	/app/data/pr_computation/bb/1bbw/1bbw.pr.out
profile	/app/data/saxs_computation/bb/1bbw/1bbw.dat

LYSYL-TRNA SYNTHETASE (LYSS)

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (LYSYL-TRNA SYNTHETASE)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

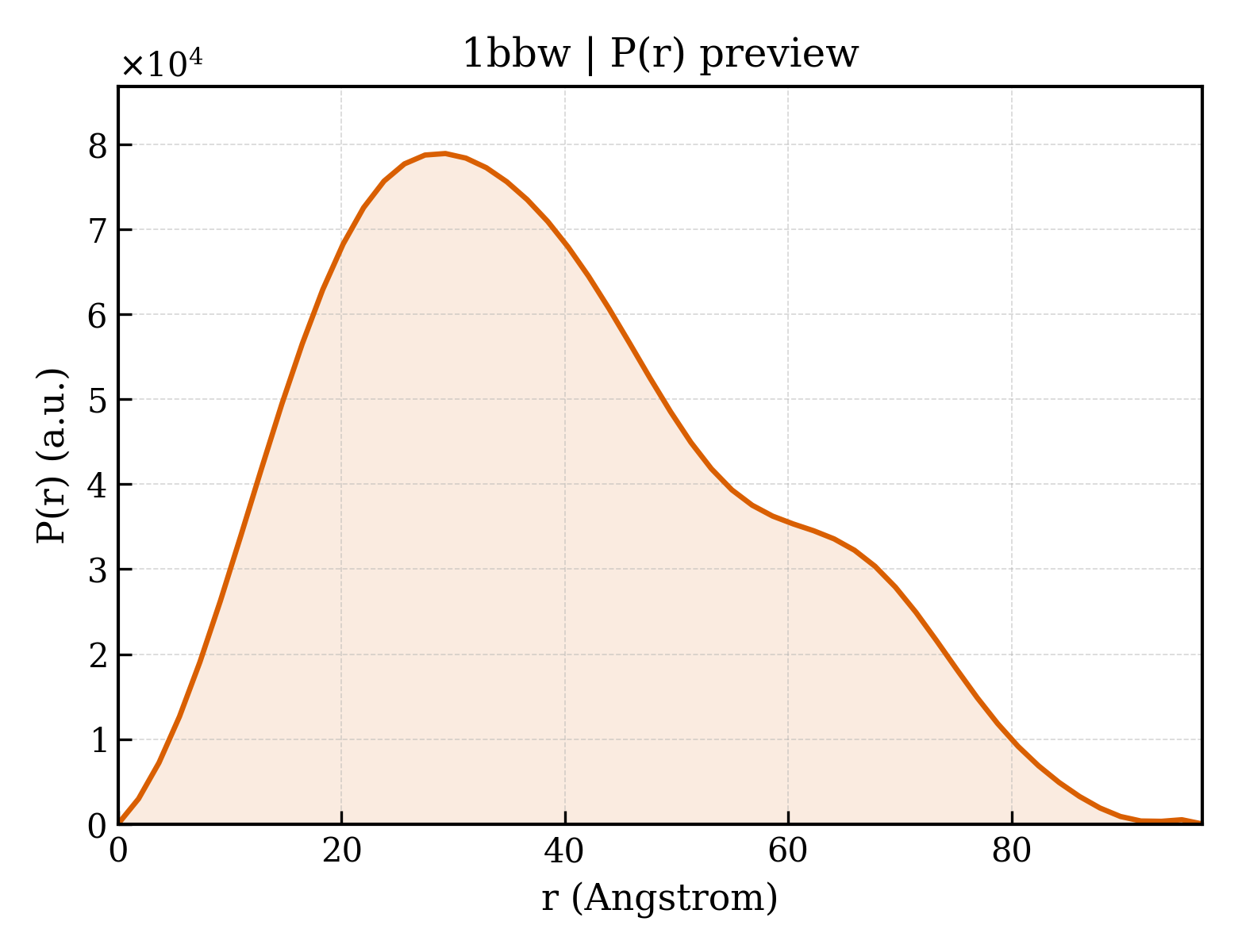

P(r) Distance Distribution P(r) Distribution
