1bce
INTRAMOLECULAR TRIPLEX, NMR, 10 STRUCTURES

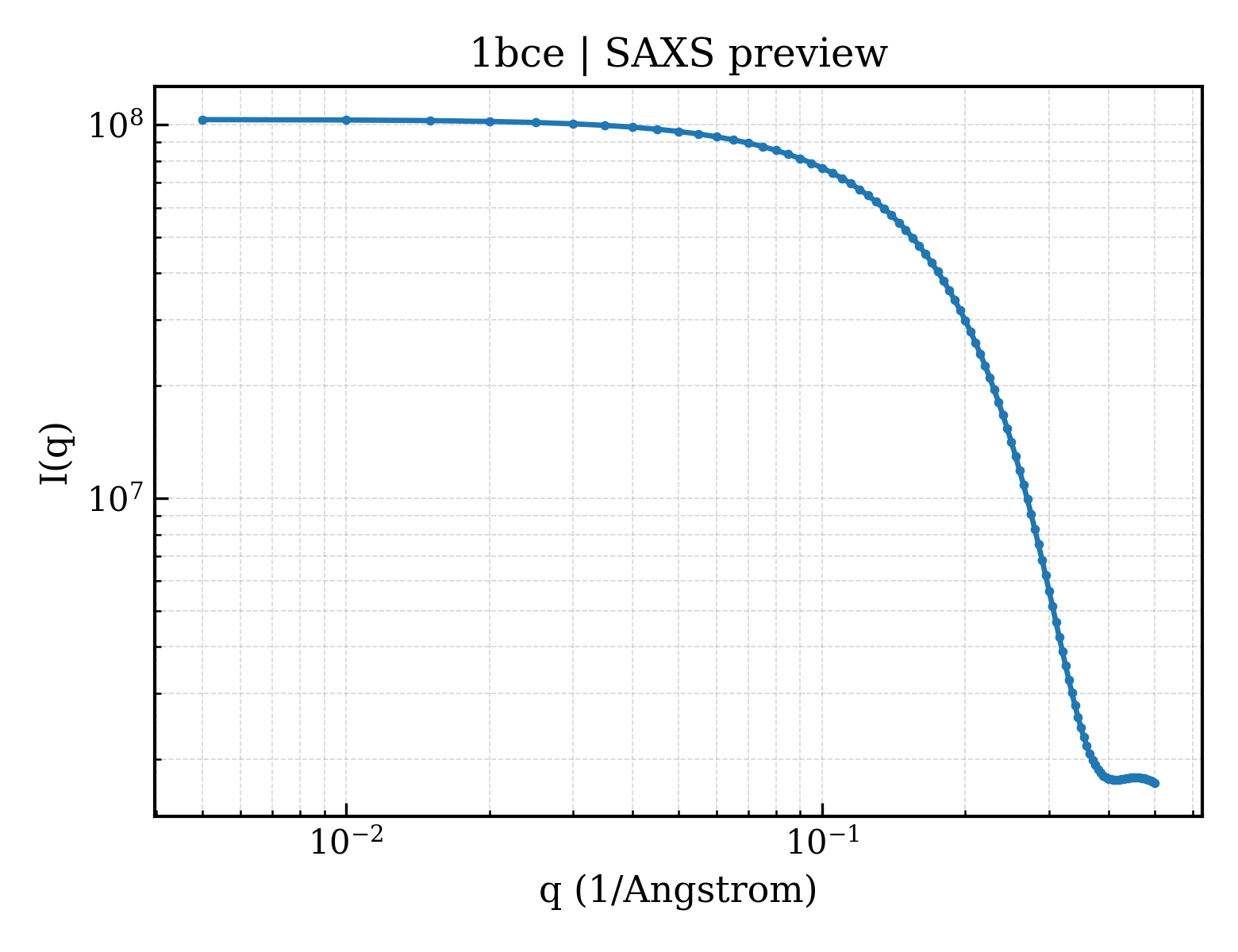

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bce |
| deposition_date | 1998-04-29 |
| title | INTRAMOLECULAR TRIPLEX, NMR, 10 STRUCTURES |
| keywords | DEOXYRIBONUCLEIC ACID, DNA TRIPLEX, DNA; DNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.46 Å |
| rg_electron | 9.31 Å |
| i0 | 103204000.00 |
| molecular_weight | 53277.0 kDa |
| excluded_volume | 53276 ų |
| envelope_volume | 7429 ų |
| shell_volume | 6765 ų |
| envelope_diameter | 30.0 Å |
| shell_rg | 14.79 Å |
| envelope_rg | 10.06 Å |
| shape_rg | 9.09 Å |
| total_rg | 9.83 Å |
| total_atoms | 5670 |
| n_residues | 180 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.5 Å |
| rg_real | 9.39 Å |
| rg_real_error | 0.18 Å |
| i0_real | 1.0320e+08 |
| i0_real_error | 9.0170e+05 |
| rg_reciprocal | 9.39 Å |
| i0_reciprocal | 103200000.0000 |
| total_estimate | 0.9024 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 12.3 Å |
| skewness | 0.067 |
| kurtosis | -0.480 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 50890.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.973 |
