1bd8
STRUCTURE OF CDK INHIBITOR P19INK4D
SAXS Profile

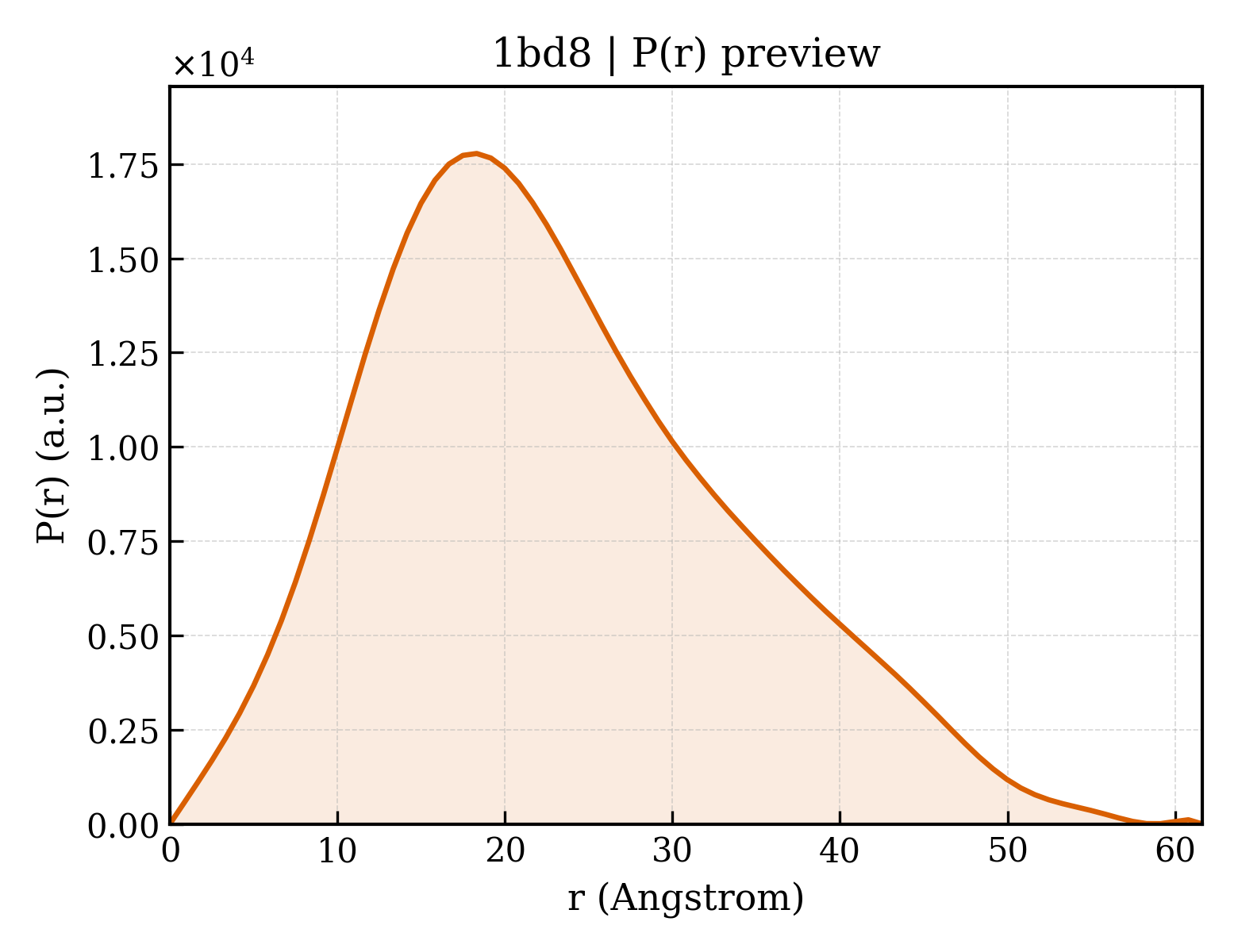

P(r) Distribution
1. Structure Basics
| entry_id | 1bd8 |
| deposition_date | 1998-05-12 |
| title | STRUCTURE OF CDK INHIBITOR P19INK4D |
| keywords | TUMOR SUPPRESSOR, CDK4/6 INHIBITOR, ANKYRIN MOTIF; TUMOR SUPPRESSOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.88 Å |
| rg_electron | 16.96 Å |
| i0 | 5611940.00 |
| molecular_weight | 16601.0 kDa |
| excluded_volume | 20560 ų |
| envelope_volume | 24059 ų |
| shell_volume | 12806 ų |
| envelope_diameter | 61.4 Å |
| shell_rg | 21.80 Å |
| envelope_rg | 17.34 Å |
| shape_rg | 16.93 Å |
| total_rg | 17.86 Å |
| total_atoms | 1168 |
| n_residues | 156 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.6 Å |
| rg_real | 17.98 Å |
| rg_real_error | 0.44 Å |
| i0_real | 5.6120e+06 |
| i0_real_error | 7.1410e+04 |
| rg_reciprocal | 17.97 Å |
| i0_reciprocal | 5612000.0000 |
| total_estimate | 0.6583 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 18.3 Å |
| skewness | 0.500 |
| kurtosis | -0.248 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2164000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.694; Stabil: 1.000; Sysdev: 0.227; Positv: 1.000; Valcen: 0.909; Smooth: 0.882 |
