1bdw
GRAMICIDIN D FROM BACILLUS BREVIS (ACTIVE FORM)

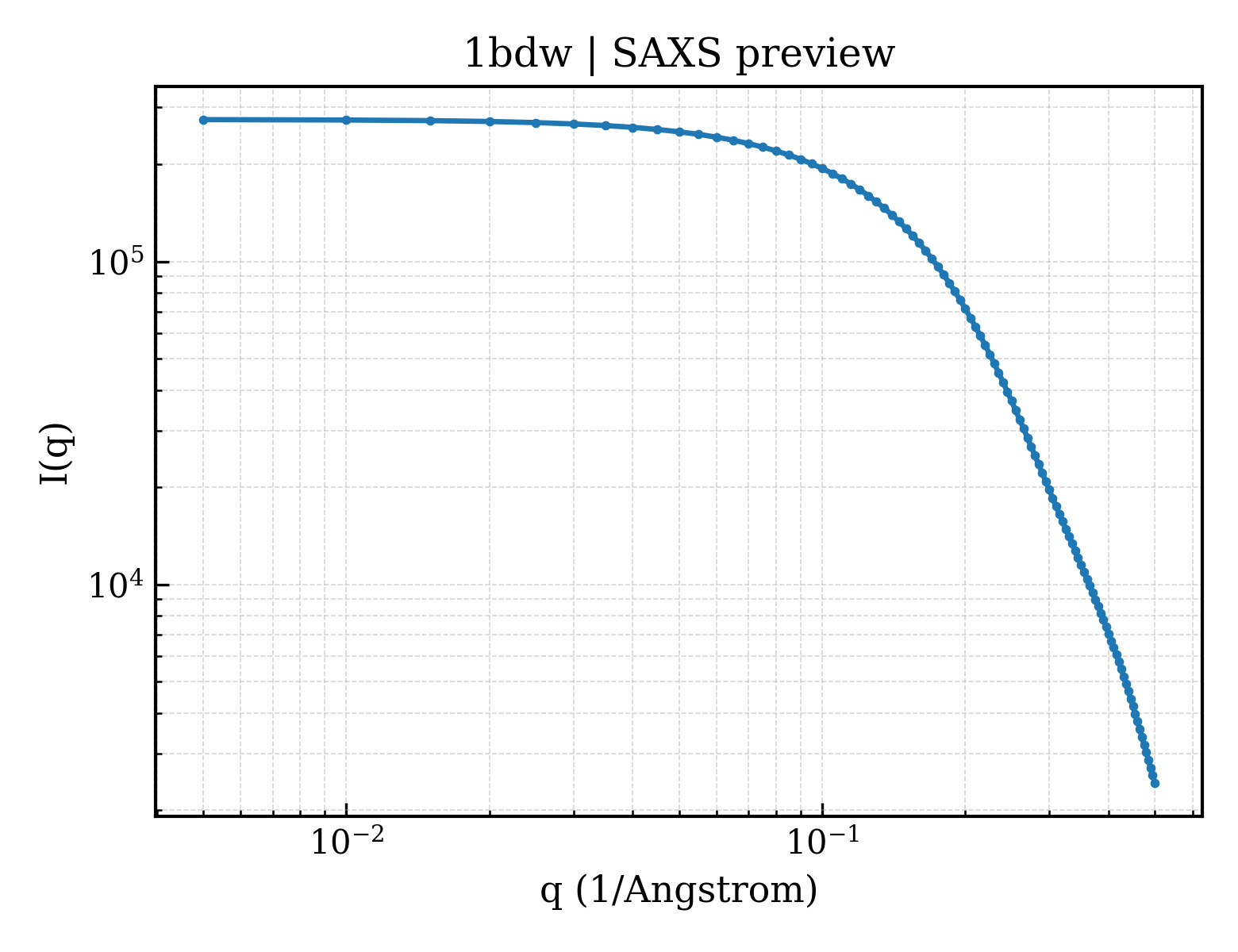

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bdw |
| deposition_date | 1998-05-11 |
| title | GRAMICIDIN D FROM BACILLUS BREVIS (ACTIVE FORM) |
| keywords | GRAMICIDIN, ANTIFUNGAL, ANTIBACTERIAL, ANTIBIOTIC, MEMBRANE ION CHANNEL, LINEAR GRAMICIDIN, DOUBLE HELIX; ANTIBIOTIC |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.23 Å |
| rg_electron | 9.10 Å |
| i0 | 275348.00 |
| molecular_weight | 4079.0 kDa |
| excluded_volume | 5552 ų |
| envelope_volume | 5660 ų |
| shell_volume | 5704 ų |
| envelope_diameter | 30.4 Å |
| shell_rg | 13.93 Å |
| envelope_rg | 9.47 Å |
| shape_rg | 9.06 Å |
| total_rg | 11.16 Å |
| total_atoms | 292 |
| n_residues | 16 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 34.0 Å |
| rg_real | 10.25 Å |
| rg_real_error | 0.32 Å |
| i0_real | 2.7530e+05 |
| i0_real_error | 2.9560e+03 |
| rg_reciprocal | 10.25 Å |
| i0_reciprocal | 275300.0000 |
| total_estimate | 0.8812 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 10.8 Å |
| skewness | 0.370 |
| kurtosis | -0.357 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 59920.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.904; Smooth: 0.925 |
