ANTIBODY TO CAMPATH-1H HUMANIZED FAB

Method: X-RAY DIFFRACTION D_max: 91.2 Å Quality: GOOD

SAXS Profile

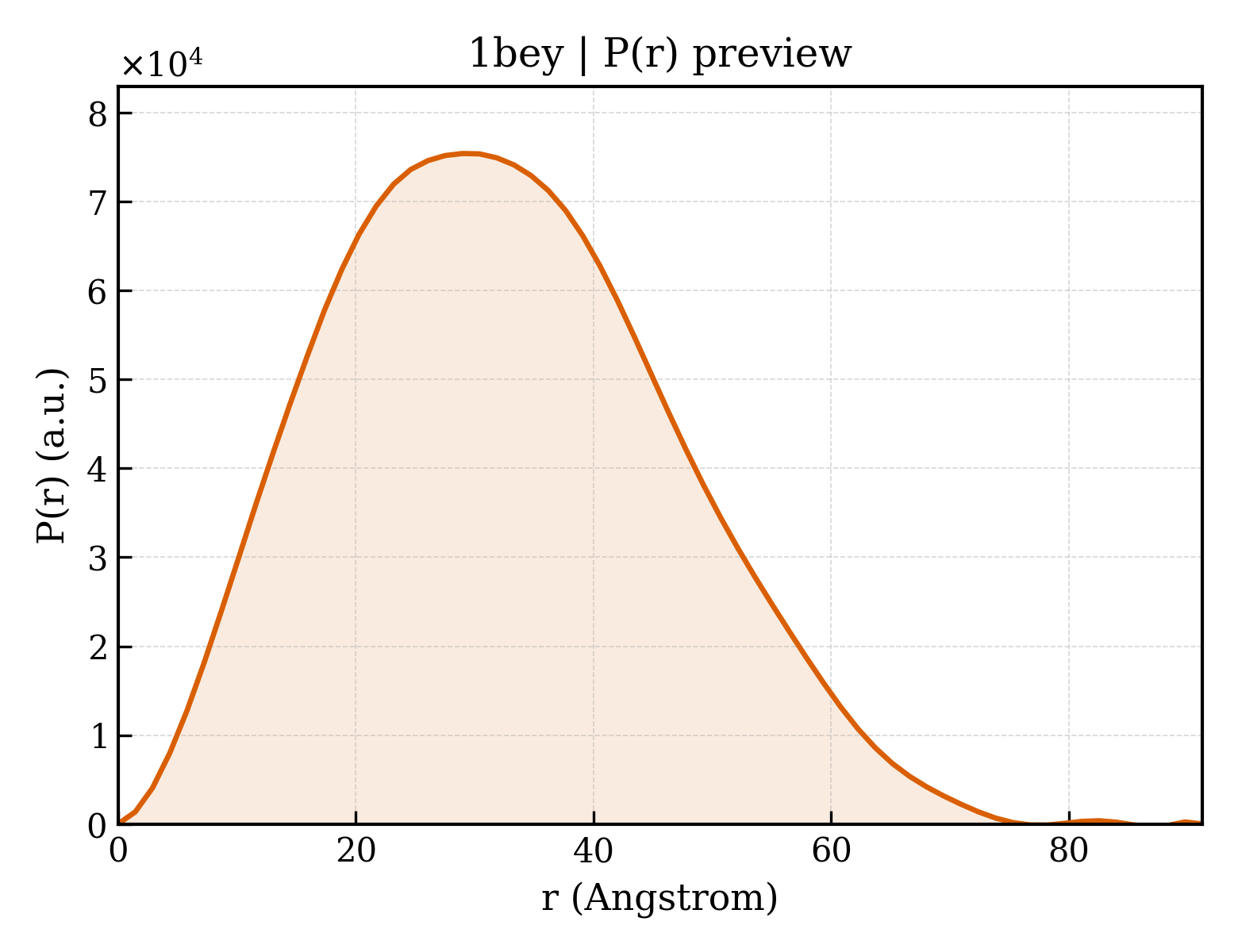

P(r) Distribution

▼

1. Structure Basics

entry_id	1bey
deposition_date	1998-05-18
title	ANTIBODY TO CAMPATH-1H HUMANIZED FAB
keywords	ANTIBODY, FAB, CAMPATH-1H, CD52; ANTIBODY
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.87 Å
rg_electron	23.95 Å
i0	36231500.00
molecular_weight	46184.0 kDa
excluded_volume	57656 Å³
envelope_volume	70508 Å³
shell_volume	24893 Å³
envelope_diameter	80.9 Å
shell_rg	30.68 Å
envelope_rg	23.69 Å
shape_rg	23.92 Å
total_rg	24.83 Å
total_atoms	3252
n_residues	424
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	91.2 Å
rg_real	24.84 Å
rg_real_error	1.00 Å
i0_real	3.6230e+07
i0_real_error	5.9780e+05
rg_reciprocal	24.85 Å
i0_reciprocal	36230000.0000
total_estimate	0.7694
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	29.0 Å
skewness	0.279
kurtosis	-0.454
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	9881000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.721; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.837; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	80.060 Å
length_b	80.060 Å
length_c	347.250 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	12

space_group	P 65 2 2
int_tables_number	179
crystal_system	—

resolution	3.250 Å
resolution_low	6.000 Å
r_factor	0.2140
r_work	0.2140
r_free	0.3060

description	CAMPATH-1H ANTIBODY
formula_weight	23596.3 kDa
src_method	nat
entity_count	1

type	polypeptide(L)
strand_id	L
atom_count	3252

ANTIBODY TO CAMPATH-1H HUMANIZED FAB

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Entity 2 polymer

Polymer

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/be/1bey/1bey.fit
pddf	/app/data/pr_computation/be/1bey/1bey.pr.out
profile	/app/data/saxs_computation/be/1bey/1bey.dat
