SAXSdb — 1bfn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-AMYLASE

Glycine max

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–495	Not recorded	Cycloheptakis-(1-4)-(alpha-D-glucopyranose) × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 5.4；277 K；49% (NH4)2SO4, 0.1M NAOAC PH 5.4, 18MM 2-MERCAPTOETHANOL, AT 277K	Resolution 2.07 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BFN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BTC THREE-DIMENSIONAL STRUCTURE OF SOYBEAN BETA-AMYLASE DETERMINED AT 3.0 ANGSTROMS RESOLUTION: PRELIMINARY CHAIN TRACING OF THE COMPLEX WITH ALPHA-CYCLODEXTRIN Deposited 1993-02-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–495（491 aa）	Not recorded	SO4 SULFATE ION × 1 BME BETA-MERCAPTOETHANOL × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1BYA CRYSTAL STRUCTURES OF SOYBEAN BETA-AMYLASE REACTED WITH BETA-MALTOSE AND MALTAL: ACTIVE SITE COMPONENTS AND THEIR APPARENT ROLE IN CATALYSIS Deposited 1994-01-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1BYB CRYSTAL STRUCTURES OF SOYBEAN BETA-AMYLASE REACTED WITH BETA-MALTOSE AND MALTAL: ACTIVE SITE COMPONENTS AND THEIR APPARENT ROLE IN CATALYSIS Deposited 1994-01-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
1BYC CRYSTAL STRUCTURES OF SOYBEAN BETA-AMYLASE REACTED WITH BETA-MALTOSE AND MALTAL: ACTIVE SITE COMPONENTS AND THEIR APPARENT ROLE IN CATALYSIS Deposited 1994-01-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1BYD CRYSTAL STRUCTURES OF SOYBEAN BETA-AMYLASE REACTED WITH BETA-MALTOSE AND MALTAL: ACTIVE SITE COMPONENTS AND THEIR APPARENT ROLE IN CATALYSIS Deposited 1994-01-25	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1UKO Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：D374Y / L481R / P487D	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.241
1UKO Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–495（495 aa）	Mutation：D374Y / L481R / P487D	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.241
1UKO Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–495（495 aa）	Mutation：D374Y / L481R / P487D	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.241
1UKO Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–495（495 aa）	Mutation：D374Y / L481R / P487D	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.241
1UKP Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：D374Y / L481R / P487D / K462S	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.10 Å R-free 0.234
1UKP Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–495（495 aa）	Mutation：D374Y / L481R / P487D / K462S	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.10 Å R-free 0.234
1UKP Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–495（495 aa）	Mutation：D374Y / L481R / P487D / K462S	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.10 Å R-free 0.234
1UKP Crystal structure of soybean beta-amylase mutant substituted at surface region Deposited 2003-08-31	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–495（495 aa）	Mutation：D374Y / L481R / P487D / K462S	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277.0K	Resolution 2.10 Å R-free 0.234
1V3H The roles of Glu186 and Glu380 in the catalytic reaction of soybean beta-amylase Deposited 2003-11-02	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：F76L, E186Q	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.181
1V3I The roles of Glu186 and Glu380 in the catalytic reaction of soybean beta-amylase Deposited 2003-11-02	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：F76L, E380Q	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.193
1WDP The role of an inner loop in the catalytic mechanism of soybean beta-amylase Deposited 2004-05-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Not recorded	SO4 SULFATE ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.27 Å R-free 0.174
1WDQ The role of an inner loop in the catalytic mechanism of soybean beta-amylase Deposited 2004-05-17	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：T342V	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.28 Å R-free 0.174
1WDR The role of an inner loop in the catalytic mechanism of soybean beta-amylase Deposited 2004-05-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：T342S Non-standard monomer：Yes (specific site not provided by mmCIF)	GLC alpha-D-glucopyranose × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.35 Å R-free 0.172
1WDS The role of an inner loop in the catalytic mechanism of soybean beta-amylase Deposited 2004-05-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–495（495 aa）	Mutation：T342A	GLC alpha-D-glucopyranose × 1 SO4 SULFATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；277 K；ammonium sulfate, sodium acetate, 2-mercaptoethanol, EDTA, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.64 Å R-free 0.200

13 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMYB_SOYBN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–495； UniProt 1–495

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bfn
Deposition date deposition_date	1998-05-22
Structure title title	BETA-AMYLASE/BETA-CYCLODEXTRIN COMPLEX
Keywords keywords	HYDROLASE, BETA-AMYLASE, BETA-CYCLODEXTRIN, RECOMBINANT; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.19 Å
Radius of gyration Rg (electron density) rg_electron	21.94 Å
Forward intensity I(0) i0	51909900.00
Molecular weight molecular_weight	56670.0 kDa
Excluded volume excluded_volume	71064 Å³
Envelope volume envelope_volume	80583 Å³
Hydration-shell volume shell_volume	29422 Å³
Envelope diameter envelope_diameter	73.6 Å
Shell Rg shell_rg	29.91 Å
Envelope Rg envelope_rg	22.06 Å
Shape Rg shape_rg	21.93 Å
Total Rg total_rg	22.87 Å
Total atoms total_atoms	3997
Residues n_residues	490
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.8 Å
Rg (real space) rg_real	23.02 Å
Rg uncertainty (real space) rg_real_error	0.25 Å
I(0) (real space) i0_real	5.1910e+07
I(0) uncertainty (real space) i0_real_error	6.2490e+05
Rg (reciprocal space) rg_reciprocal	23.06 Å
I(0) (reciprocal space) i0_reciprocal	51910000.0000
Solution quality estimate total_estimate	0.9014
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	69.7 Å
Skewness Skewness skewness	0.130
Kurtosis Kurtosis kurtosis	-0.438
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16070000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.997

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	BETA-AMYLASE
Molecular weight formula_weight	55965.2 kDa
EC 编号 ec_number	3.2.1.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4315

ATSDSNMLLNYVPVYVMLPLGVVNVDNVFEDPDGLKEQLLQLRAAGVDGVMVDVWWGIIELKGPKQYDWRAYRSLLQLVQECGLTLQAIMSFHQCGGNVGDIVNIPIPQWVLDIGESNHDIFYTNRSGTRNKEYLTVGVDNEPIFHGRTAIEIYSDYMKSFRENMSDFLESGLIIDIEVGLGPAGELRYPSYPQSQGWEFPGIGEFQCYDKYLKADFKAAVARAGHPEWELPDDAGKYNDVPESTGFFKSNGTYVTEKGKFFLTWYSNKLLNHGDQILDEANKAFLGCKVKLAIKVSGIHWWYKVENHAAELTAGYYNLNDRDGYRPIARMLSRHHAILNFTCLEMRDSEQPSDAKSGPQELVQQVLSGGWREDIRVAGENALPRYDATAYNQIILNARPQGVNNNGPPKLSMFGVTYLRLSDDLLQKSNFNIFKKFVLKMHADQDYCANPQKYNHAITPLKPSAPKIPIEVLLEATKPTLPFPWLPETDMKVDG

来源 Source

来源生物 organism	Glycine max
通用名 common_name	soybean
NCBI Class编号 ncbi_taxonomy_id	3847
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	Cycloheptakis-(1-4)-(alpha-D-glucopyranose)
Molecular weight formula_weight	1153.0 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	318

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bfna_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

CATH v4.4 (1 domains)

Domain ID domain_id	1bfnA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

▶

8. Citations (3)

▶

Unit-cell length a length_a	86.030 Å
Unit-cell length b length_b	86.030 Å
Unit-cell length c length_c	144.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.070 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1580
R_work r_work	0.1580
R_free r_free	0.2110

fit	/app/data/saxs_computation/bf/1bfn/1bfn.fit
pddf	/app/data/pr_computation/bf/1bfn/1bfn.pr.out
profile	/app/data/saxs_computation/bf/1bfn/1bfn.dat

BETA-AMYLASE/BETA-CYCLODEXTRIN COMPLEX

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-AMYLASE

State in the Current Structure

Other States of the Same Protein in the Database

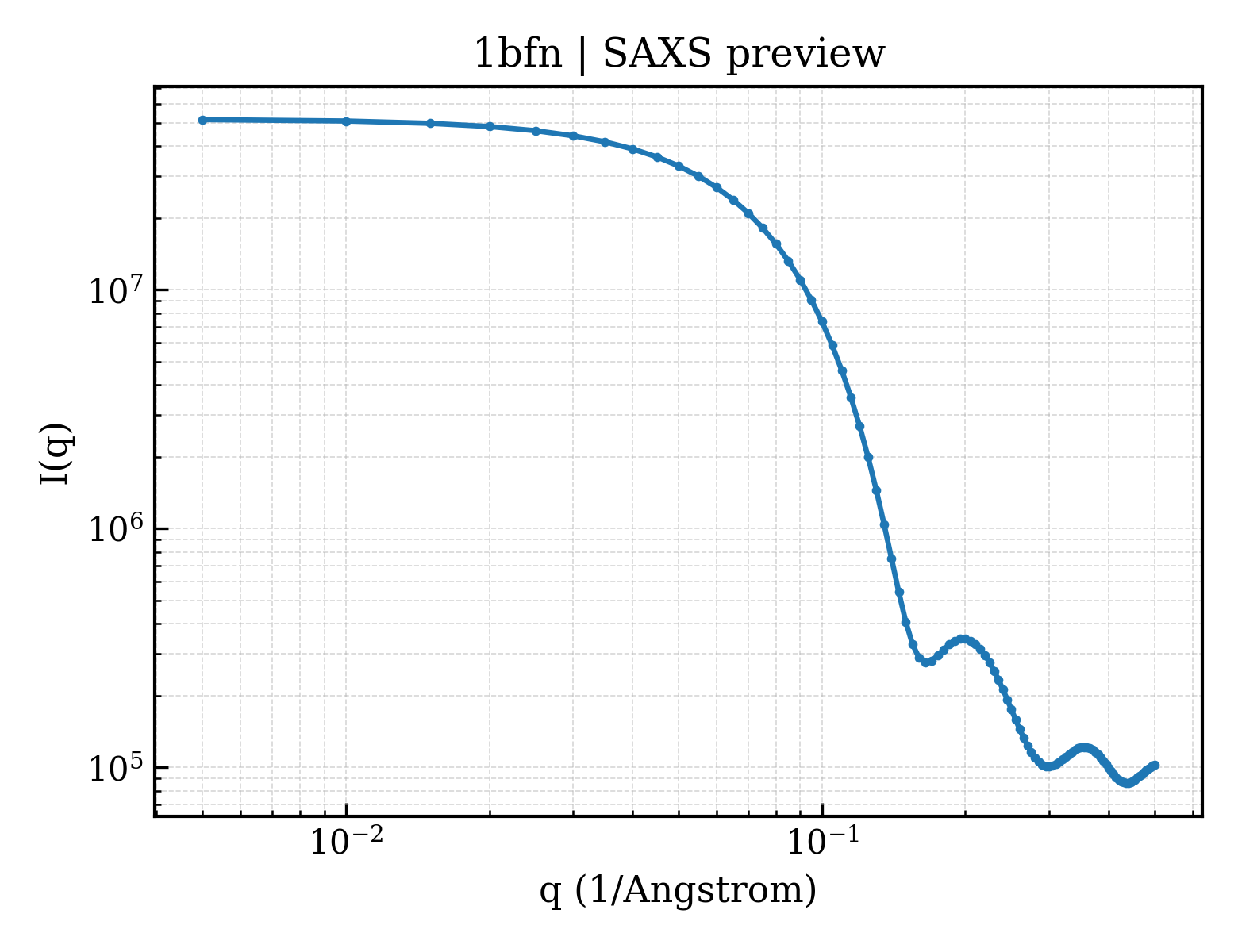

SAXS scattering curve SAXS Profile

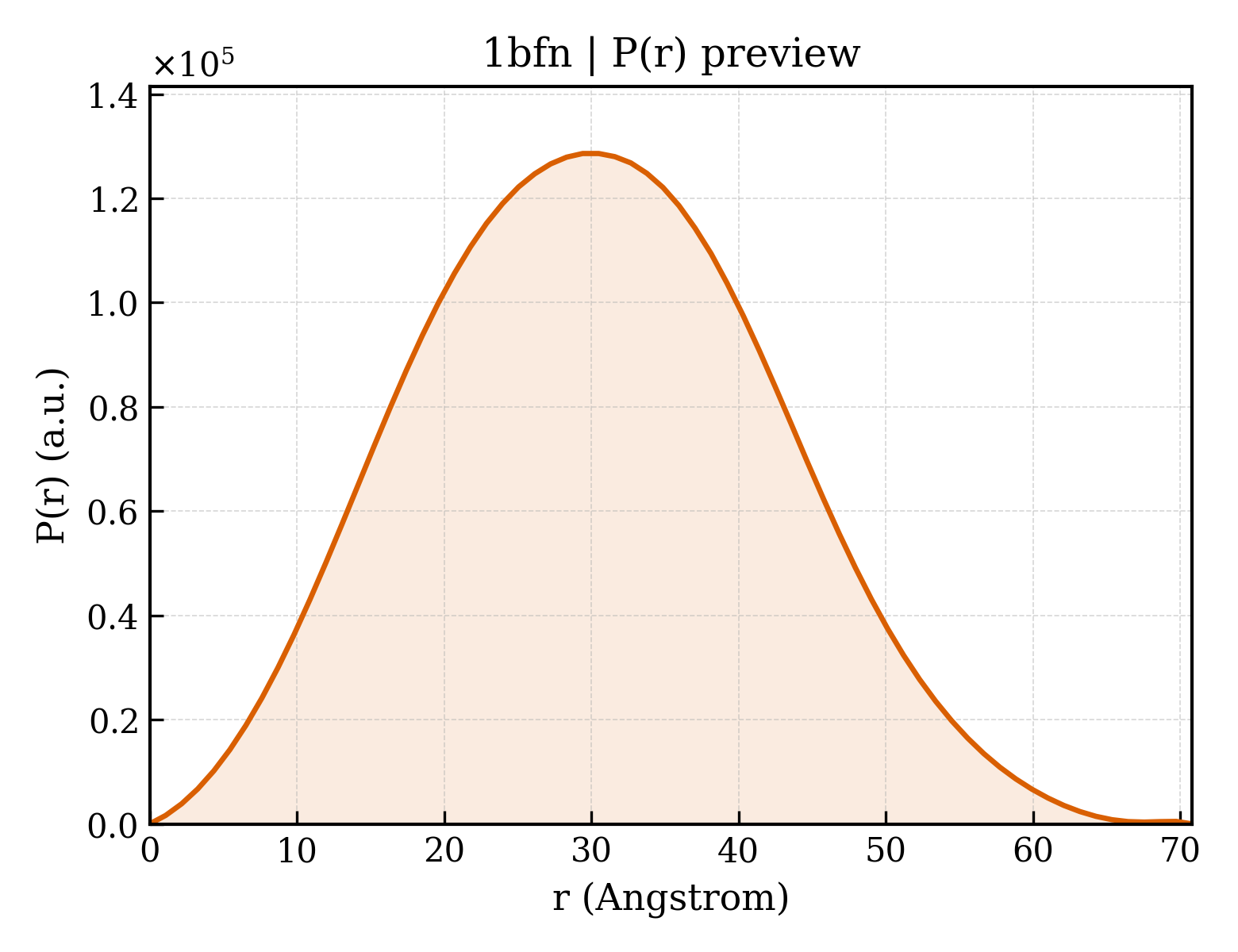

P(r) Distance Distribution P(r) Distribution
