1bia

THE E. COLI BIOTIN HOLOENZYME SYNTHETASE(SLASH)BIO REPRESSOR CRYSTAL STRUCTURE DELINEATES THE BIOTIN AND DNA-BINDING DOMAINS

Method: X-RAY DIFFRACTION Dmax: 86.4 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BirA BIFUNCTIONAL PROTEIN

Escherichia coli

UniProt P06709

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–321 Not recorded No other associated polymer X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions Resolution 2.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1BIA Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BIB THE E. COLI BIOTIN HOLOENZYME SYNTHETASE(SLASH)BIO REPRESSOR CRYSTAL STRUCTURE DELINEATES THE BIOTIN AND DNA-BINDING DOMAINS Deposited 1992-07-06 Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–321（321 aa）
Not recorded BTN BIOTIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.80 Å
1HXD CRYSTAL STRUCTURE OF E. COLI BIOTIN REPRESSOR WITH BOUND BIOTIN Deposited 2001-01-12 Different ligand/ion Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–321（321 aa）
Not recorded BTN BIOTIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.40 Å
1HXD CRYSTAL STRUCTURE OF E. COLI BIOTIN REPRESSOR WITH BOUND BIOTIN Deposited 2001-01-12 Different ligand/ion Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–321（321 aa）
Not recorded BTN BIOTIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.40 Å
2EWN Ecoli Biotin Repressor with co-repressor analog Deposited 2005-11-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–321（321 aa）
Chain B 1–321（321 aa）
Not recorded BTX ((2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-3,4-DIHYDROXY-TETRAHYDROFURAN-2-YL)METHYL 5-((3AS,4S,6AR)-2-OXO-HEXAHYDRO-1H-THIENO[3,4-D]IMIDAZOL-4-YL)PENTYL HYDROGEN PHOSPHATE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；20% PEG 4K, 100mM Tris-HCL, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.80 Å R-free 0.264
4WF2 Structure of E. coli BirA G142A bound to biotinol-5'-AMP Deposited 2014-09-11 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–321（321 aa）
Mutation：G142A BTX ((2R,3S,4R,5R)-5-(6-AMINO-9H-PURIN-9-YL)-3,4-DIHYDROXY-TETRAHYDROFURAN-2-YL)METHYL 5-((3AS,4S,6AR)-2-OXO-HEXAHYDRO-1H-THIENO[3,4-D]IMIDAZOL-4-YL)PENTYL HYDROGEN PHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M TrisHCl, pH 8.0 and 12.5% (w/v) PEG 8K (Hampton) at 20 deg C
Resolution 2.31 Å R-free 0.218

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BIRA_ECOLI
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–321； UniProt 1–321

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1bia

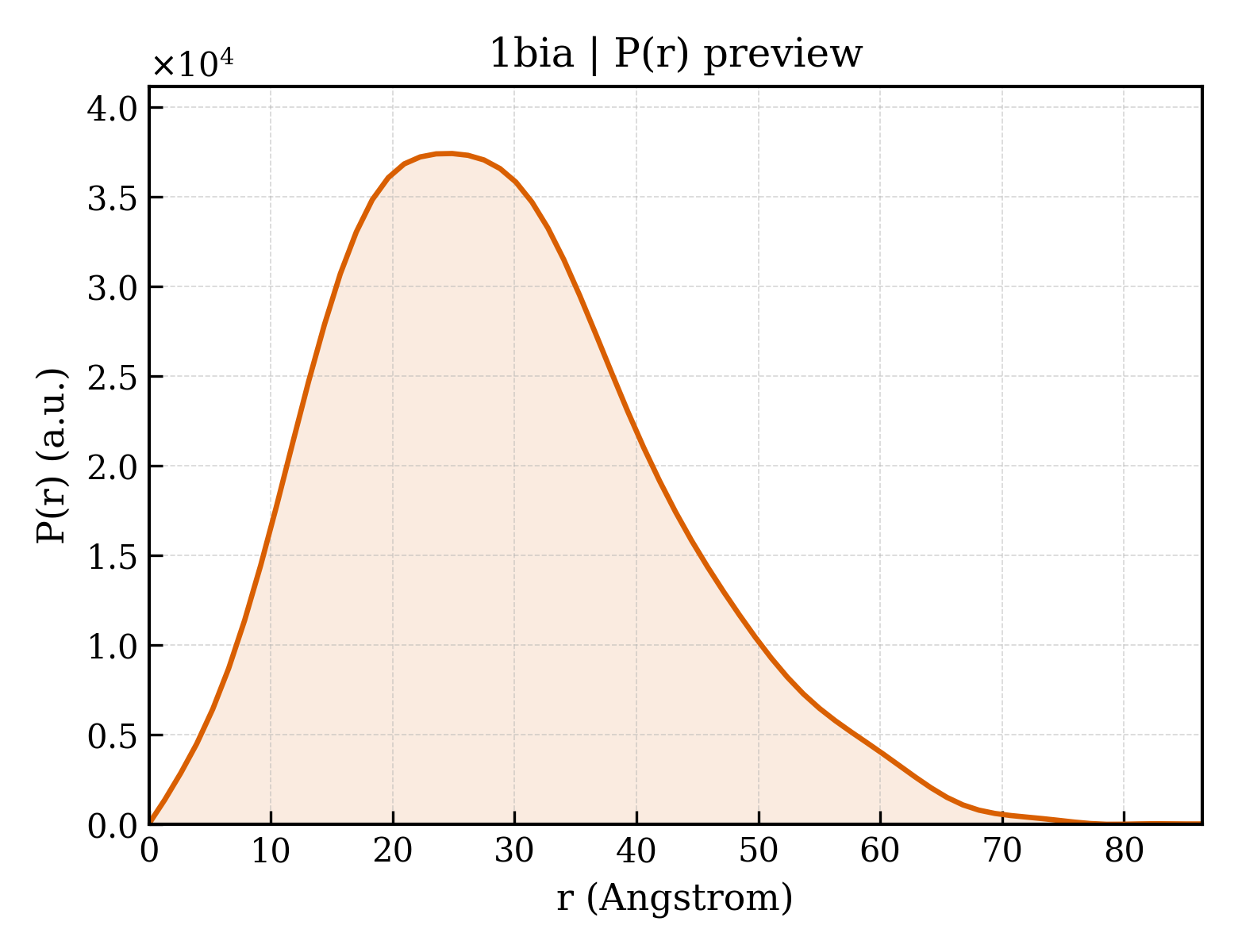

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1bia
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1bia
Deposition date deposition_date1992-07-06
Structure title titleTHE E. COLI BIOTIN HOLOENZYME SYNTHETASE(SLASH)BIO REPRESSOR CRYSTAL STRUCTURE DELINEATES THE BIOTIN AND DNA-BINDING DOMAINS
Keywords keywordsTRANSCRIPTION REGULATION; TRANSCRIPTION REGULATION
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier22.26 Å
Radius of gyration Rg (electron density) rg_electron21.48 Å
Forward intensity I(0) i015843600.00
Molecular weight molecular_weight31256.0 kDa
Excluded volume excluded_volume39747 ų
Envelope volume envelope_volume46946 ų
Hydration-shell volume shell_volume19337 ų
Envelope diameter envelope_diameter79.1 Å
Shell Rg shell_rg27.04 Å
Envelope Rg envelope_rg21.73 Å
Shape Rg shape_rg21.49 Å
Total Rg total_rg22.24 Å
Total atoms total_atoms2201
Residues n_residues292
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax86.4 Å
Rg (real space) rg_real22.33 Å
Rg uncertainty (real space) rg_real_error0.97 Å
I(0) (real space) i0_real1.5840e+07
I(0) uncertainty (real space) i0_real_error2.4080e+05
Rg (reciprocal space) rg_reciprocal22.32 Å
I(0) (reciprocal space) i0_reciprocal15840000.0000
Solution quality estimate total_estimate0.7940
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary24.9 Å
Skewness Skewness skewness0.484
Kurtosis Kurtosis kurtosis-0.106
Angular range angular_range— – 0.3550 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha5329000.0000
Real-space data points n_real_points67
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.531; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.725; Smooth: 1.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_idd1biaa1
Class classa — All alpha proteins
Fold Fold folda.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamilya.4.5 — 'Winged helix' DNA-binding domain
Family Family familya.4.5.1 — Biotin repressor-like
Domain ID domain_idd1biaa2
Class classb — All beta proteins
Fold Fold foldb.34 — SH3-like barrel
Superfamily Superfamily superfamilyb.34.1 — C-terminal domain of transcriptional repressors
Family Family familyb.34.1.1 — Biotin repressor (BirA)
Domain ID domain_idd1biaa3
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.104 — Class II aaRS and biotin synthetases
Superfamily Superfamily superfamilyd.104.1 — Class II aaRS and biotin synthetases
Family Family familyd.104.1.2 — Biotin holoenzyme synthetase

CATH v4.4 (3 domains)

Domain ID domain_id1biaA01
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain
Domain ID domain_id1biaA02
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology930 — BirA Bifunctional Protein; domain 2
Homologous superfamily homologous superfamily10 — Bira Bifunctional Protein; Domain 2
Domain ID domain_id1biaA03
Class class2 — Mainly Beta
Architecture architecture30 — Roll
Topology topology30 — SH3 type barrels.
Homologous superfamily homologous superfamily100 —
▶
