1bna
STRUCTURE OF A B-DNA DODECAMER. CONFORMATION AND DYNAMICS

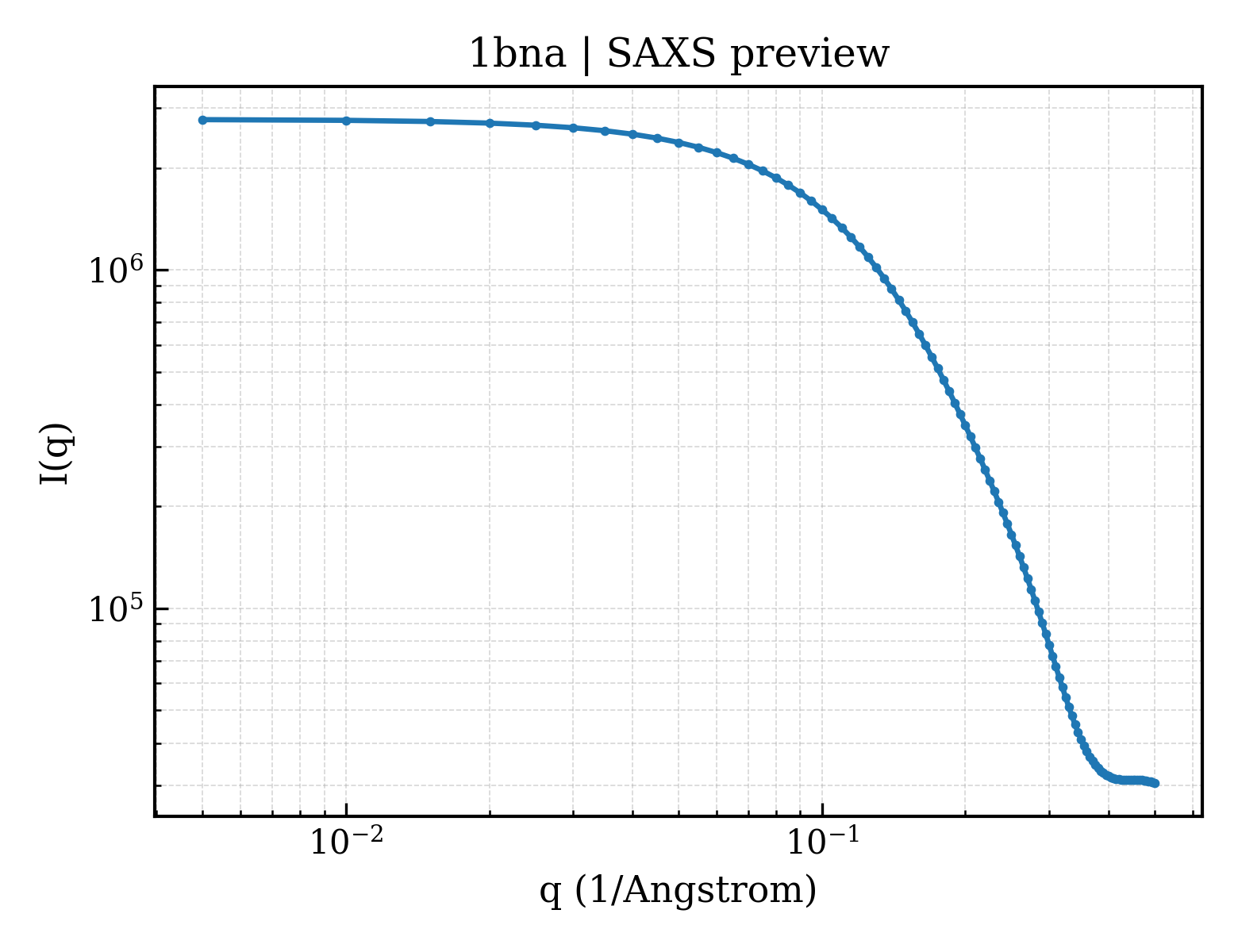

SAXS Profile

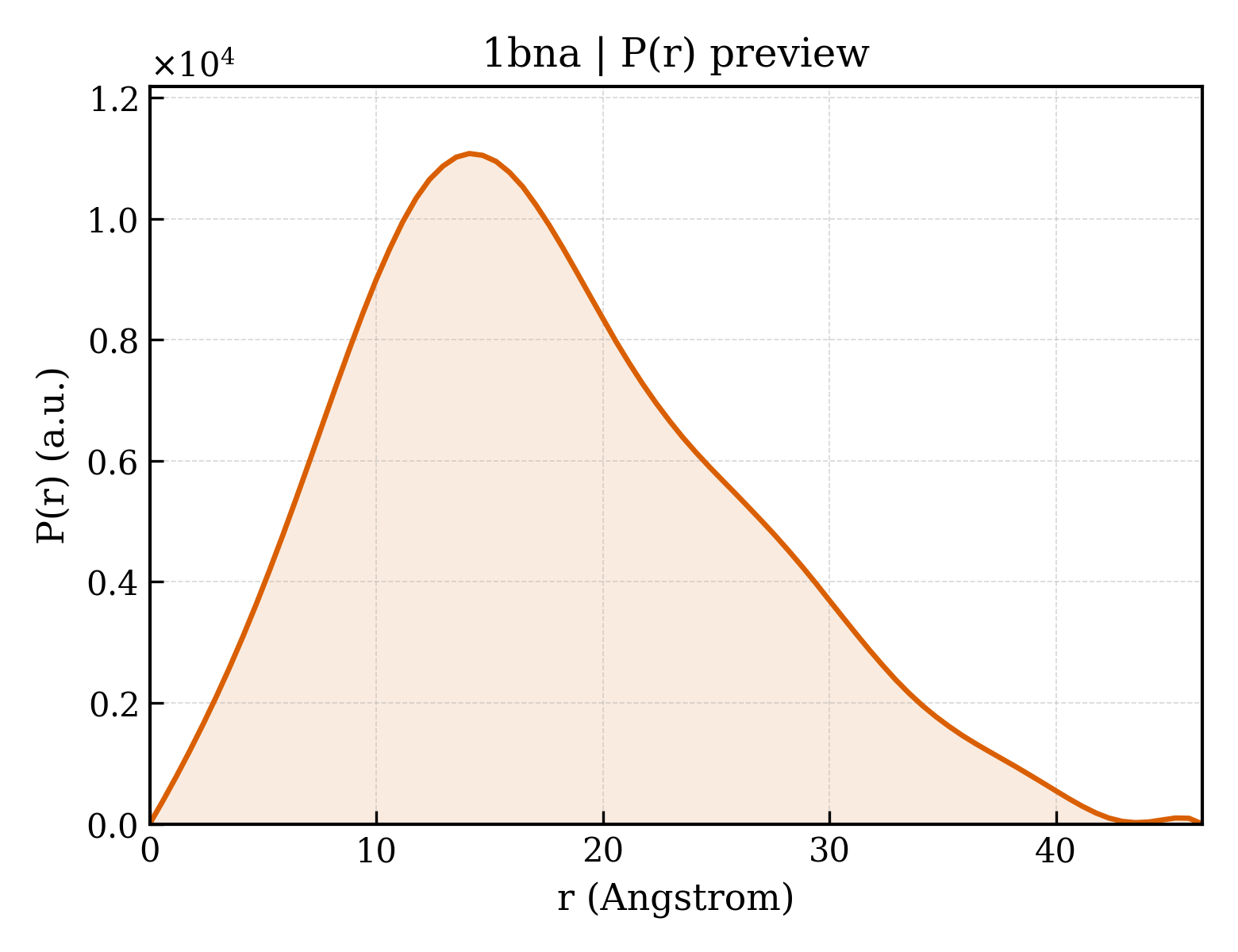

P(r) Distribution
1. Structure Basics
| entry_id | 1bna |
| deposition_date | 1981-01-26 |
| title | STRUCTURE OF A B-DNA DODECAMER. CONFORMATION AND DYNAMICS |
| keywords | B-DNA, DOUBLE HELIX, DNA; DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.67 Å |
| rg_electron | 13.24 Å |
| i0 | 2780930.00 |
| molecular_weight | 7313.0 kDa |
| excluded_volume | 7070 ų |
| envelope_volume | 9782 ų |
| shell_volume | 7132 ų |
| envelope_diameter | 45.9 Å |
| shell_rg | 16.97 Å |
| envelope_rg | 13.44 Å |
| shape_rg | 13.14 Å |
| total_rg | 13.95 Å |
| total_atoms | 486 |
| n_residues | 24 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.5 Å |
| rg_real | 13.75 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.7810e+06 |
| i0_real_error | 3.0520e+04 |
| rg_reciprocal | 13.74 Å |
| i0_reciprocal | 2781000.0000 |
| total_estimate | 0.8619 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.1 Å |
| skewness | 0.463 |
| kurtosis | -0.284 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 193100.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.828; Smooth: 0.937 |
