1bre
IMMUNOGLOBULIN LIGHT CHAIN PROTEIN

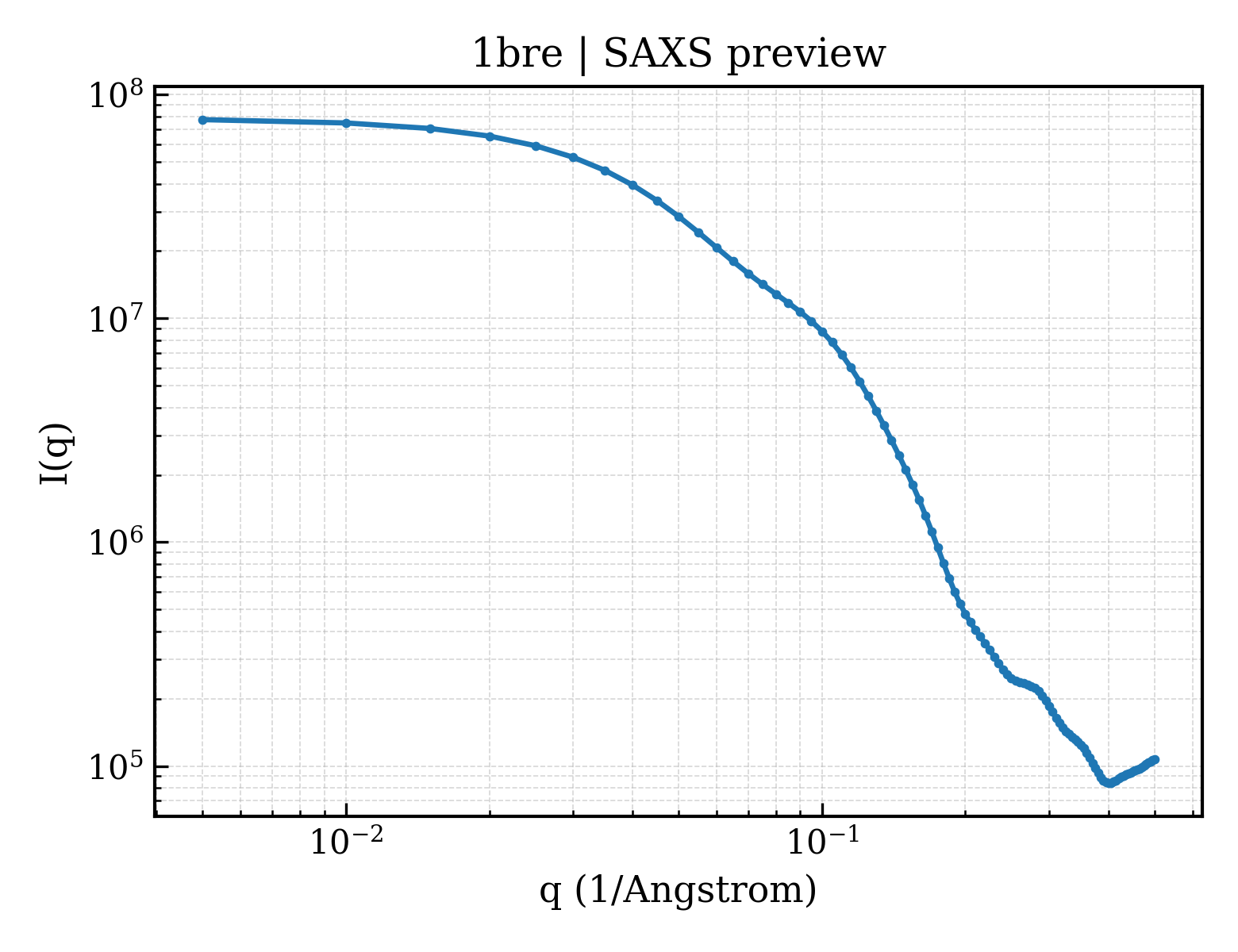

SAXS Profile

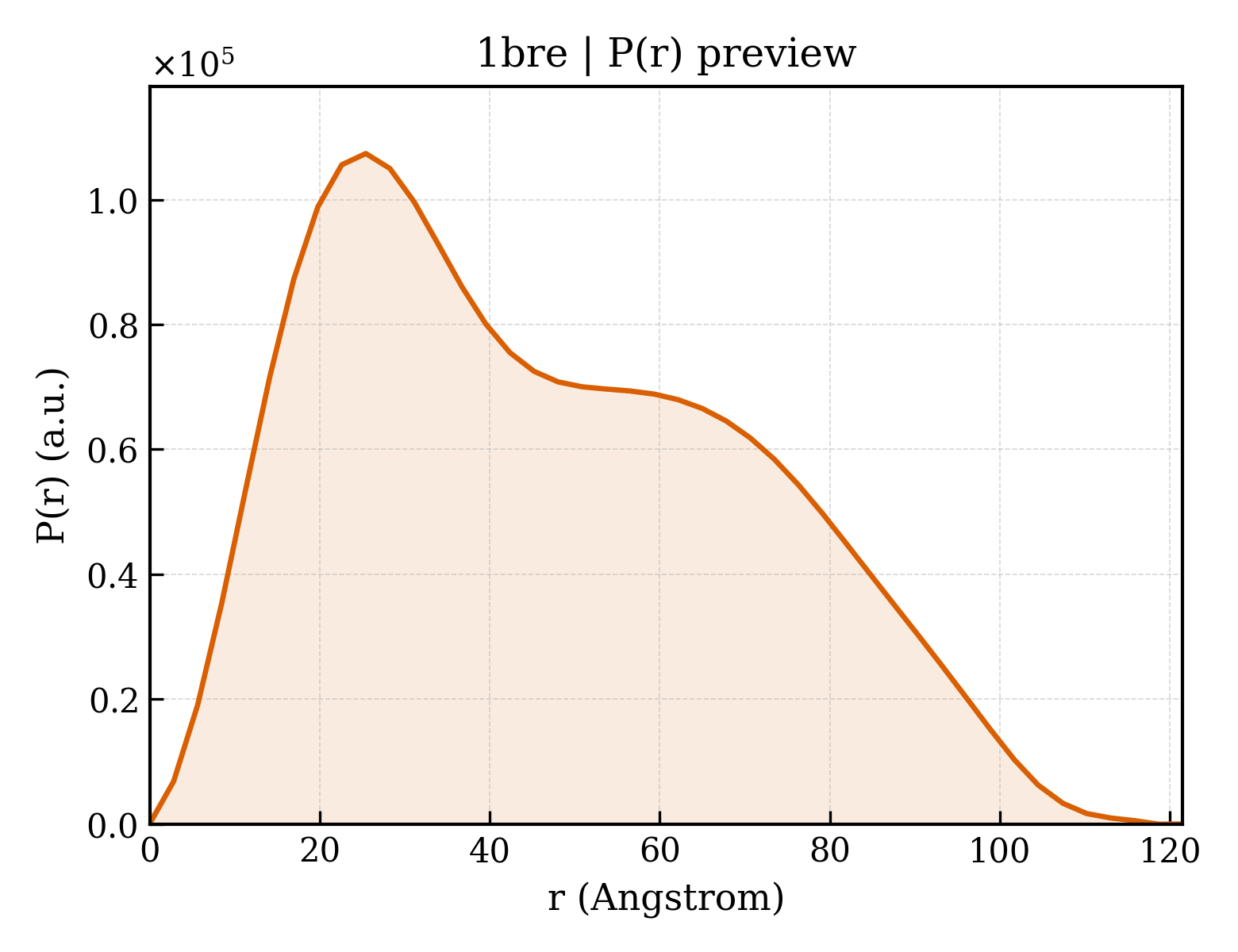

P(r) Distribution
1. Structure Basics
| entry_id | 1bre |
| deposition_date | 1995-07-19 |
| title | IMMUNOGLOBULIN LIGHT CHAIN PROTEIN |
| keywords | IMMUNOGLOBULIN; IMMUNOGLOBULIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 36.64 Å |
| rg_electron | 36.44 Å |
| i0 | 78223400.00 |
| molecular_weight | 70554.0 kDa |
| excluded_volume | 87802 ų |
| envelope_volume | 117340 ų |
| shell_volume | 28764 ų |
| envelope_diameter | 122.5 Å |
| shell_rg | 40.00 Å |
| envelope_rg | 35.52 Å |
| shape_rg | 36.46 Å |
| total_rg | 36.62 Å |
| total_atoms | 4968 |
| n_residues | 642 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 121.5 Å |
| rg_real | 37.01 Å |
| rg_real_error | 1.36 Å |
| i0_real | 7.8220e+07 |
| i0_real_error | 1.3980e+06 |
| rg_reciprocal | 36.79 Å |
| i0_reciprocal | 78210000.0000 |
| total_estimate | 0.7021 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 25.4 Å |
| skewness | 0.376 |
| kurtosis | -0.825 |
| angular_range | — – 0.2150 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8511000.0000 |
| n_real_points | 44 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.592; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.347; Smooth: 0.000 |
