1bvl

HUMANIZED ANTI-LYSOZYME FV

Method: X-RAY DIFFRACTION D_max: 87.6 Å Quality: GOOD

SAXS Profile

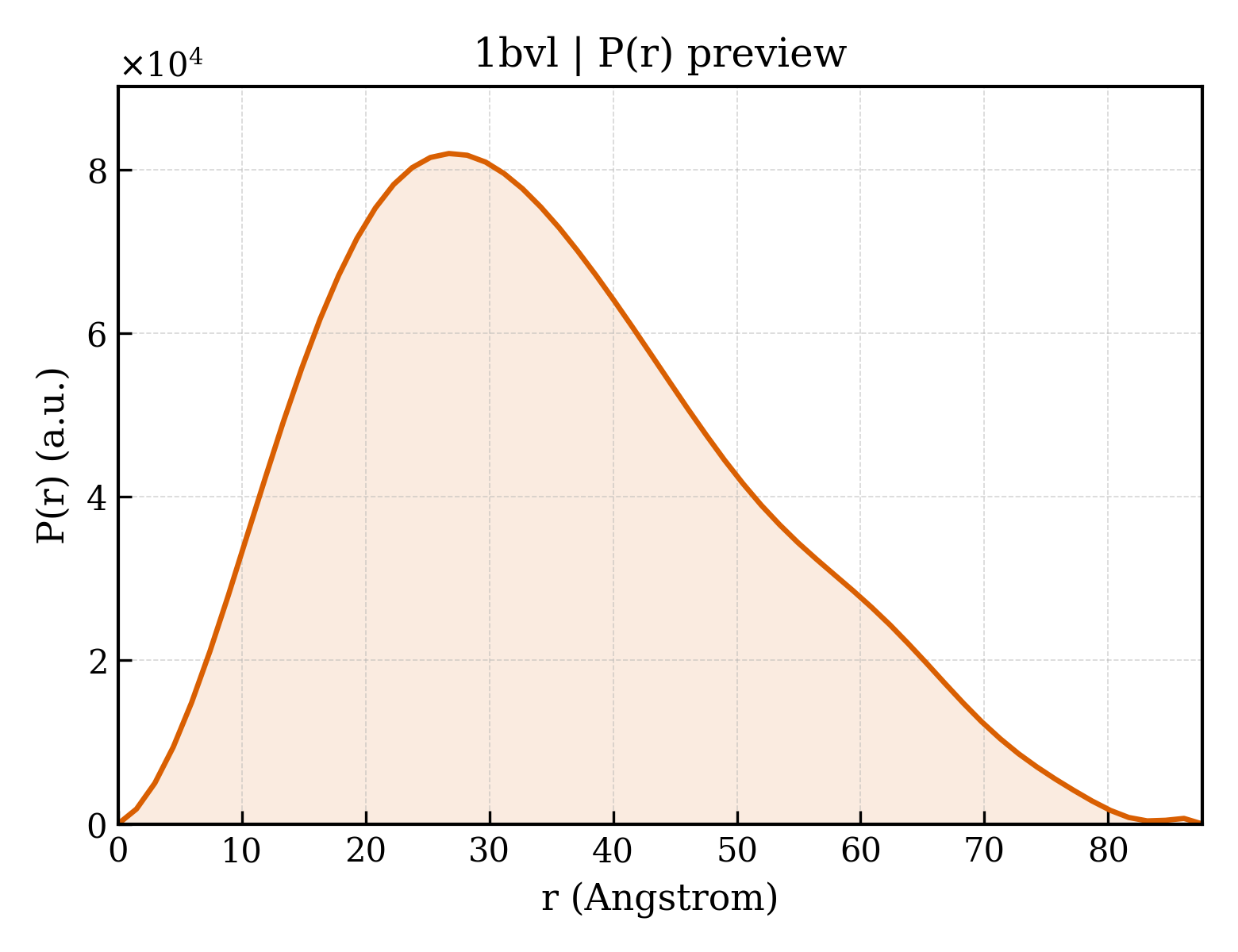

P(r) Distribution

▼

1. Structure Basics

entry_id	1bvl
deposition_date	1998-09-16
title	HUMANIZED ANTI-LYSOZYME FV
keywords	HUMANIZED ANTIBODY, FV, ANTI-LYSOZYME; HUMANIZED ANTIBODY
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	26.76 Å
rg_electron	26.13 Å
i0	42283700.00
molecular_weight	49486.0 kDa
excluded_volume	61512 Å³
envelope_volume	73523 Å³
shell_volume	24669 Å³
envelope_diameter	91.4 Å
shell_rg	32.03 Å
envelope_rg	26.10 Å
shape_rg	26.08 Å
total_rg	26.90 Å
total_atoms	3486
n_residues	448
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	87.6 Å
rg_real	26.89 Å
rg_real_error	0.63 Å
i0_real	4.2280e+07
i0_real_error	6.0690e+05
rg_reciprocal	26.86 Å
i0_reciprocal	42280000.0000
total_estimate	0.8793
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	26.7 Å
skewness	0.443
kurtosis	-0.419
angular_range	— – 0.2950 Å⁻¹
current_alpha	0.0000
highest_alpha	7676000.0000
n_real_points	60
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.880; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.862; Smooth: 0.927

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	HULYS11
formula_weight	12872.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	3486

QVQLQESGPGLVRPSQTLSLTCTVSGFSLTGYGVNWVRQPPGRGLEWIGMIWGDGNTDYNSALKSRVTMLKDTSKNQFSLRLSSVTAADTAVYYCARERDYRLDYWGQGSLVTVSSG

Source

organism	Homo sapiens, Mus musculus
common_name	human, house mouse
host_organism	Escherichia coli

Entity 2 polymer

description	HULYS11
formula_weight	11962.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

DIQMTQSPSSLSASVGDRVTITCRASGNIHNYLAWYQQKPGKAPKLLIYYTTTLADGVPSRFSGSGSGTDYTFTISSLQPEDIATYYCQHFWSTPRTFGQGTKVEIKR

Source

organism	Homo sapiens, Mus musculus
common_name	human, house mouse
host_organism	Escherichia coli

▶

6. Citations (2)

▶

length_a	143.000 Å
length_b	143.000 Å
length_c	72.900 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	2.870 Å
resolution_low	10.000 Å
r_factor	0.2200
r_work	0.2200
r_free	—
