1bw5

THE NMR SOLUTION STRUCTURE OF THE HOMEODOMAIN OF THE RAT INSULIN GENE ENHANCER PROTEIN ISL-1, 50 STRUCTURES

Method: SOLUTION NMR D_max: 36.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INSULIN GENE ENHANCER PROTEIN ISL-1

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 191–255	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 6；281 K；Ionic strength (raw mmCIF value) 50 mM NA+	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	ISL2_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–66； UniProt 191–255

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

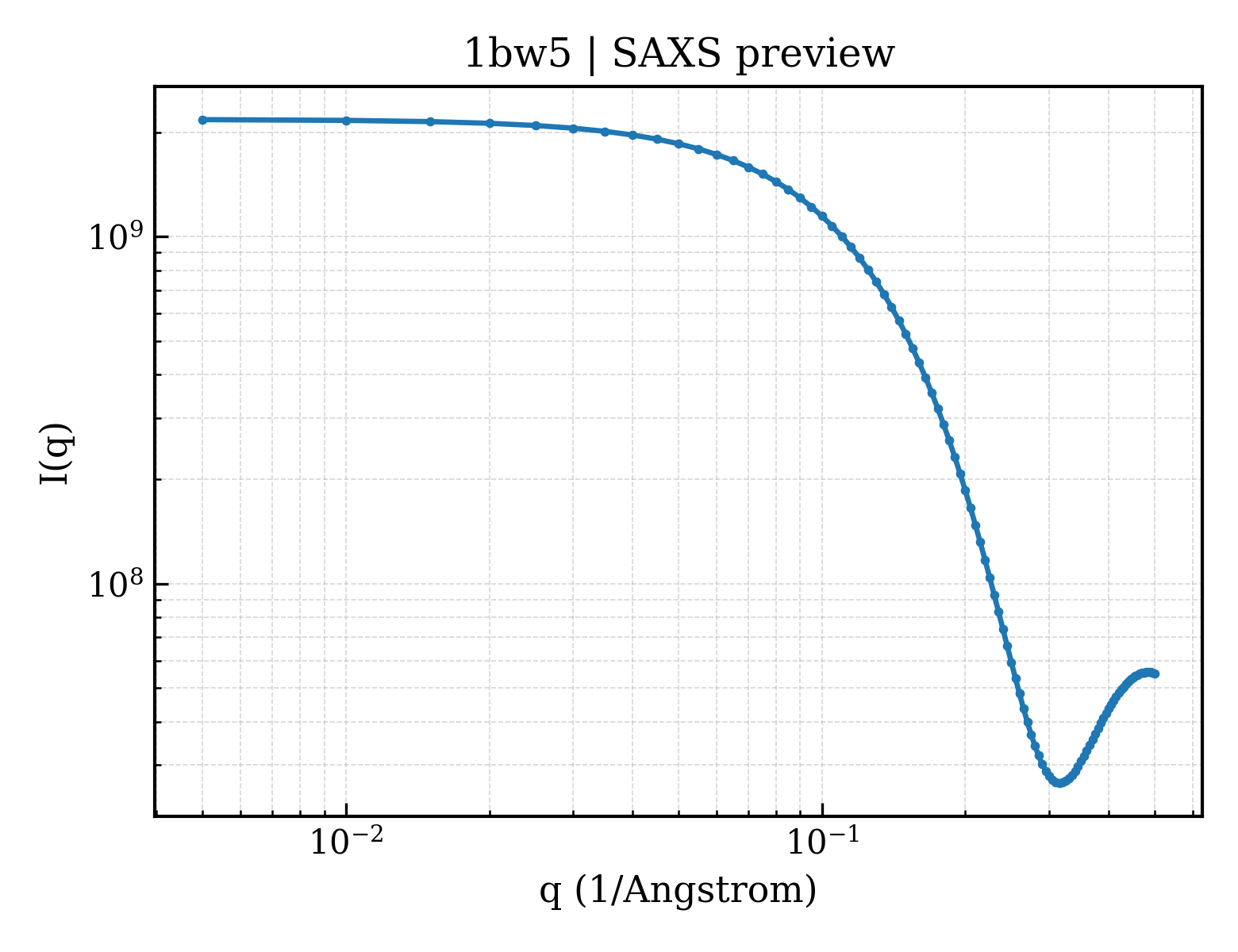

SAXS scattering curve SAXS Profile

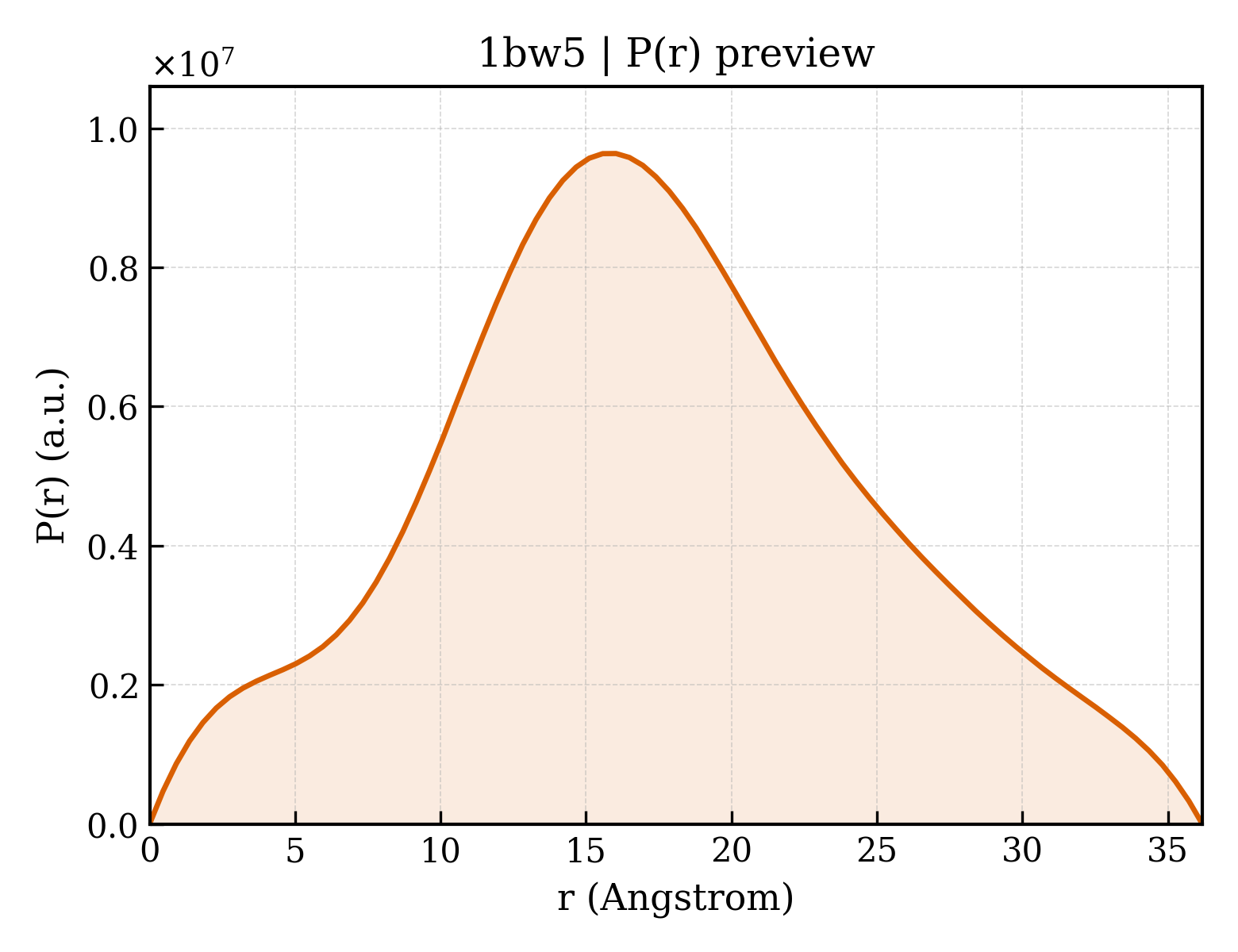

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bw5
Deposition date deposition_date	1998-09-29
Structure title title	THE NMR SOLUTION STRUCTURE OF THE HOMEODOMAIN OF THE RAT INSULIN GENE ENHANCER PROTEIN ISL-1, 50 STRUCTURES
Keywords keywords	DNA-BINDING PROTEIN, HOMEODOMAIN, LIM DOMAIN, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.91 Å
Radius of gyration Rg (electron density) rg_electron	13.92 Å
Forward intensity I(0) i0	2177690000.00
Molecular weight molecular_weight	393530.0 kDa
Excluded volume excluded_volume	494270 Å³
Envelope volume envelope_volume	44887 Å³
Hydration-shell volume shell_volume	19327 Å³
Envelope diameter envelope_diameter	68.9 Å
Shell Rg shell_rg	26.07 Å
Envelope Rg envelope_rg	20.38 Å
Shape Rg shape_rg	13.76 Å
Total Rg total_rg	14.65 Å
Total atoms total_atoms	56800
Residues n_residues	3300
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	36.2 Å
Rg (real space) rg_real	13.28 Å
Rg uncertainty (real space) rg_real_error	0.04 Å
I(0) (real space) i0_real	2.0860e+09
I(0) uncertainty (real space) i0_real_error	1.6650e+07
Rg (reciprocal space) rg_reciprocal	13.93 Å
I(0) (reciprocal space) i0_reciprocal	2178000000.0000
Solution quality estimate total_estimate	0.6717
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	16.0 Å
Skewness Skewness skewness	0.147
Kurtosis Kurtosis kurtosis	-0.359
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	4.4750
Highest regularization parameter α highest_alpha	125100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.001; Oscil: 0.941; Stabil: 0.972; Sysdev: 0.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bw5a_
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.1 — Homeodomain-like
Family Family family	a.4.1.1 — Homeodomain

CATH v4.4 (1 domains)

Domain ID domain_id	1bw5A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	60 — Homeodomain-like

▶

8. Citations (2)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	INSULIN GENE ENHANCER PROTEIN ISL-1
Molecular weight formula_weight	7893.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	56800

fit	/app/data/saxs_computation/bw/1bw5/1bw5.fit
pddf	/app/data/pr_computation/bw/1bw5/1bw5.pr.out
profile	/app/data/saxs_computation/bw/1bw5/1bw5.dat
