1bwe

ARTIFICIAL FE8S8 FERREDOXIN: THE D13C VARIANT OF BACILLUS SCHLEGELII FE7S8 FERREDOXIN

Method: SOLUTION NMR Dmax: 32.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FERREDOXIN

Bacillus schlegelii

UniProt Q45560

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 2–78 Mutation：D13C SF4 IRON/SULFUR CLUSTER × 2 SOLUTION NMR NMR measurement conditions：pH 6.5；300 K；Ionic strength (raw mmCIF value) 20 mM；Pressure 1 Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1BWE Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BC6 7-FE FERREDOXIN FROM BACILLUS SCHLEGELII, NMR, 20 STRUCTURES Deposited 1998-05-05 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded F3S FE3-S4 CLUSTER × 1 SF4 IRON/SULFUR CLUSTER × 1 SOLUTION NMR
NMR measurement conditions pH 6.5；288 K
Resolution not provided
1BD6 7-FE FERREDOXIN FROM BACILLUS SCHLEGELII, NMR, MINIMIZED AVERAGE STRUCTURE Deposited 1998-05-06 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Not recorded F3S FE3-S4 CLUSTER × 1 SF4 IRON/SULFUR CLUSTER × 1 SOLUTION NMR
NMR measurement conditions pH 6.5；288 K
Resolution not provided
1BQX ARTIFICIAL FE8S8 FERREDOXIN: THE D13C VARIANT OF BACILLUS SCHLEGELII FE7S8 FERREDOXIN Deposited 1998-08-20 Different construct Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–77（77 aa）
Mutation：D13C SF4 IRON/SULFUR CLUSTER × 2 SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 20 mM；Pressure 1
Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FER_BACSC
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–77； UniProt 2–78

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

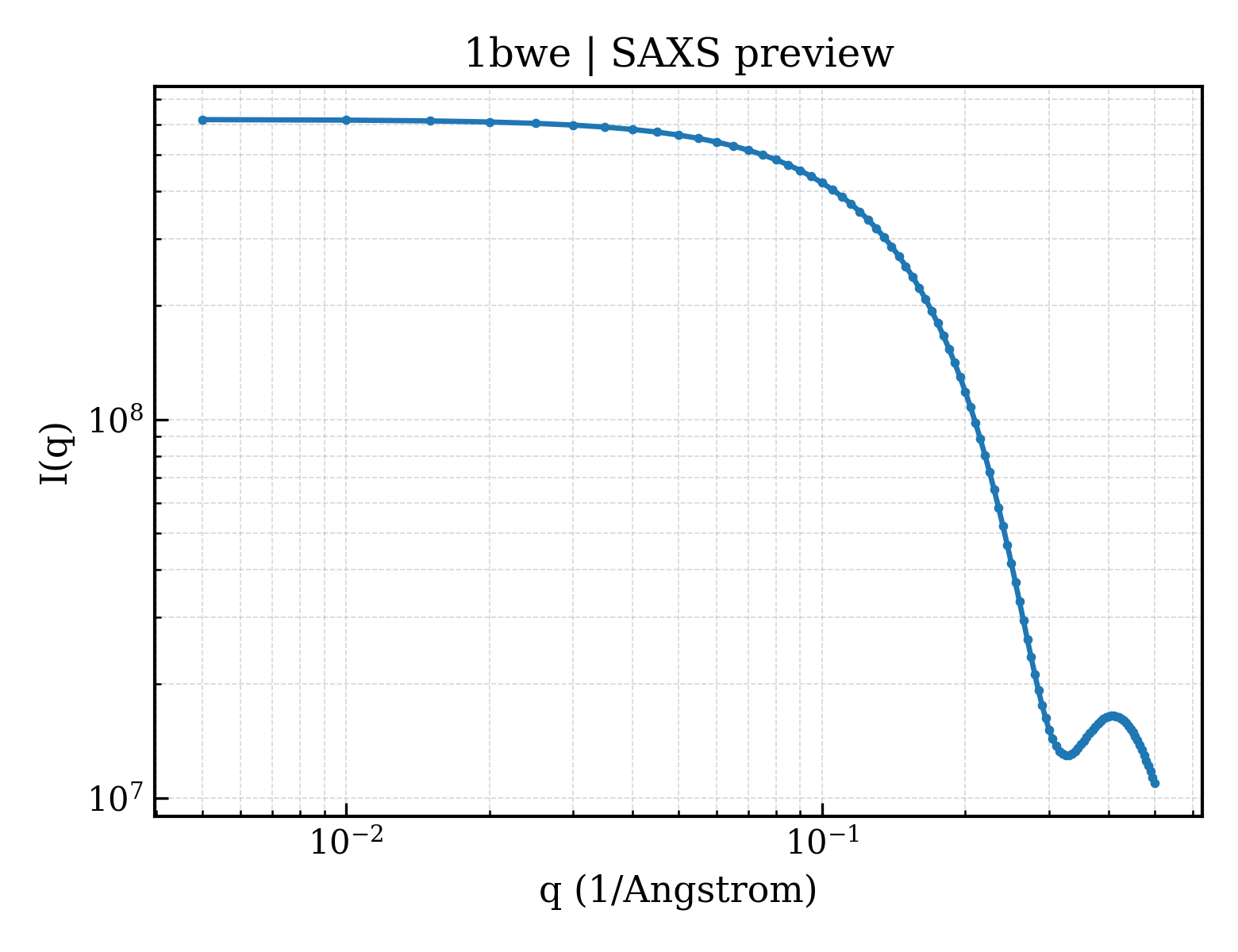

SAXS scattering curve SAXS Profile

SAXS profile for 1bwe

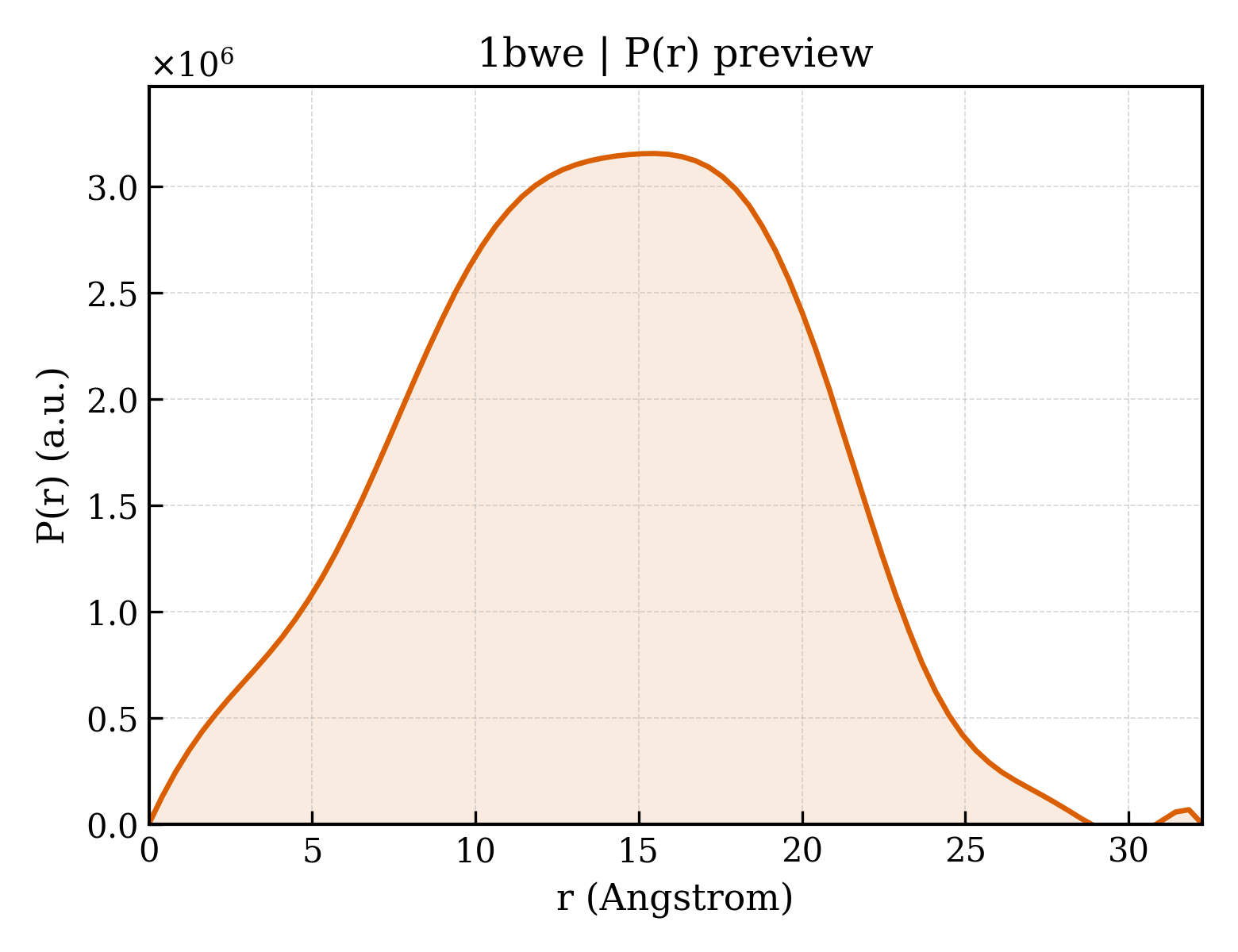

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1bwe
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1bwe
Deposition date deposition_date1998-09-23
Structure title titleARTIFICIAL FE8S8 FERREDOXIN: THE D13C VARIANT OF BACILLUS SCHLEGELII FE7S8 FERREDOXIN
Keywords keywordsIRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method methodSOLUTION NMR
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier10.72 Å
Radius of gyration Rg (electron density) rg_electron11.06 Å
Forward intensity I(0) i0619353000.00
Molecular weight molecular_weight188500.0 kDa
Excluded volume excluded_volume224210 ų
Envelope volume envelope_volume14801 ų
Hydration-shell volume shell_volume10383 ų
Envelope diameter envelope_diameter38.7 Å
Shell Rg shell_rg17.98 Å
Envelope Rg envelope_rg12.38 Å
Shape Rg shape_rg11.18 Å
Total Rg total_rg10.82 Å
Total atoms total_atoms23640
Residues n_residues1540
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax32.3 Å
Rg (real space) rg_real10.63 Å
Rg uncertainty (real space) rg_real_error0.18 Å
I(0) (real space) i0_real6.1940e+08
I(0) uncertainty (real space) i0_real_error5.6740e+06
Rg (reciprocal space) rg_reciprocal10.63 Å
I(0) (reciprocal space) i0_reciprocal619400000.0000
Solution quality estimate total_estimate0.8213
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary15.5 Å
Skewness Skewness skewness-0.098
Kurtosis Kurtosis kurtosis-0.541
Angular range angular_range— – 0.5000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha48470.0000
Real-space data points n_real_points80
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.897; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd1bwea_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.58 — Ferredoxin-like
Superfamily Superfamily superfamilyd.58.1 — 4Fe-4S ferredoxins
Family Family familyd.58.1.2 — 7-Fe ferredoxin

CATH v4.4 (1 domains)

Domain ID domain_id1bweA00
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily20 —
▶
