1byh
MOLECULAR AND ACTIVE-SITE STRUCTURE OF A BACILLUS (1-3,1-4)-BETA-GLUCANASE
SAXS Profile

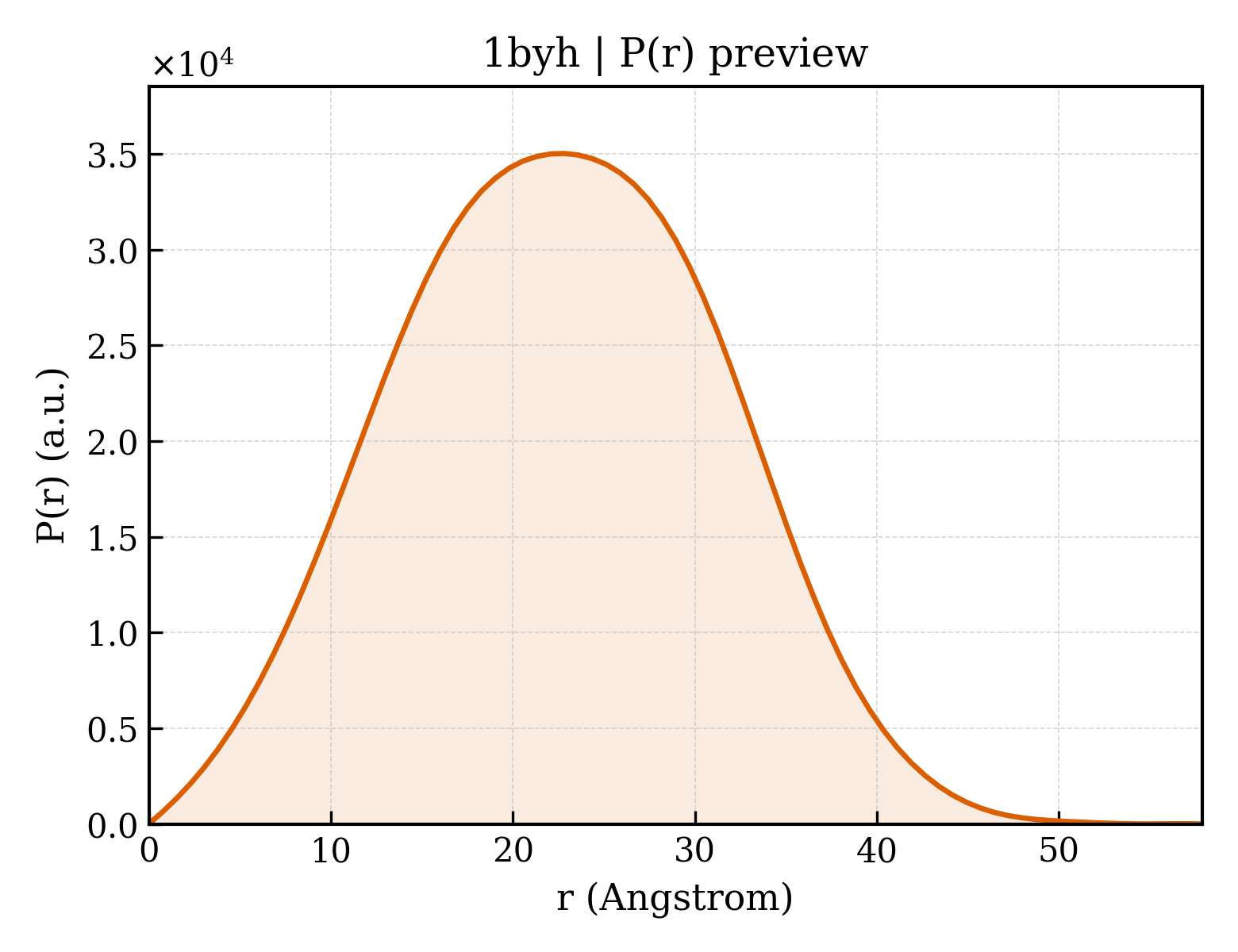

P(r) Distribution
1. Structure Basics
| entry_id | 1byh |
| deposition_date | 1992-12-31 |
| title | MOLECULAR AND ACTIVE-SITE STRUCTURE OF A BACILLUS (1-3,1-4)-BETA-GLUCANASE |
| keywords | HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.27 Å |
| rg_electron | 15.95 Å |
| i0 | 10651100.00 |
| molecular_weight | 24353.0 kDa |
| excluded_volume | 30345 ų |
| envelope_volume | 32322 ų |
| shell_volume | 16661 ų |
| envelope_diameter | 54.8 Å |
| shell_rg | 22.43 Å |
| envelope_rg | 16.21 Å |
| shape_rg | 15.93 Å |
| total_rg | 17.03 Å |
| total_atoms | 1725 |
| n_residues | 214 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.9 Å |
| rg_real | 17.12 Å |
| rg_real_error | 0.34 Å |
| i0_real | 1.0650e+07 |
| i0_real_error | 1.2430e+05 |
| rg_reciprocal | 17.14 Å |
| i0_reciprocal | 10650000.0000 |
| total_estimate | 0.8661 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.8 Å |
| skewness | 0.057 |
| kurtosis | -0.459 |
| angular_range | — – 0.4600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2733000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 1.000 |
