1byz
DESIGNED PEPTIDE ALPHA-1, P1 FORM

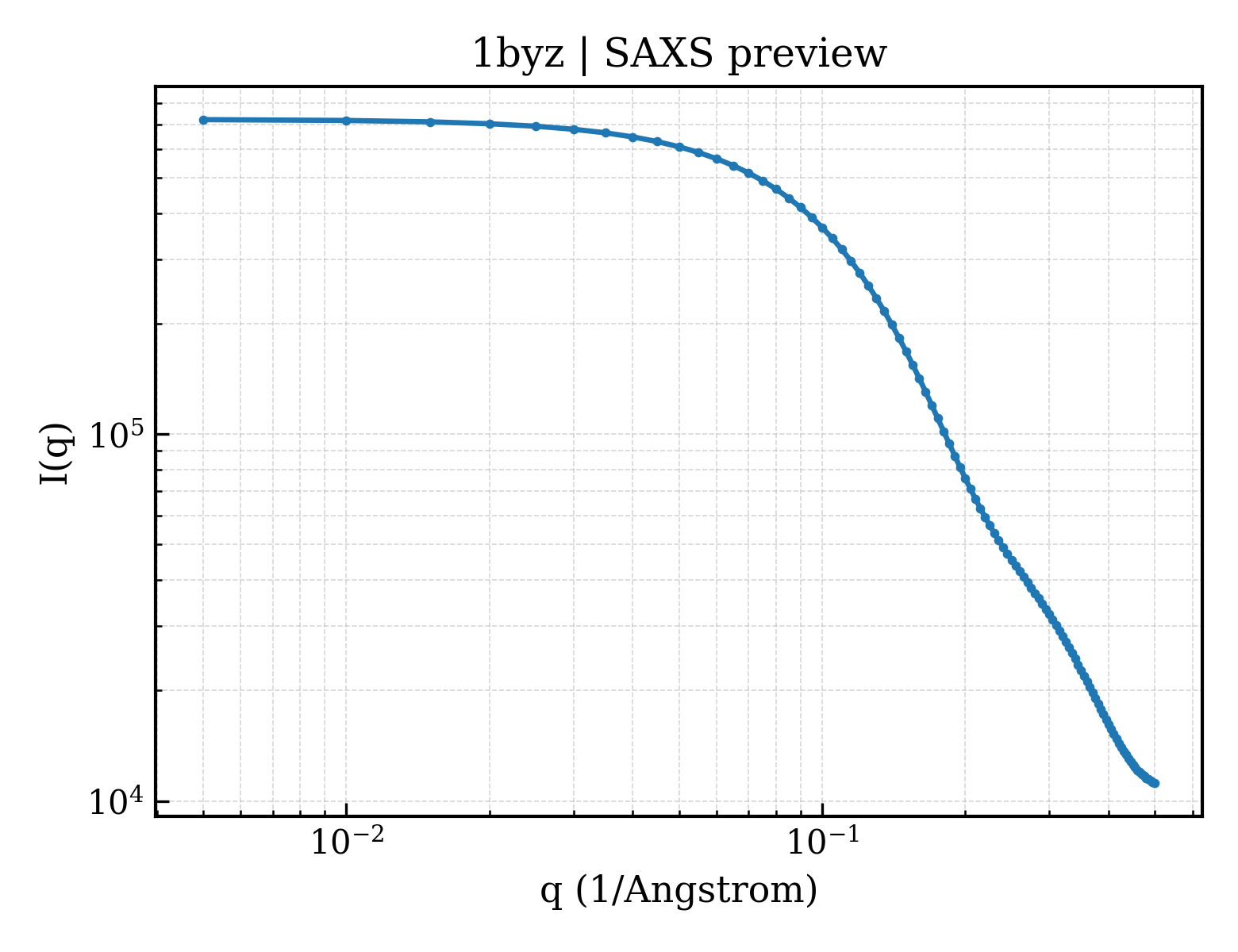

SAXS Profile

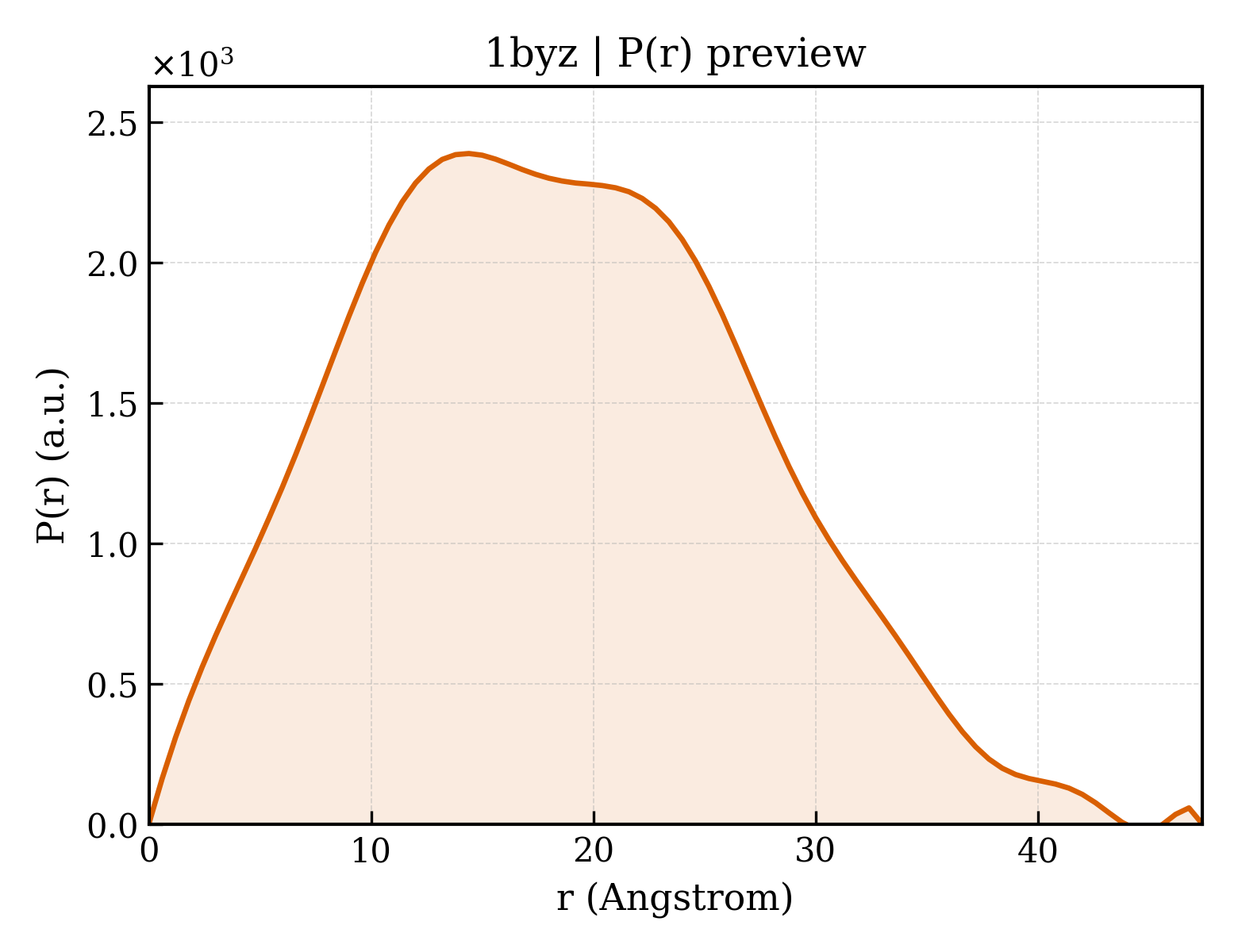

P(r) Distribution
1. Structure Basics
| entry_id | 1byz |
| deposition_date | 1998-10-20 |
| title | DESIGNED PEPTIDE ALPHA-1, P1 FORM |
| keywords | HELICAL BILAYER; BIOMATERIAL, DE NOVO PROTEIN; DE NOVO PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 14.35 Å |
| rg_electron | 12.66 Å |
| i0 | 721882.00 |
| molecular_weight | 6453.0 kDa |
| excluded_volume | 8695 ų |
| envelope_volume | 10278 ų |
| shell_volume | 7566 ų |
| envelope_diameter | 46.7 Å |
| shell_rg | 16.95 Å |
| envelope_rg | 13.08 Å |
| shape_rg | 12.59 Å |
| total_rg | 14.32 Å |
| total_atoms | 993 |
| n_residues | 48 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.4 Å |
| rg_real | 14.38 Å |
| rg_real_error | 0.39 Å |
| i0_real | 7.2190e+05 |
| i0_real_error | 9.0950e+03 |
| rg_reciprocal | 14.38 Å |
| i0_reciprocal | 721900.0000 |
| total_estimate | 0.8187 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 14.4 Å |
| skewness | 0.257 |
| kurtosis | -0.469 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 69740.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.921; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.879; Smooth: 0.000 |
