1bz3
STABILIZATION OF THE ANTICODON STEM-LOOP OF TRNALYS,3 BY AN A+C BASE PAIR AND BY PSEUDOURIDINE, NMR, 1 STRUCTURE
SAXS Profile

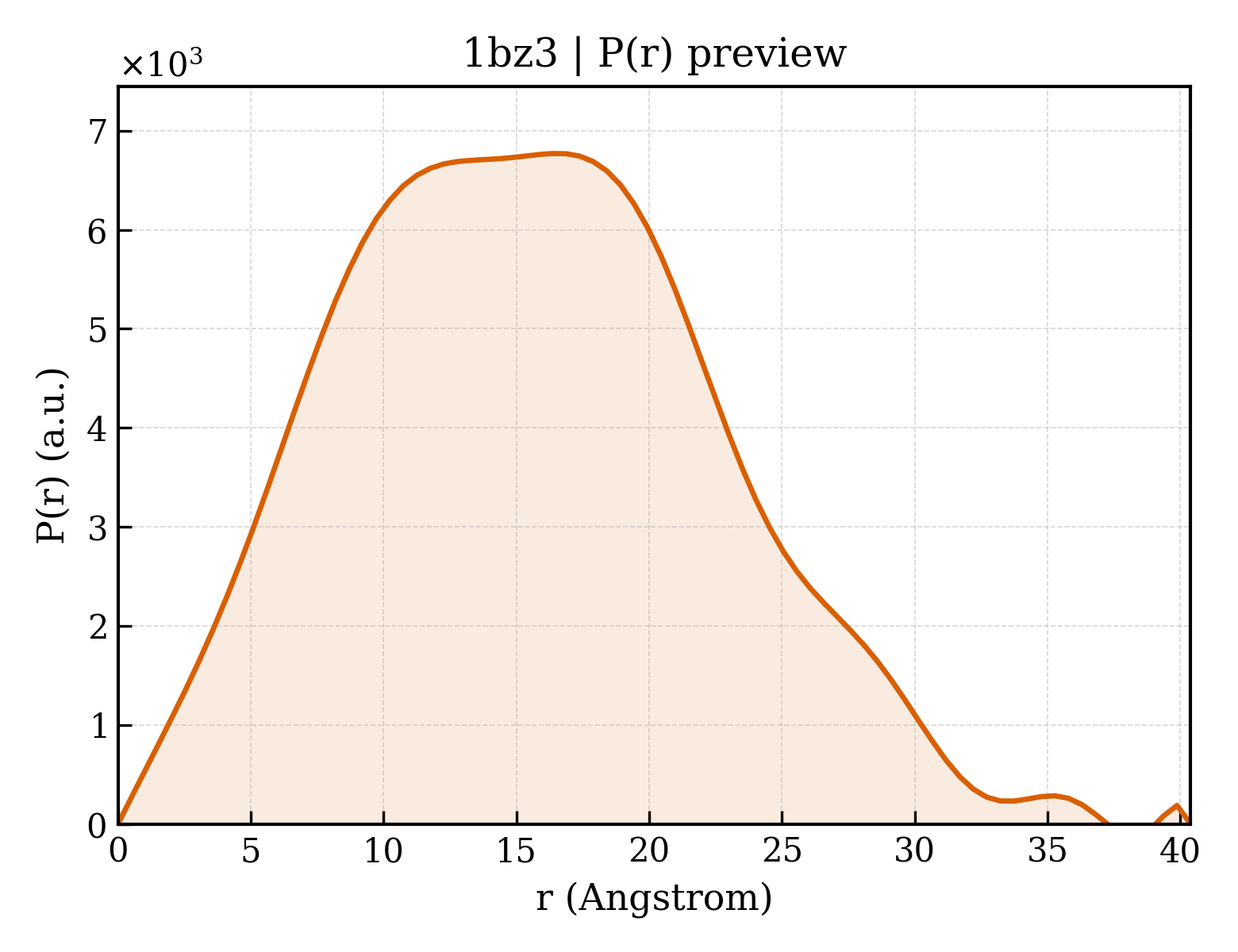

P(r) Distribution
1. Structure Basics
| entry_id | 1bz3 |
| deposition_date | 1998-11-05 |
| title | STABILIZATION OF THE ANTICODON STEM-LOOP OF TRNALYS,3 BY AN A+C BASE PAIR AND BY PSEUDOURIDINE, NMR, 1 STRUCTURE |
| keywords | TRNA, PSEUDOURIDINE, ANTICODON, RNA; RNA |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.01 Å |
| rg_electron | 11.33 Å |
| i0 | 1642420.00 |
| molecular_weight | 5348.0 kDa |
| excluded_volume | 5057 ų |
| envelope_volume | 7014 ų |
| shell_volume | 5887 ų |
| envelope_diameter | 40.4 Å |
| shell_rg | 15.68 Å |
| envelope_rg | 11.47 Å |
| shape_rg | 11.20 Å |
| total_rg | 12.26 Å |
| total_atoms | 536 |
| n_residues | 17 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 40.4 Å |
| rg_real | 12.01 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.6420e+06 |
| i0_real_error | 1.6660e+04 |
| rg_reciprocal | 12.01 Å |
| i0_reciprocal | 1642000.0000 |
| total_estimate | 0.8049 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 16.4 Å |
| skewness | 0.265 |
| kurtosis | -0.375 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 63380.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.848; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.924; Smooth: 0.000 |
