1c0r
COMPLEX OF VANCOMYCIN WITH D-LACTIC ACID

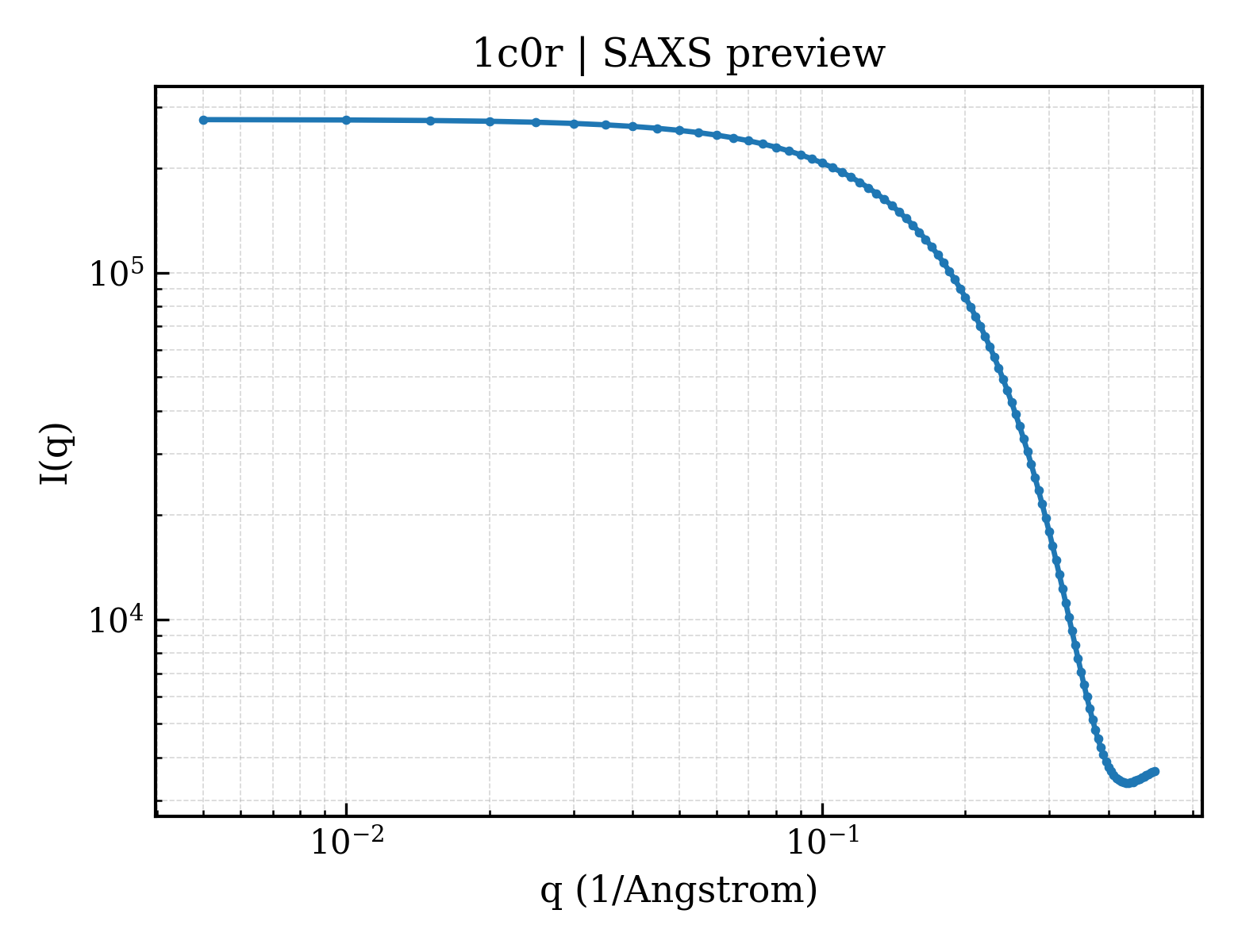

SAXS Profile

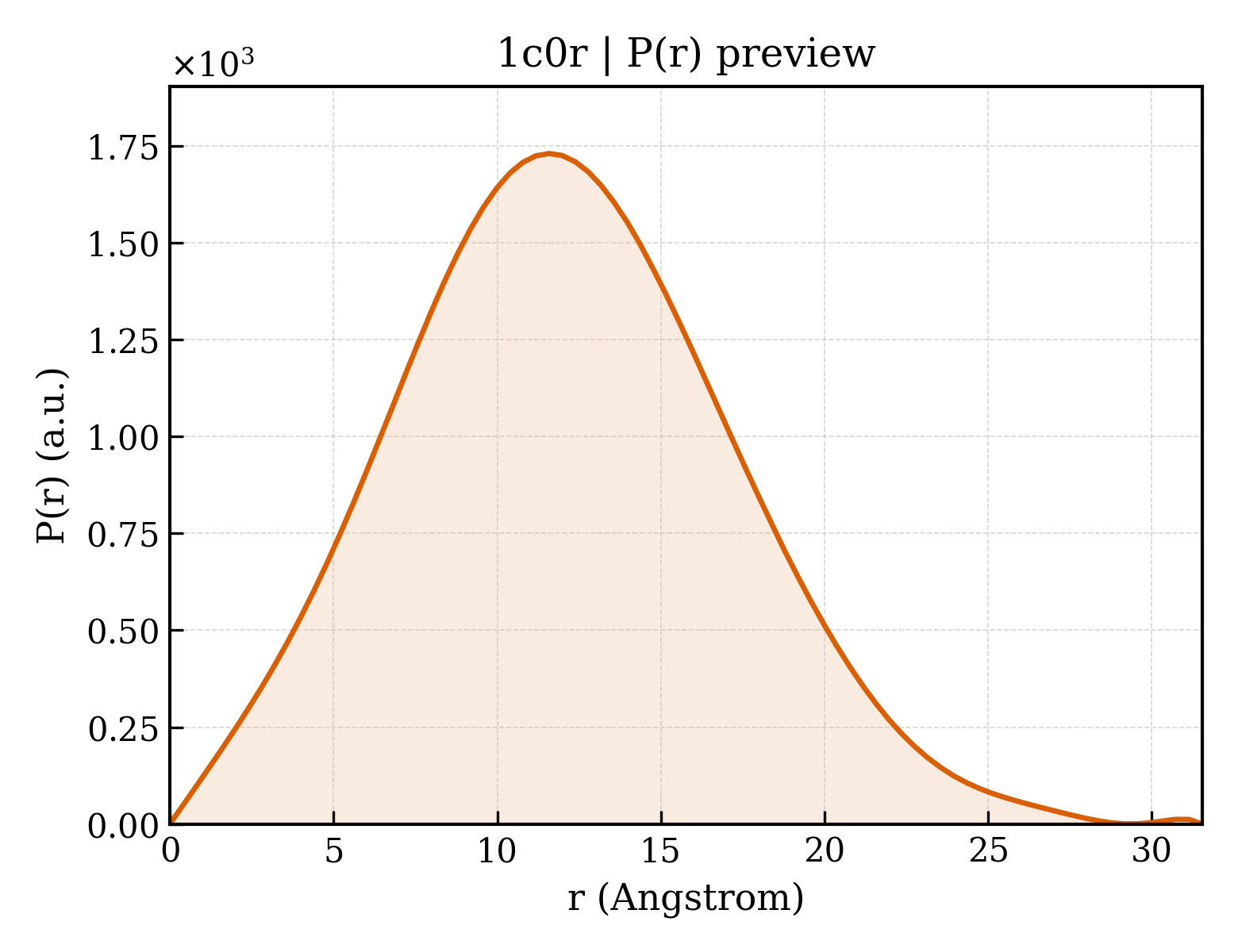

P(r) Distribution
1. Structure Basics
| entry_id | 1c0r |
| deposition_date | 1999-07-20 |
| title | COMPLEX OF VANCOMYCIN WITH D-LACTIC ACID |
| keywords | ANTIBIOTIC, GLYCOPEPTIDE ANTIBIOTIC; ANTIBIOTIC |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.30 Å |
| rg_electron | 8.00 Å |
| i0 | 276154.00 |
| molecular_weight | 3121.0 kDa |
| excluded_volume | 3832 ų |
| envelope_volume | 3976 ų |
| shell_volume | 4632 ų |
| envelope_diameter | 28.9 Å |
| shell_rg | 12.59 Å |
| envelope_rg | 8.48 Å |
| shape_rg | 7.96 Å |
| total_rg | 9.73 Å |
| total_atoms | 211 |
| n_residues | 2 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.5 Å |
| rg_real | 9.27 Å |
| rg_real_error | 0.25 Å |
| i0_real | 2.7620e+05 |
| i0_real_error | 2.7340e+03 |
| rg_reciprocal | 9.27 Å |
| i0_reciprocal | 276200.0000 |
| total_estimate | 0.8663 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 11.6 Å |
| skewness | 0.235 |
| kurtosis | -0.173 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 82210.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.772; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.944 |
