1c1f
LIGAND-FREE CONGERIN I
SAXS Profile

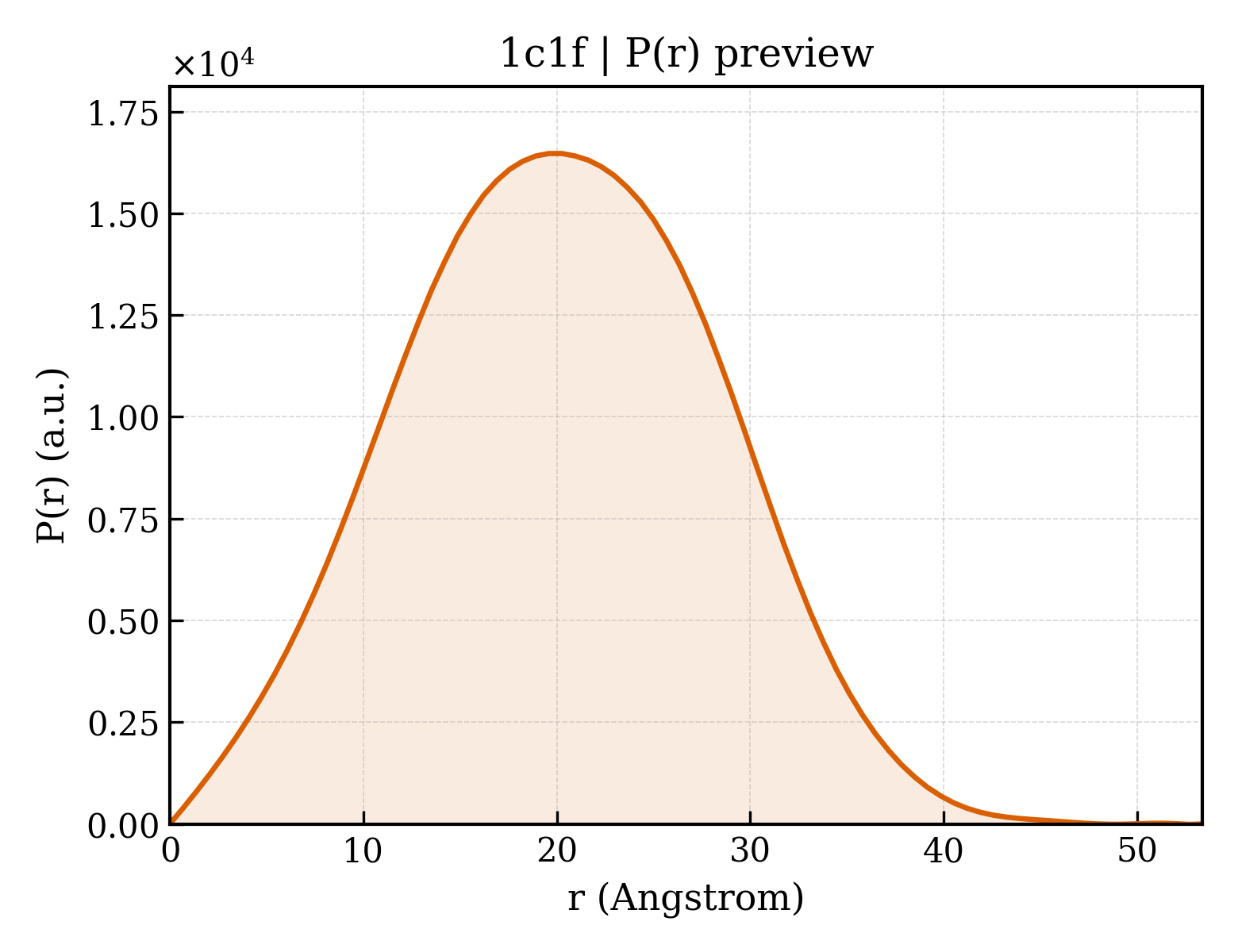

P(r) Distribution
1. Structure Basics
| entry_id | 1c1f |
| deposition_date | 1999-03-03 |
| title | LIGAND-FREE CONGERIN I |
| keywords | GALECTIN, LECTIN, BETA-GALACTOSE-BINDING, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.47 Å |
| rg_electron | 14.08 Å |
| i0 | 4488270.00 |
| molecular_weight | 15226.0 kDa |
| excluded_volume | 19074 ų |
| envelope_volume | 21233 ų |
| shell_volume | 12770 ų |
| envelope_diameter | 49.0 Å |
| shell_rg | 19.96 Å |
| envelope_rg | 14.28 Å |
| shape_rg | 14.06 Å |
| total_rg | 15.33 Å |
| total_atoms | 1078 |
| n_residues | 135 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.4 Å |
| rg_real | 15.36 Å |
| rg_real_error | 0.32 Å |
| i0_real | 4.4880e+06 |
| i0_real_error | 5.1390e+04 |
| rg_reciprocal | 15.37 Å |
| i0_reciprocal | 4488000.0000 |
| total_estimate | 0.7811 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 51.3 Å |
| skewness | 0.059 |
| kurtosis | -0.432 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 810200.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
