1c3m
CRYSTAL STRUCTURE OF HELTUBA COMPLEXED TO MAN(1-3)MAN
SAXS Profile

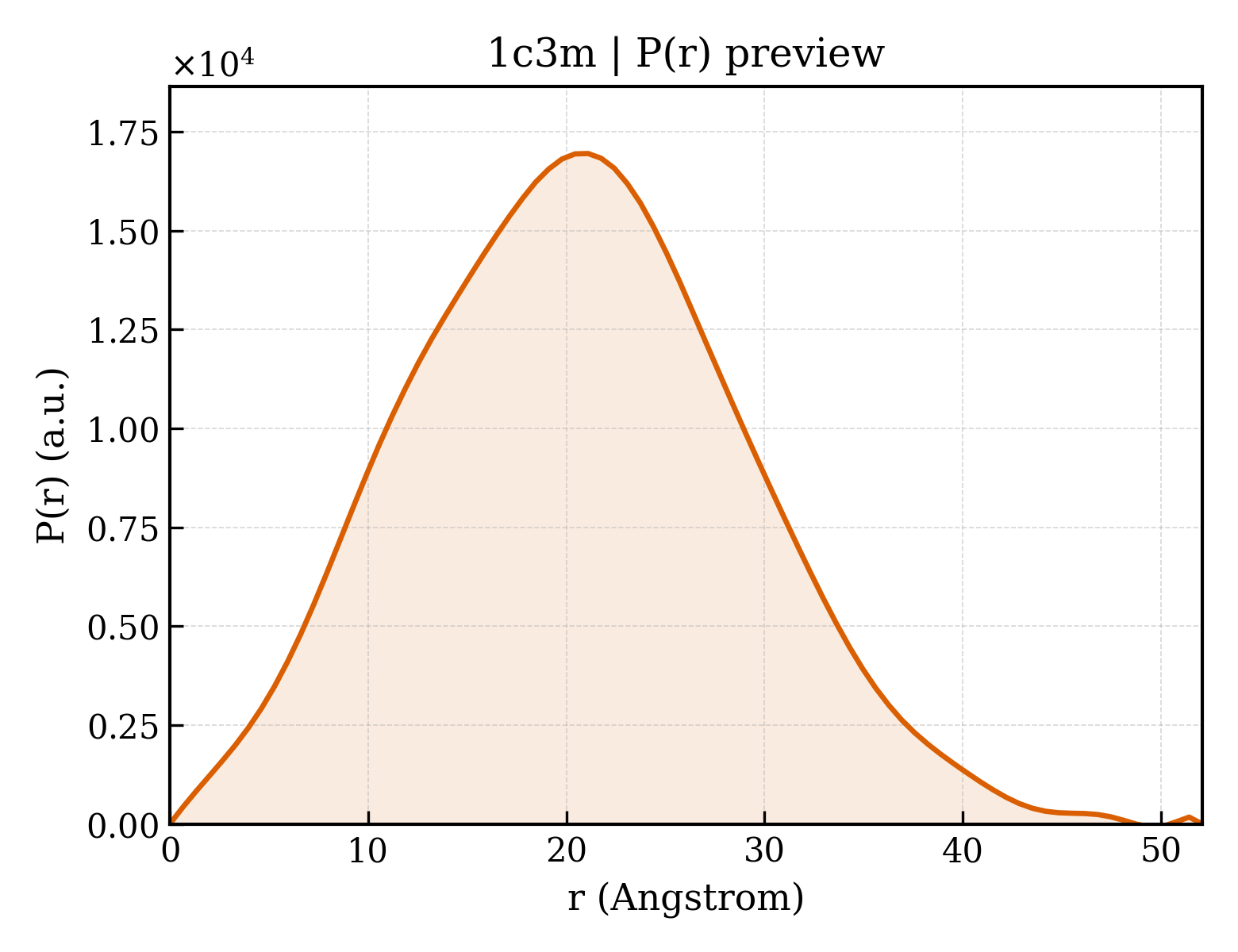

P(r) Distribution
1. Structure Basics
| entry_id | 1c3m |
| deposition_date | 1999-07-28 |
| title | CRYSTAL STRUCTURE OF HELTUBA COMPLEXED TO MAN(1-3)MAN |
| keywords | AGGLUTININ, JACALIN-RELATED, BETA-PRISM, MANNOSE, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.77 Å |
| rg_electron | 14.40 Å |
| i0 | 4518200.00 |
| molecular_weight | 15611.0 kDa |
| excluded_volume | 19717 ų |
| envelope_volume | 21769 ų |
| shell_volume | 12883 ų |
| envelope_diameter | 53.0 Å |
| shell_rg | 20.32 Å |
| envelope_rg | 14.73 Å |
| shape_rg | 14.35 Å |
| total_rg | 15.73 Å |
| total_atoms | 1104 |
| n_residues | 145 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.1 Å |
| rg_real | 15.68 Å |
| rg_real_error | 0.31 Å |
| i0_real | 4.5180e+06 |
| i0_real_error | 5.1140e+04 |
| rg_reciprocal | 15.69 Å |
| i0_reciprocal | 4518000.0000 |
| total_estimate | 0.7985 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 21.1 Å |
| skewness | 0.188 |
| kurtosis | -0.245 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 848800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.793; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
