SAXSdb — 1c3v

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDRODIPICOLINATE REDUCTASE

Mycobacterium tuberculosis

UniProt P72024

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–245 Chain B； UniProt 1–245	Not recorded	NDP NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 PDC PYRIDINE-2,6-DICARBOXYLIC ACID × 4 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；288 K；ammonium sulfate, PEG400, HEPES, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 288.0K	Resolution 2.39 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1C3V	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1P9L Structure of M. tuberculosis dihydrodipicolinate reductase in complex with NADH and 2,6 PDC Deposited 2003-05-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–245（245 aa） Chain B 1–245（245 aa）	Not recorded	NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4 PDC PYRIDINE-2,6-DICARBOXYLIC ACID × 4 PG4 TETRAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；ammonium Sulfate, PEG 400, Hepes, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.250
1YL5 Crystal structure of Mycobacterium tuberculosis dihydrodipicolinate reductase (RV2773C) (crystal form A) Deposited 2005-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–245（244 aa） Chain B 2–245（244 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；100 mM Tris/HCl, 20 % PEG 3350, 120 mM MgCl2 , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.30 Å R-free 0.249
1YL6 crystal structure of Mycobacterium tuberculosis dihydrodipicolinate reductase (Rv2773c) (crystal form B) Deposited 2005-01-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–245（244 aa） Chain B 2–245（244 aa）	Not recorded	MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；100 mM Tris/HCl, 24 % PEG 3350, 140 mM MgCl2, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.90 Å R-free 0.257
1YL7 the crystal structure of Mycobacterium tuberculosis dihydrodipicolinate reductase (Rv2773c) in complex with NADH (crystal form C) Deposited 2005-01-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–245（244 aa） Chain B 2–245（244 aa） Chain C 2–245（244 aa） Chain D 2–245（244 aa）	Not recorded	MG MAGNESIUM ION × 3 NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；100 mM Tris/HCl, 26 % PEG 3350, 140 mM MgCl2 + 3 mM NADH in the protein solution, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.34 Å R-free 0.238
1YL7 the crystal structure of Mycobacterium tuberculosis dihydrodipicolinate reductase (Rv2773c) in complex with NADH (crystal form C) Deposited 2005-01-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain E 2–245（244 aa） Chain F 2–245（244 aa） Chain G 2–245（244 aa） Chain H 2–245（244 aa）	Not recorded	MG MAGNESIUM ION × 3 NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；292 K；100 mM Tris/HCl, 26 % PEG 3350, 140 mM MgCl2 + 3 mM NADH in the protein solution, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.34 Å R-free 0.238

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DAPB_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–245； UniProt 1–245 Author chain B； PDBConstruct 1–245； UniProt 1–245

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c3v
Deposition date deposition_date	1999-07-28
Structure title title	DIHYDRODIPICOLINATE REDUCTASE FROM MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND PDC
Keywords keywords	;TWO-DOMAIN STRUCTURE, TB Structural Genomics Consortium, TBSGC, Structural Genomics, PSI, Protein Structure Initiative, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.49 Å
Radius of gyration Rg (electron density) rg_electron	26.79 Å
Forward intensity I(0) i0	48928700.00
Molecular weight molecular_weight	53353.0 kDa
Excluded volume excluded_volume	66469 Å³
Envelope volume envelope_volume	81729 Å³
Hydration-shell volume shell_volume	26816 Å³
Envelope diameter envelope_diameter	97.3 Å
Shell Rg shell_rg	32.53 Å
Envelope Rg envelope_rg	26.78 Å
Shape Rg shape_rg	26.77 Å
Total Rg total_rg	27.46 Å
Total atoms total_atoms	3753
Residues n_residues	490
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.5 Å
Rg (real space) rg_real	27.67 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	4.8930e+07
I(0) uncertainty (real space) i0_real_error	8.4420e+05
Rg (reciprocal space) rg_reciprocal	27.62 Å
I(0) (reciprocal space) i0_reciprocal	48930000.0000
Solution quality estimate total_estimate	0.6653
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.1 Å
Skewness Skewness skewness	0.484
Kurtosis Kurtosis kurtosis	-0.325
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8858000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.816; Stabil: 1.000; Sysdev: 0.127; Positv: 1.000; Valcen: 0.916; Smooth: 0.899

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DIHYDRODIPICOLINATE REDUCTASE
Molecular weight formula_weight	25793.4 kDa
EC 编号 ec_number	1.3.1.26
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3778

MRVGVLGAKGKVGTTMVRAVAAADDLTLSAELDAGDPLSLLTDGNTEVVIDFTHPDVVMGNLEFLIDNGIHAVVGTTGFTAERFQQVESWLVAKPNTSVLIAPNFAIGAVLSMHFAKQAARFFDSAEVIELHHPHKADAPSGTAARTAKLIAEARKGLPPNPDATSTSLPGARGADVDGIPVHAVRLAGLVAHQEVLFGTEGETLTIRHDSLDRTSFVPGVLLAVRRIAERPGLTVGLEPLLDLH

来源 Source

来源生物 organism	Mycobacterium tuberculosis
NCBI Class编号 ncbi_taxonomy_id	1773
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	745.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	PYRIDINE-2,6-DICARBOXYLIC ACID
Molecular weight formula_weight	167.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1c3va1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1c3va2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

Domain ID domain_id	d1c3vb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1c3vb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.3 — Dihydrodipicolinate reductase-like

CATH v4.4 (4 domains)

Domain ID domain_id	1c3vA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1c3vA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1c3vB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1c3vB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	118.831 Å
Unit-cell length b length_b	118.257 Å
Unit-cell length c length_c	79.377 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	2.390 Å
Low-resolution limit resolution_low	30.400 Å
R factor r_factor	0.1970
R_work r_work	0.1930
R_free r_free	0.2430

fit	/app/data/saxs_computation/c3/1c3v/1c3v.fit
pddf	/app/data/pr_computation/c3/1c3v/1c3v.pr.out
profile	/app/data/saxs_computation/c3/1c3v/1c3v.dat

DIHYDRODIPICOLINATE REDUCTASE FROM MYCOBACTERIUM TUBERCULOSIS COMPLEXED WITH NADPH AND PDC

1. Protein Identity and Related Structures Protein Identity & Related Structures

DIHYDRODIPICOLINATE REDUCTASE

State in the Current Structure

Other States of the Same Protein in the Database

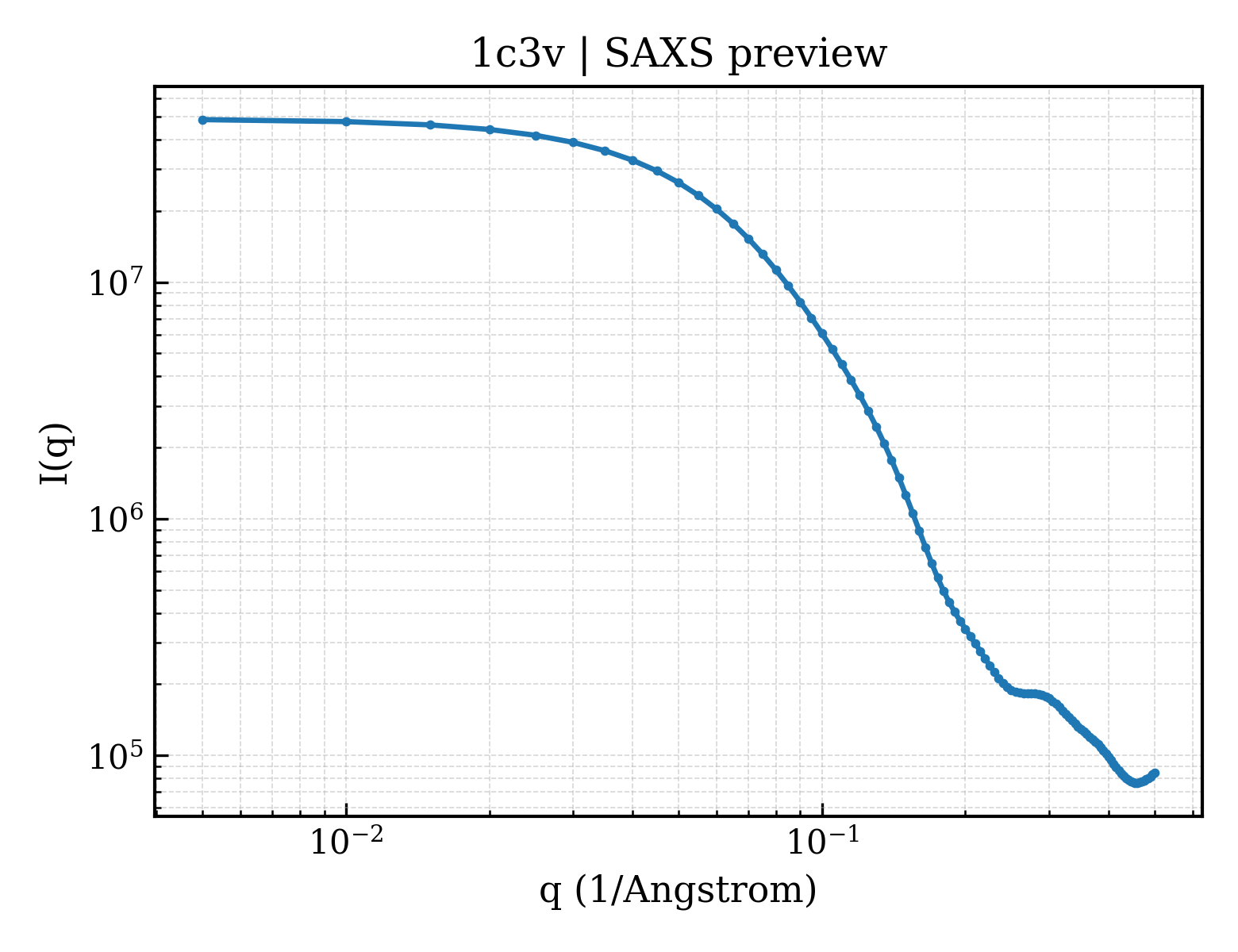

SAXS scattering curve SAXS Profile

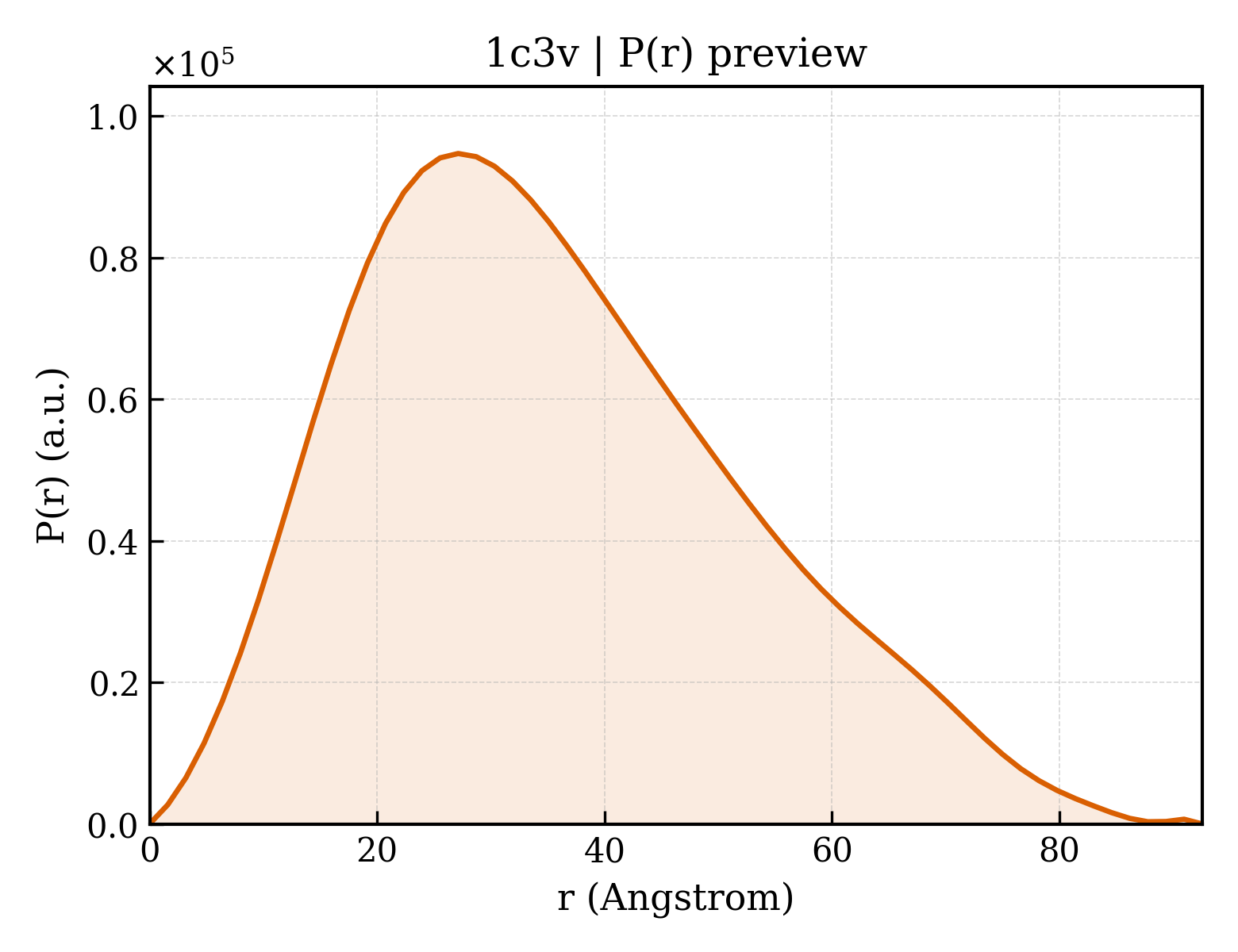

P(r) Distance Distribution P(r) Distribution
