1c4b
A BETA-HAIRPIN MIMIC FROM FCERI-ALPHA-CYCLO(RD-262)

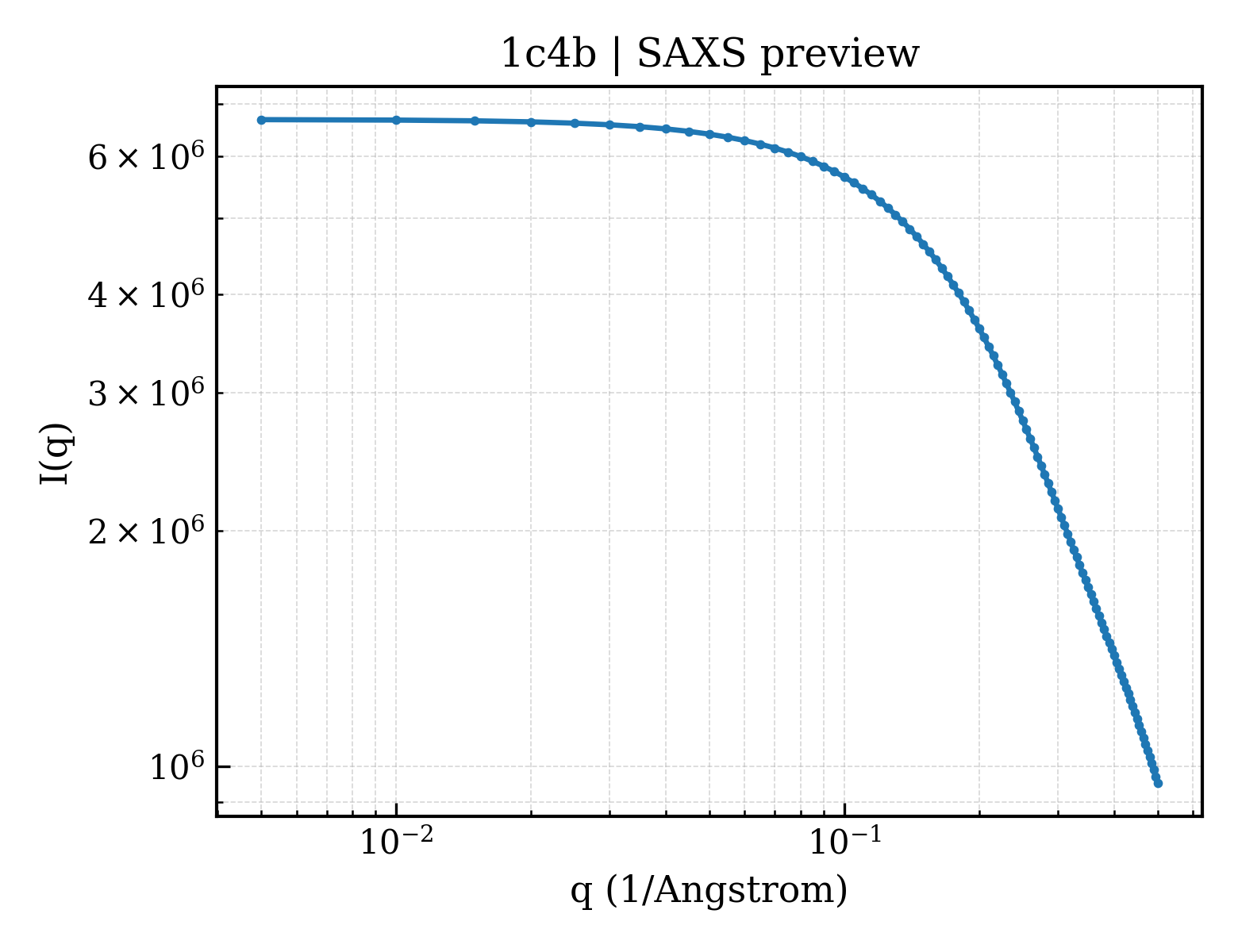

SAXS Profile

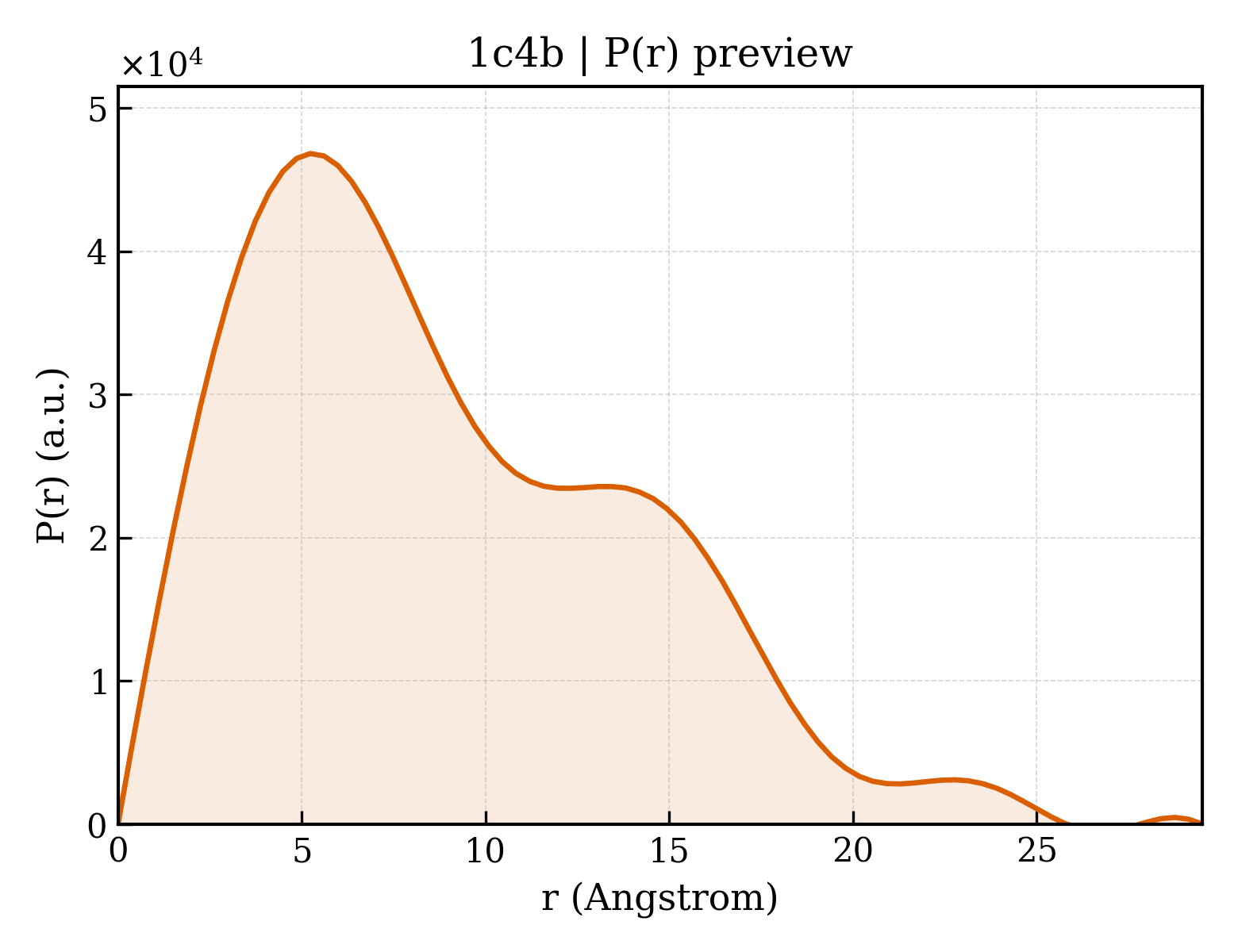

P(r) Distribution
1. Structure Basics
| entry_id | 1c4b |
| deposition_date | 1999-08-02 |
| title | A BETA-HAIRPIN MIMIC FROM FCERI-ALPHA-CYCLO(RD-262) |
| keywords | BETA-HAIRPIN, PEPTIDE MIMIC, D-AMINO ACIDS, ALLERGY, FCERI, IGE; BETA-HAIRPIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 7.01 Å |
| rg_electron | 7.07 Å |
| i0 | 6684460.00 |
| molecular_weight | 23444.0 kDa |
| excluded_volume | 30295 ų |
| envelope_volume | 3204 ų |
| shell_volume | 3979 ų |
| envelope_diameter | 29.4 Å |
| shell_rg | 12.18 Å |
| envelope_rg | 8.52 Å |
| shape_rg | 6.98 Å |
| total_rg | 7.74 Å |
| total_atoms | 3165 |
| n_residues | 30 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 29.5 Å |
| rg_real | 7.21 Å |
| rg_real_error | 0.61 Å |
| i0_real | 6.6840e+06 |
| i0_real_error | 7.7450e+04 |
| rg_reciprocal | 7.20 Å |
| i0_reciprocal | 6684000.0000 |
| total_estimate | 0.6406 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 5.2 Å |
| skewness | 0.649 |
| kurtosis | -0.206 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 688.9000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.151; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.004; Smooth: 0.883 |
